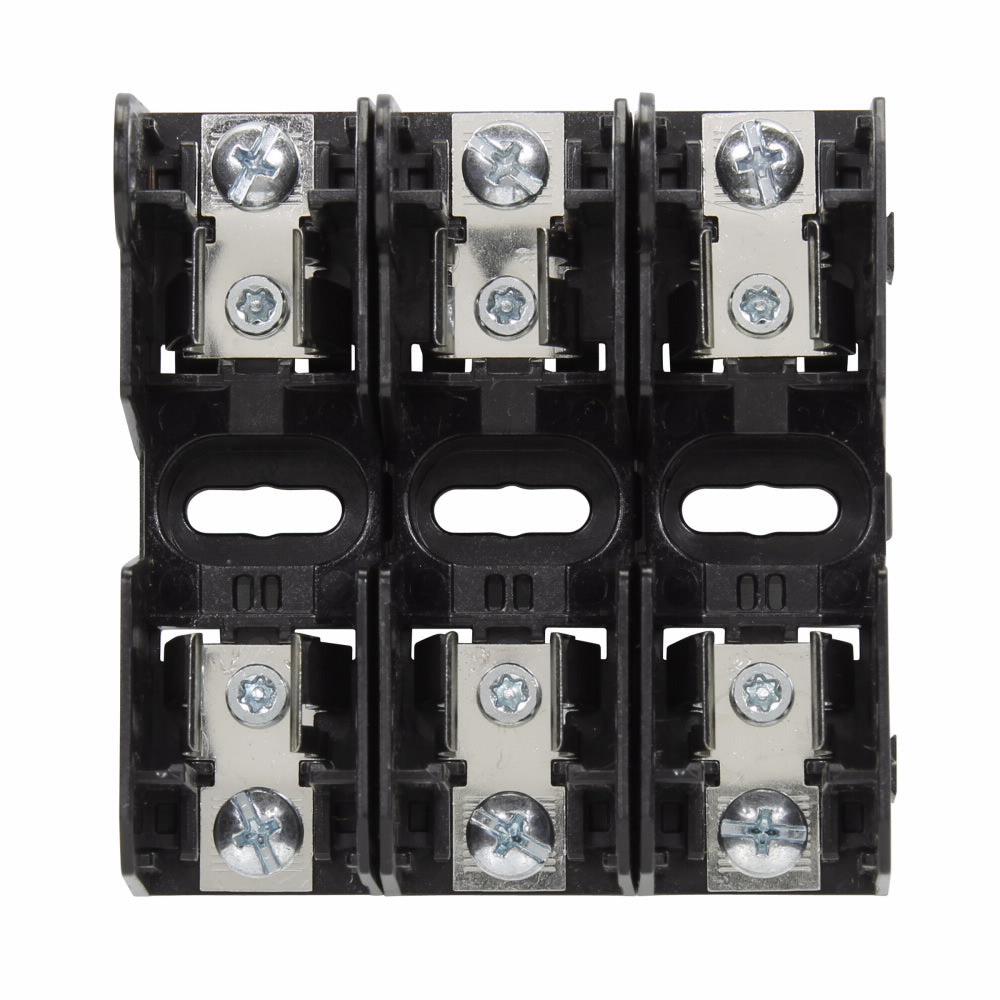

Eaton JM60030-3SR BUS CLASS J FUSE BLOCK 600V30A-SCREW-3 POLE JM60030-3SR

Product Description

The Eaton JM60030-3SR is a modular Bussmann fuse block designed for use in electrical assemblies. This fuse block operates at a voltage rating of six hundred volts and can handle up to thirty amps. It features a three-pole configuration with a Phillips slot screw connection and a temperature rating that ranges from negative forty to one hundred twenty degrees Celsius.

• Modular design for easy installation
• Three-pole configuration for versatile applications
• RoHS compliant for environmental safety

Product Highlights

This fuse block simplifies panel layout and reduces installation costs.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: JM60030-3SR

Technical Specifications

• Amperage Rating: 0 to 30 A
• Voltage Rating: 600 V
• Class: J
• Connection Type: Phillips slot screw
• Number of Poles: 3
• Material: Thermoplastic
• Series: JM Series
• Temperature Rating: -40 to 120 deg C
• Standards/Approvals: RoHS Compliant
