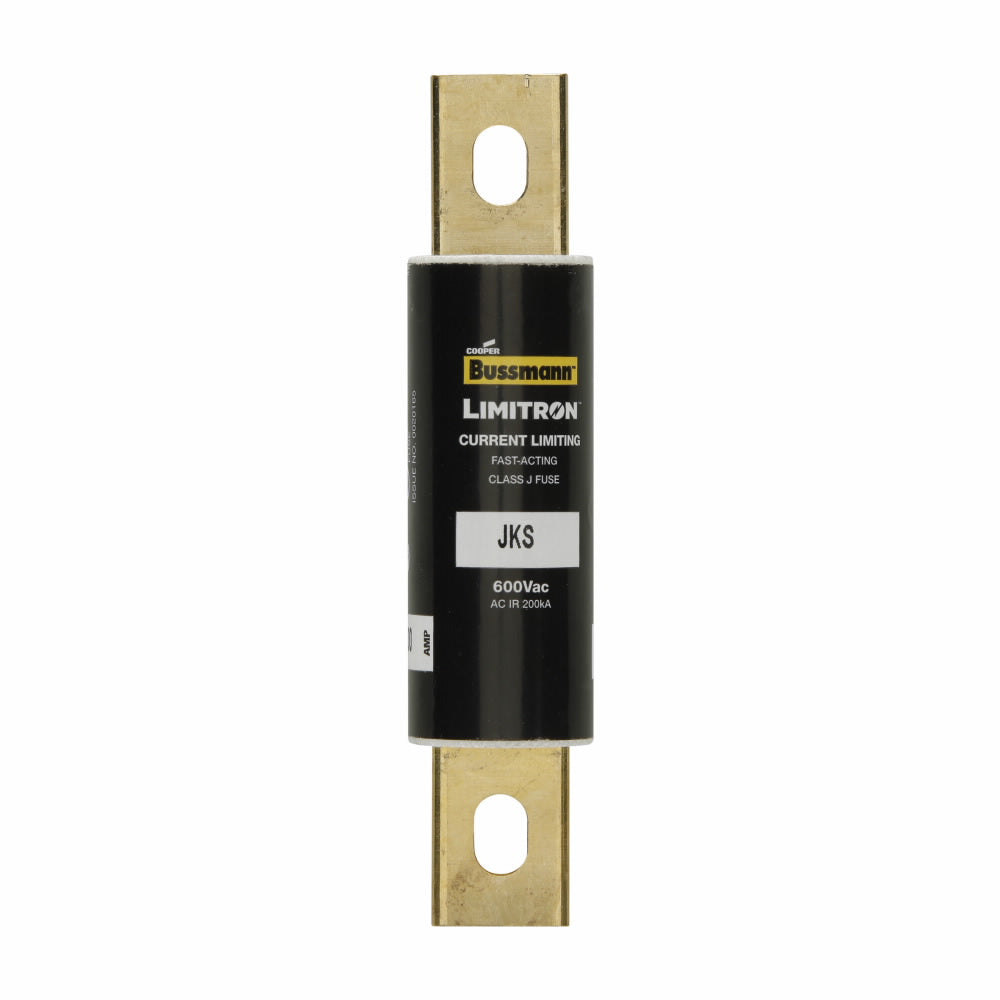

Eaton JKS-90 Current Limiting Fast Acting Fuse 90 A 600 V

Product Description

The Eaton JKS-90 is a Bussmann Limitron™ Fuse designed for fast-acting current limiting. This fuse has a rating of ninety amperes at six hundred volts, making it suitable for various industrial applications. It features a cartridge body type, designed to handle high fault levels with a high interrupting capacity of two hundred kAIC. The JKS-90 is ideal for protecting power panelboards and machinery disconnects in critical commercial settings.

• Class J fuse with a current rating of 90 A.
• 200 kAIC interrupt rating for enhanced circuit protection.
• Designed for holder mounting with bolted blade end terminals.

Product Highlights

Reliable performance in industrial facilities and factories, ensuring safety and compliance with NEC standards.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: JKS-90

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 90 A
• Body Size: 1.13 in Dia x 4.63 in L
• Body Type: Cartridge
• Class: J
• Element: Single
• Material: Melamine
• Mounting Type: Holder
• Standards/Approvals: CE Certified, CSA C22.2 File No. 53787, UL 248-8 File No. E4273 Guide JDDZ
