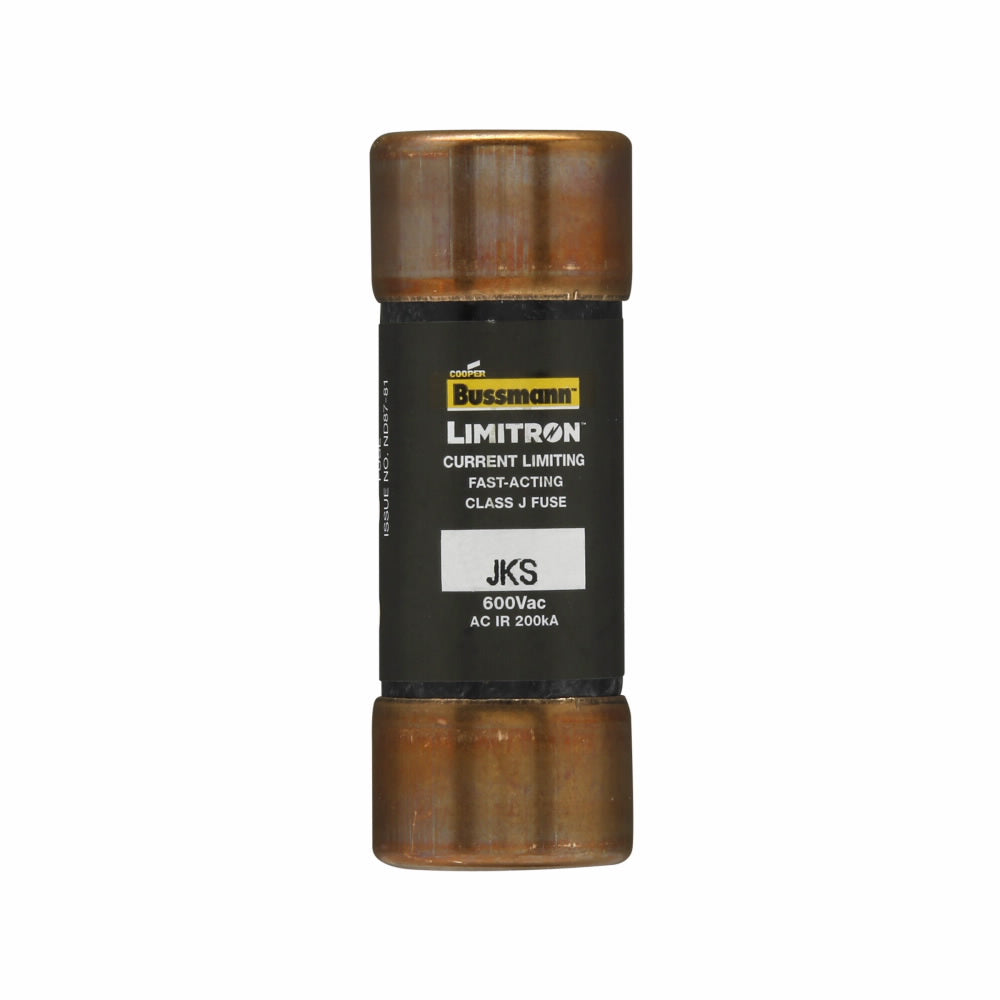

Eaton JKS-6 BUSS LIMITRON FUSE A4J6 (1)

Product Description

The Eaton JKS-6 is a Bussmann Limitron Fuse designed for current limiting fast acting applications. This fuse operates at six amperes and can handle voltages up to six hundred volts. It features a high interrupt rating of two hundred kiloamps, suitable for various industrial and commercial uses.

• Non-Indicating and Non-Rejection type
• Cylindrical body design for easy installation in holders
• Constructed with melamine for durability

Product Highlights

This fuse provides effective short circuit protection and is compliant with NEC standards. The advanced current limiting feature protects equipment from faults.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: JKS-6

Technical Specifications

• Type: Current Limiting Fast Acting
• Class: J
• Amperage Rating: 6 A
• Voltage Rating: 600 V
• Interrupting Capacity: 200 kAIC
• Body Size: 0.81 in diameter x 2.25 in length
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Standards/Approvals: CE Certified, CSA C22.2 File No. 53787, RoHS Compliant, UL 248-8 File No. E4273 Guide JDDZ
