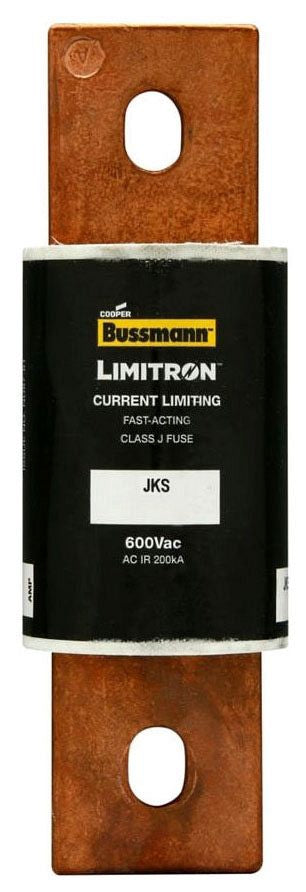

Eaton JKS-500 Buss Limitron Fast Acting Fuse 500 A 600 V

Product Description

The Eaton JKS-500 Buss Limitron Fast Acting Fuse is designed to provide reliable current limiting and protection. This fuse operates at five hundred amperes and can handle voltages up to six hundred. It features a high interrupt rating of two hundred kAIC, making it suitable for various applications.

• Current limiting fast acting fuse.
• For use in industrial facilities and power panelboards.
• Fits cartridge body type for easy installation.

Product Highlights

This fuse is capable of providing exceptional component short circuit protection, meeting NEC 110-10 standards. It limits the short circuit current to protect low interrupting capacity circuit breakers and meets the requirements for future system expansion.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171263500

Technical Specifications

• Amperage Rating: 500 A
• Voltage Rating: 600 V
• Body Size: 2-1/2 in Dia x 8 in L
• Body Type: Cartridge
• Class: J
• Element: Single
• Material: Melamine
• Terminal Type: Bolted Blade End
• Mounting Type: Holder
