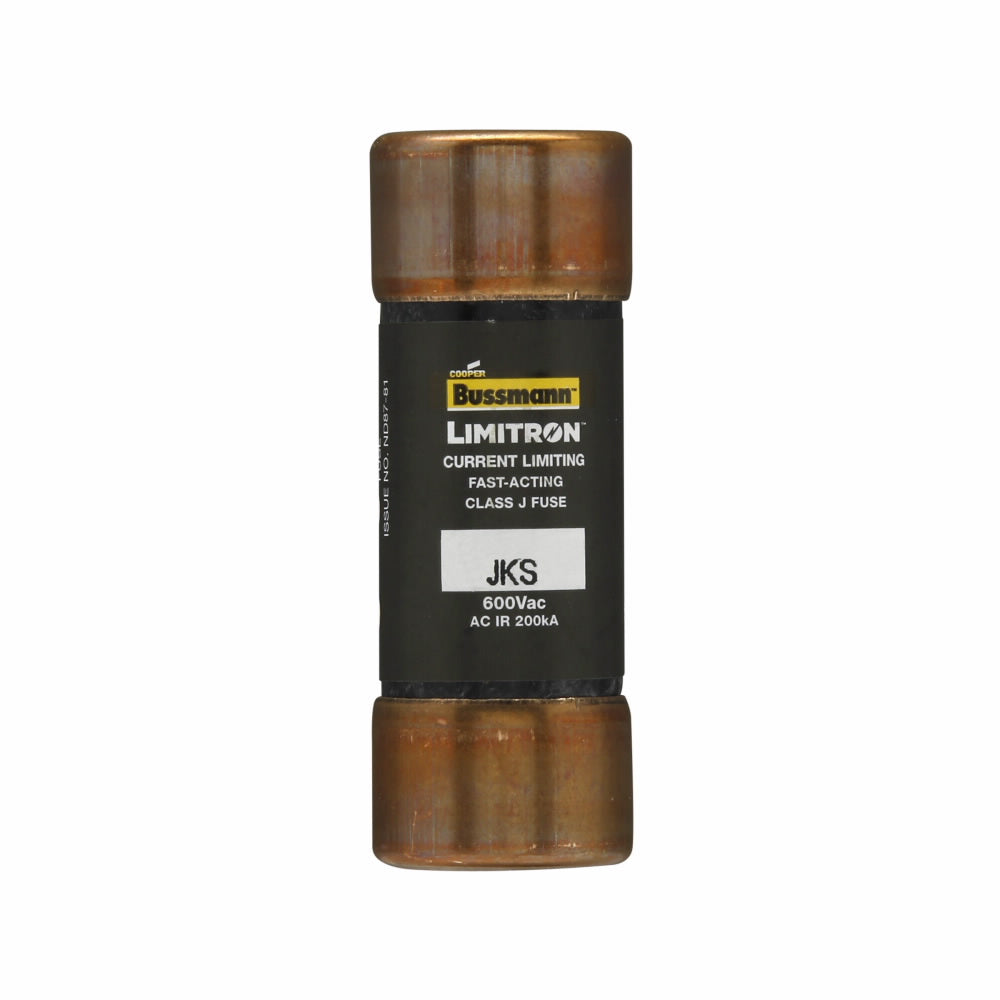

Eaton JKS-25 BUS 600V Limitron Fuse

Product Description

The Eaton JKS-25 is a current limiting fast acting fuse. This Bussmann Limitron fuse features a cylindrical body and is suitable for various electrical applications. Key specifications include a 25 amp current rating, a voltage rating of 600 volts, and a high interrupting capacity of 200 kAIC.

• Current limiting for non-inductive circuits
• 200 kA interrupt rating for high fault circuits
• Fits into holder mounts with ferrule end terminals

Product Highlights

The JKS-25 fuse provides advanced protection in electrical systems. It is well-suited for lighting circuits, heating circuits, and machinery disconnect applications.

Product Information

Standard Information

• Brand: Eaton
• MPN: JKS-25

Technical Specifications

• Amperage Rating: 25 A
• Voltage Rating: 600 V
• Body Size: 0.81 inches Diameter x 2.25 inches Length
• Body Type: Cylindrical
• Class: J
• Series: JKS
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Interrupt Rating: 200 kAIC
• Compliance: CE Certified, RoHS Compliant, UL 248-8
