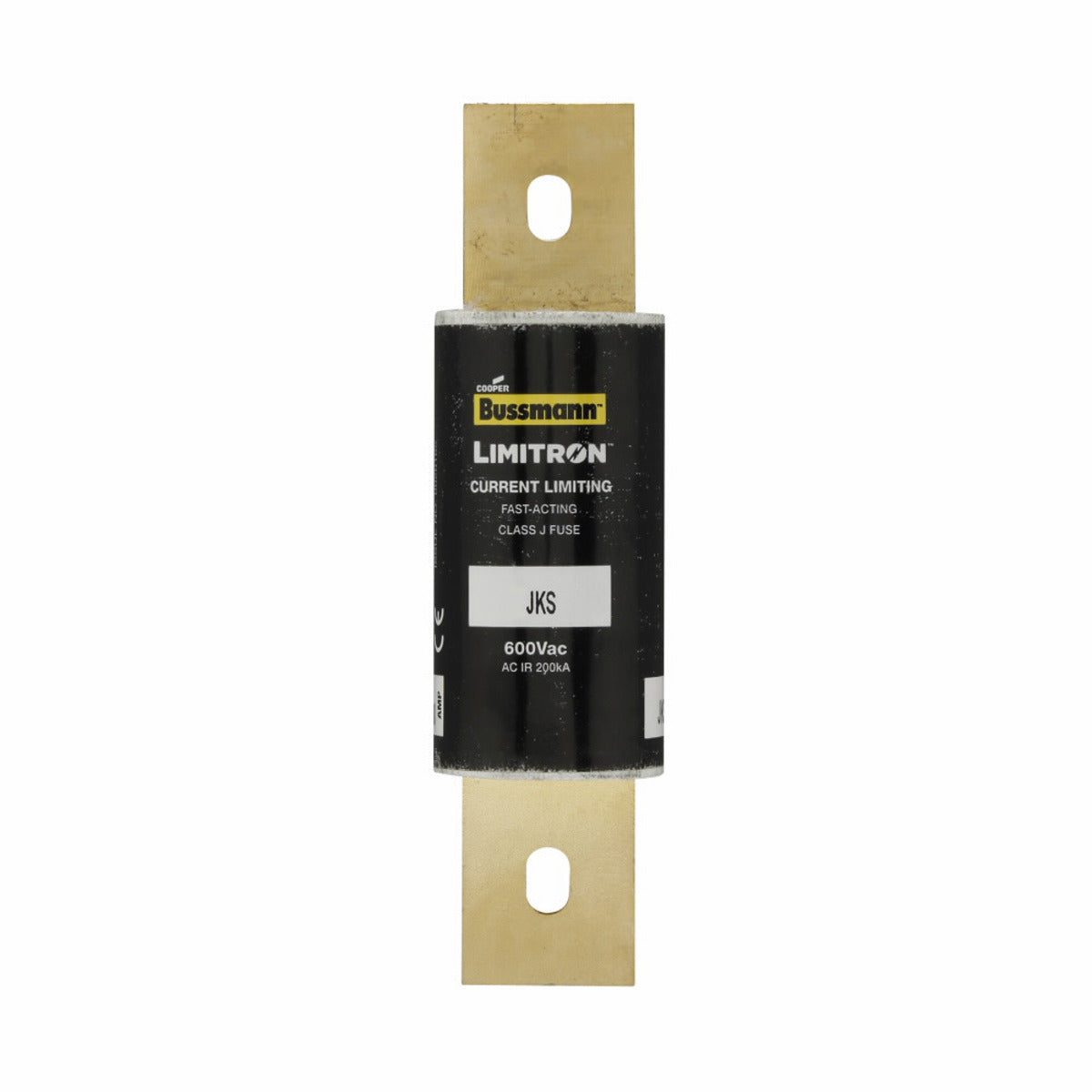

Eaton JKS-200 Bussmann JKS Limitron fast-acting fuse 200 A (1)

Product Description

The Eaton JKS-200 is a Bussmann Limitron fast-acting Class J fuse rated 200 A and 600 V for power panelboards and machinery disconnects. It is a current-limiting cartridge fuse with bolted blade end terminals, non-indicating single-element melamine body (1.50 in diameter x 5.75 in length) and a 200 kAIC interrupting rating at 600 Vac. The fuse is holder-mounted and suited for lighting, heating and other non-inductive loads.

• 200 A amperage rating and 600 V voltage rating; Limitron fast-acting, current-limiting Class J fuse
• 200 kAIC interrupting rating at 600 Vac; single-element melamine body (1.50 in dia x 5.75 in L)
• Bolted blade end x bolted blade end connections; holder mounting; non-indicating design for power panelboards and machinery disconnects

Product Highlights

Limitron fast-acting Class J fuse, 200 A / 600 V, 200 kAIC interrupting rating, bolted blade end connections, single-element melamine body

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: JKS-200
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: JKS-200
• Series: Bussmann JKS
• Fuse Type: Limitron fast-acting, current limiting
• Class: J
• Amperage Rating: 200 A
• Voltage Rating: 600 V
• Interrupting Rating: 200 kAIC at 600 Vac
• Connection / End Type: Bolted blade end x bolted blade end
• Mounting Type: Holder-mounted
• Indicating: Non-indicating
• Element Count: Single
• Body Material: Melamine
• Body Size (Diameter x Length): 1.50 in x 5.75 in
• Dimensions: 5.75 in length x 1.50 in diameter
• Weight: 0.86 lb
• Applications: Power panelboards; machinery disconnects; lighting and heating non-inductive loads
• Standards/Approvals: CE; UL 248-8 (File No. E4273 Guide JDDZ); CSA C22.2 File No. 53787; RoHS compliant
• UPC: 051712632003
