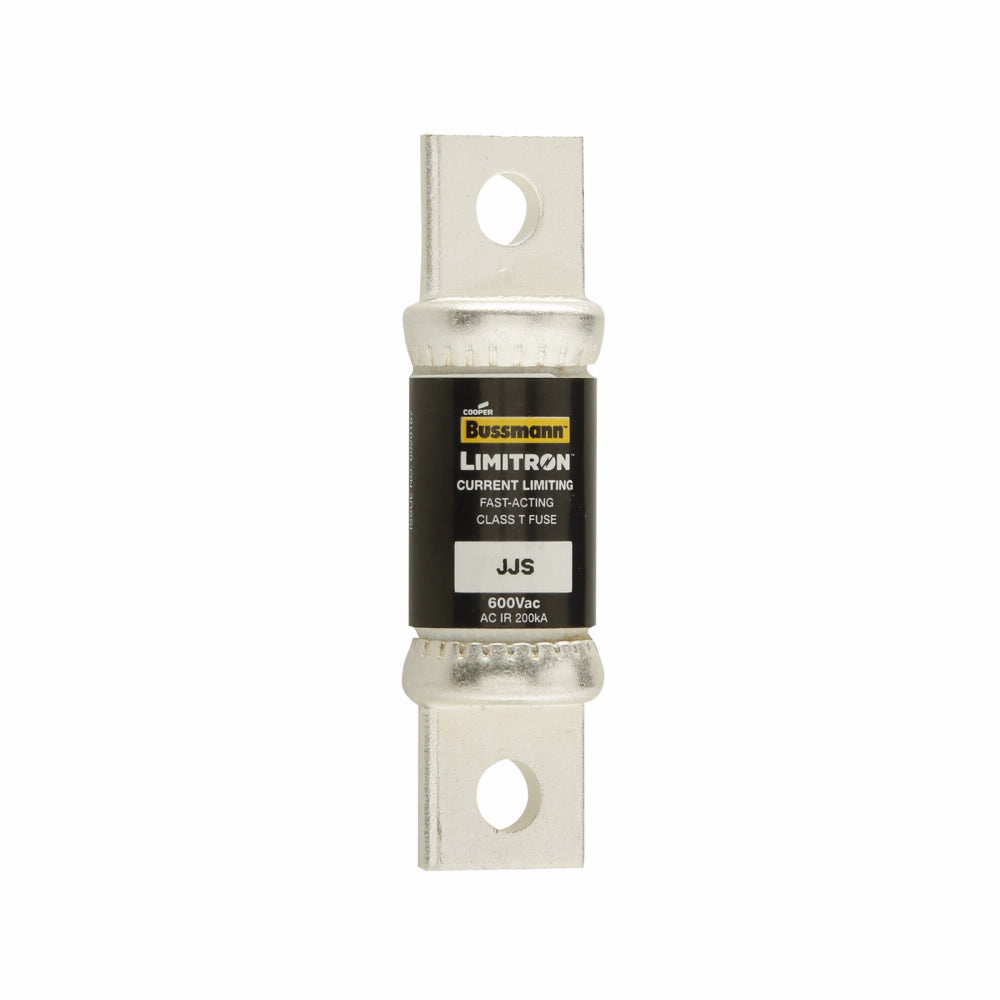

Eaton JJS-80 Fuse 80A 600VAC Class T Fast Acting Cartridge Replacement JJS-80

Product Description

Eaton's JJS-80 is a Limitron-series class T fast-acting fuse, designed to provide superior current limiting for protection of equipment in electrical circuits. This 80-amp, 600VAC fuse features a compact cartridge design, making it suitable for tight spaces and high-performance requirements.

• Exceptional interruption capacity of 200kA, aligning with NEC requirements.
• Class T certification for enhanced reliability in industrial settings.
• Fast activation to protect circuits against short-circuits and overloads.

Product Highlights

Eaton's JJS-80 offers quick, reliable protection and fits into a wide range of applications including industrial, commercial, and residential electrical systems. It is compatible with various fuse blocks and holders, providing flexible installation options.

Product Information

Standard Information

• Brand: Eaton
• Series: Limitron JJS

Technical Specifications

• Amperage: 80A
• Voltage: 600V AC
• Interrupt Rating: 200kA at 600V AC
• Body Material: Melamine
• Length: 2-61/64 in
• Diameter: 3/4 in
• Speed: Fast Acting
• Body Style: Bolt-On
• Standards/Approvals: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
