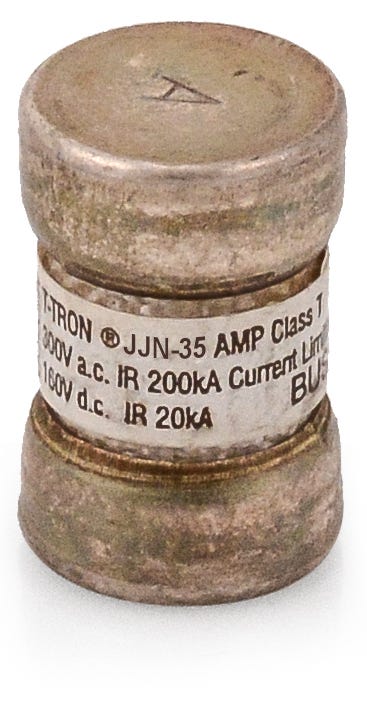

Eaton JJN-35 Tron fast acting fuse 35 A (0.56 in dia x 0.88 in l)

Product Description

Eaton JJN-35 is a Bussmann series Class T, current-limiting, very fast-acting fuse rated 35 A for VFD line protection and industrial installations. It is rated 300 VAC and 160 VDC with interrupting capacities of 200 kAIC at 300 VAC and 20 kAIC at 160 VDC. The non-indicating cylindrical melamine body measures 0.56 in diameter by 0.88 in length and uses ferrule end terminations.

• Class T current-limiting, very fast acting; 35 A rating for overcurrent protection
• Voltage rating 300 VAC / 160 VDC with interrupting ratings 200 kAIC (300 VAC) and 20 kAIC (160 VDC)
• Ferrule end x ferrule end termination; cylindrical melamine body 0.56 in diameter x 0.88 in length; non-indicating

Product Highlights

35 A Class T current-limiting fuse for VFD and industrial line protection; 200 kAIC at 300 VAC and 20 kAIC at 160 VDC; compact 0.56 x 0.88 in melamine body with ferrule terminations.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: JJN-35
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: JJN-35
• Series: JJN
• Fuse Class: Class T
• Type: Current limiting, very fast acting
• Current Rating: 35 A
• Voltage Rating AC: 300 VAC
• Voltage Rating DC: 160 VDC
• Interrupting Rating (300 VAC): 200 kAIC
• Interrupting Rating (160 VDC): 20 kAIC
• Termination: Ferrule end x ferrule end
• Terminal Type: Ferrule end
• Body Material: Melamine
• Body Size / Dimensions: 0.56 in diameter x 0.88 in length
• Element: Single
• Indication: Non-indicating
• Mounting Type: Holder
• Standards / Approvals: UL 248-15; CSA C22.2; CE; RoHS compliant
• Application: VFD line protection; industrial and commercial installations
• Packaging Quantity: 10
• Diameter: 0.56 in
• Length: 0.88 in
