Eaton JJN-200 JJN200 BUS 200A CURRENT LIMITING

Product Description

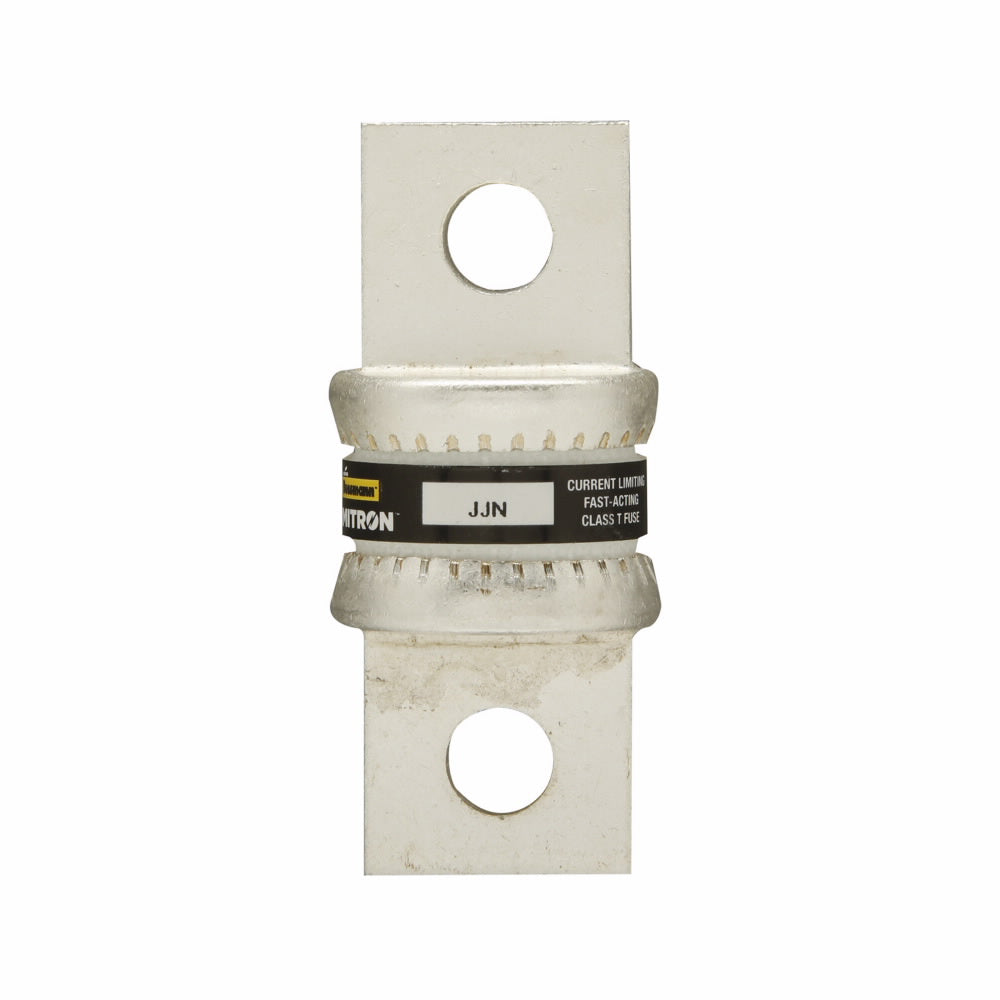

The Eaton JJN-200 is a Bussmann Limitron™ T-Tron® Fuse designed for current limiting applications. This fuse is specifically rated for 200 Amperes and operates at a voltage of 300 VAC or 160 VDC. It is built to provide rapid response and protection for electrical circuits from short circuit conditions.

• Amperage Rating: 200 A
• Voltage Rating: 300 VAC/160 VDC
• Body Size: 0.88 inches Diameter x 2.44 inches Length

Product Highlights

This fuse is suitable for industrial equipment, safety systems, and large residential setups. It helps to prevent damage from short circuits and features a fast-acting design that enhances safety and reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171262703

Technical Specifications

• Type: Current Limiting Very Fast Acting
• Class: T
• Body Type: Cartridge
• Element: Single
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Bolted Blade End
• Application: Industrial Facilities, Safety Systems, and Commercial Applications
• Standards/Approvals: CE Certified, CSA C22.2, RoHS Compliant, UL 248-15
• Rejection Type: Non-Rejection
