Eaton JGHMVD24BX Handle Mechanism 24 in

Product Description

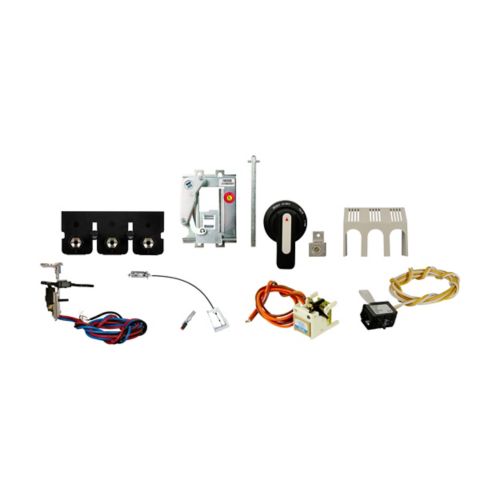

The Eaton JGHMVD24BX handle mechanism is an S01 handle mechanism designed for JG frame circuit breakers. It is part of the Series G and features a NEMA 4/4X rating. The handle mechanism comes with a 24-inch shaft, suitable for circuit protection applications.

• Conveniently packaged as kit containing handle, shaft and mechanism
• Metallic functional components ensure reliability
• Metal-on-metal interface between handle and shaft

Product Highlights

This handle mechanism is compatible with both Series C and Series G molded case circuit breakers and molded case switch platforms.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: JGHMVD24BX

Technical Specifications

• Product Name: Eaton molded case circuit breaker accessory handle mechanism
• Catalog Number: JGHMVD24BX0
• UPC: 786685762470
• Product Length/Depth: 24.25 in
• Product Height: 4.25 in
• Product Width: 5 in
• Compliances: Contact Manufacturer
• Certifications: UL Listed
• Global Catalog: JGHMVD24BX0
• Product Type: Molded case circuit breaker accessory
• Frame size: Frame JG
• Series: Series G
• Handle color: Blue
• Shaft length: 24 in
• Degree of protection (enclosure): NEMA 4X NEMA 4
• Type: S01 Handle mechanism
• UNSPSC: 39121616
• Application: Circuit Protection Applications
• Handle Color: Black/Blue
• Suitable For Use With: G Series JG-Frame Molded Case Circuit Breaker
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Handle
• Product series / family name: Handle Mechanisms
• Functions: S2 blue handle 24-inch shaft
• Degree of protection: IP65
• Technical compatibility with: JG-Frame
• Manufacturer product status: Commercialized
• Compliant with standard(s): NEMA 4/4X
• MPN: JGHMVD24BX
• Brand: CUTLER HAMMER
• UNSPSC Code: 39120000
• Dimensions: 24.00 in L
• For Use With: JG-frame
• Primary Type: Operating Mechanisms
• Unit of Measure: EA
• UPC Code: 786685293622
• Manufacturer: Eaton
• Component: Handle Mechanism
