Eaton ISOGROUND 600 Amp 42-Circuit Insulated/Isolated Panelboard Ground Bar Kit

Product Description

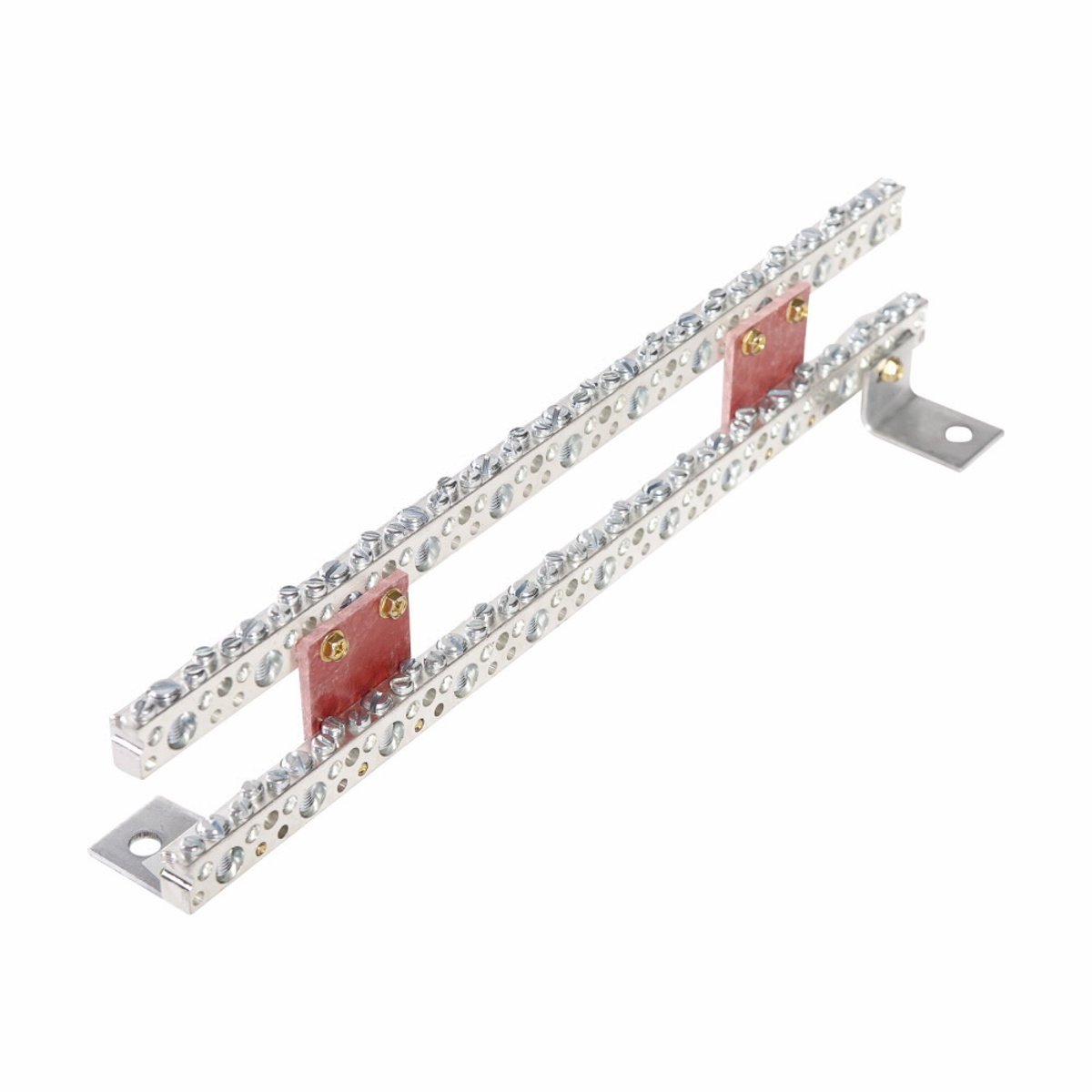

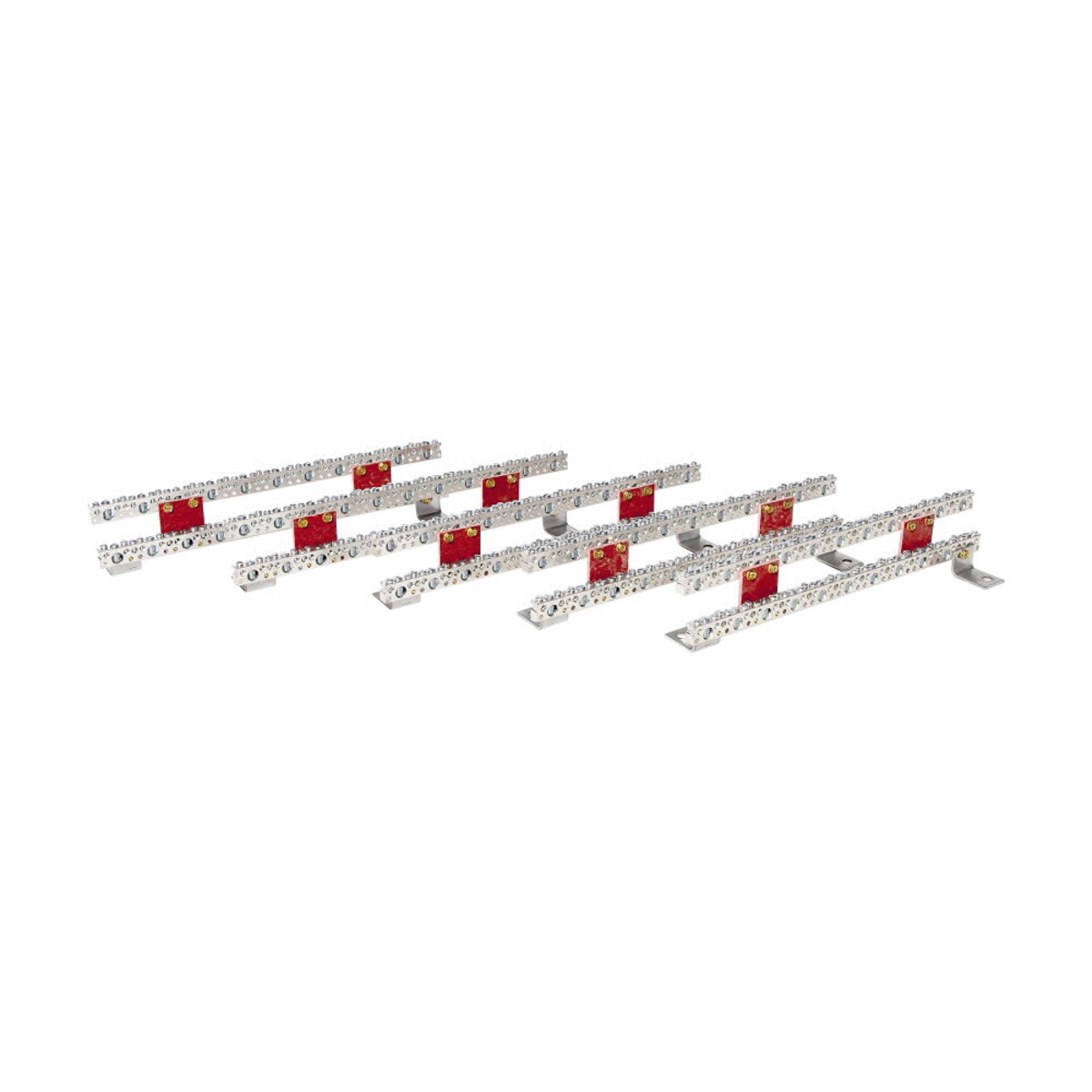

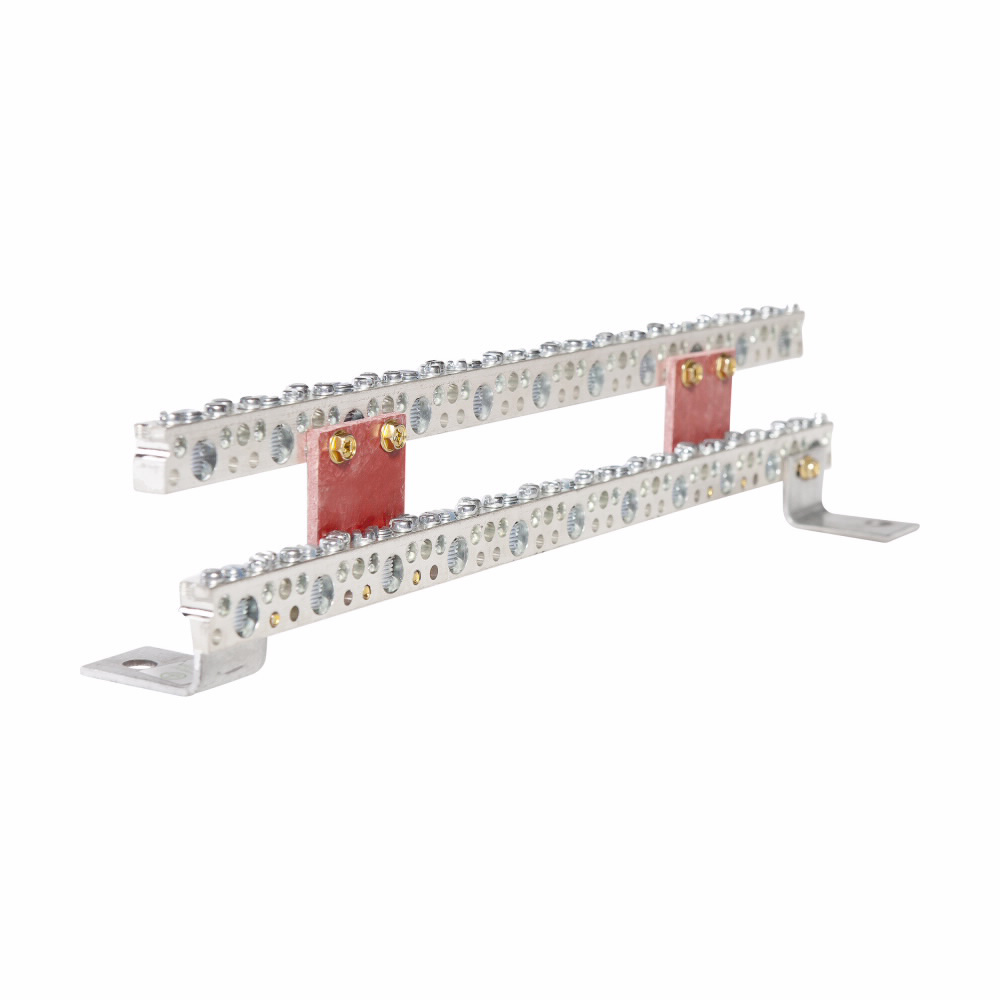

Eaton ISOGROUND is a 600 amp insulated and isolated ground assembly for panelboards. This assembly is designed for use with PRL1A, PRL2A, and PRL3A series panelboards, offering reliable performance for electrical assemblies. The ISOGROUND kit includes a 42-circuit setup and is suitable for applications in data centers, industrial sites, and commercial facilities.

• Insulated/Isolated Ground Assembly for PRL1A, PRL2A, PRL3A Panelboards
• 600 Amp Amperage Rating
• Dimensions: 2.8 inches Length x 1.2 inches Width x 0.9 inches Height

Product Highlights

This assembly meets UL 67 standards, providing peace of mind in various electrical applications.

Product Information

Standard Information

• Catalog Number: ISOGROUND
• Brand: Eaton
• Country of Origin: Mexico
• Made in USA: No

Technical Specifications

• Amperage Rating: 600
• Number of Circuits: 42
• Type: Insulated/Isolated Ground Assembly
• Special Features: PRL1X/2X - PRL1A/2A
• Standard: UL 67
• UPC: 782116064007
• GTIN: 00782116064007
• Applications: Electrical Assemblies, Panels & EOEM
