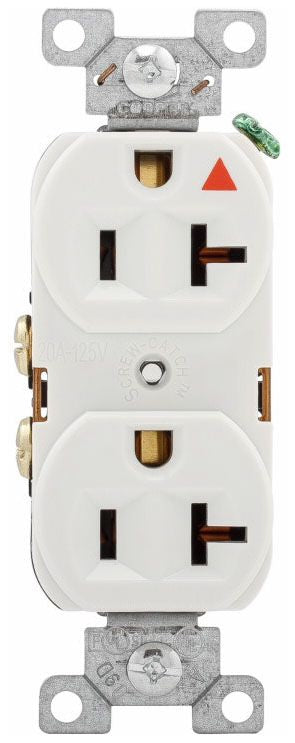

Eaton IG5362W 20A Isolated Ground Receptacle

Product Description

The EATON IG5362W is a 20-amp isolated ground duplex receptacle designed for commercial and industrial electrical installations where sensitive equipment requires a clean, noise-free ground path. Isolated ground receptacles separate the equipment ground from the building ground at the outlet level, reducing electrical interference on the grounding conductor. This type of device is standard in data centers, medical facilities, broadcast environments, and laboratory settings where electronic equipment is susceptible to ground loop noise. Installation is performed by a licensed electrician in compliance with NEC Article 250 and 406 requirements for isolated ground receptacles.

The IG5362W is suited for 20-amp, 125-volt branch circuits wired with 12 AWG or larger conductors. It accepts both 15-amp and 20-amp plug configurations due to its duplex NEMA 5-20R outlet face. Typical applications include dedicated circuits serving computers, audio-visual systems, medical instrumentation, and other sensitive electronic loads where power quality at the receptacle level is critical. The white finish is common in commercial wiring applications.

Key Features

• Isolated ground design reduces electrical noise on the equipment grounding conductor
• 20-amp rating supports dedicated branch circuits for sensitive electronic loads
• NEMA 5-20R configuration accepts both 15-amp and 20-amp plug types
• White finish suitable for standard commercial wallplate applications
• Duplex outlet provides two independently isolated ground receptacles at a single location

Compatibility

Designed as an OEM-style isolated ground duplex receptacle for 20-amp, 125-volt branch circuits in commercial and industrial wiring applications.

Installation Notes

Installation must be performed by a licensed electrician. De-energize the branch circuit at the panel and verify absence of voltage before wiring. The isolated ground terminal must be connected only to the dedicated insulated equipment grounding conductor and must not be bonded to the outlet box or standard grounding path at the device level, per NEC requirements. Use appropriate wallplates and back boxes rated for the installation environment.

Technical Specifications

• Amperage: 20 amps
• Configuration: NEMA 5-20R Duplex
• Grounding Type: Isolated Ground
• Color: White
• UPC: 03266473546

Standard Information

• Brand: EATON
• Manufacturer Part Number: IG5362W
