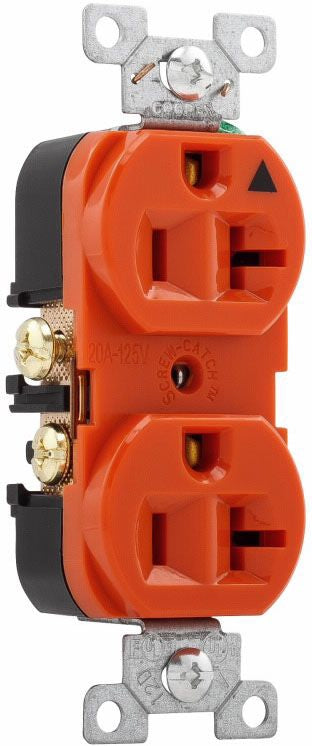

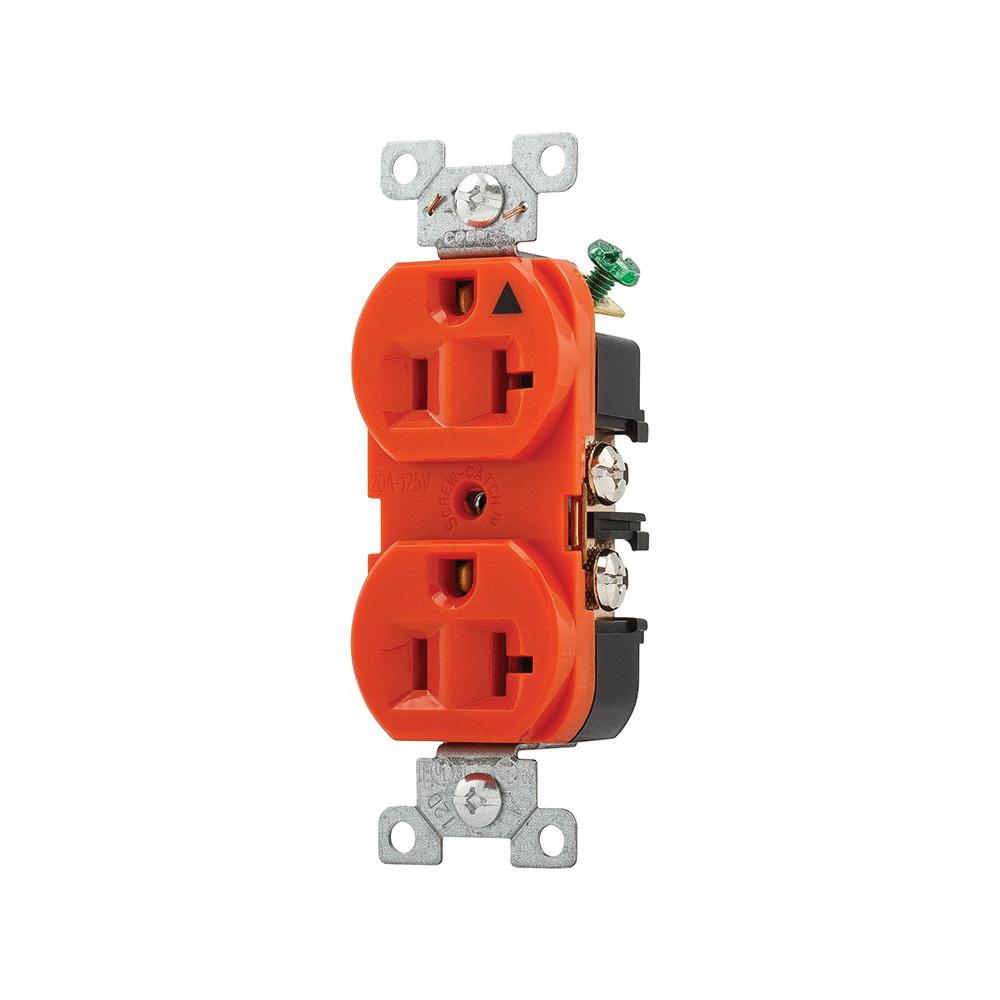

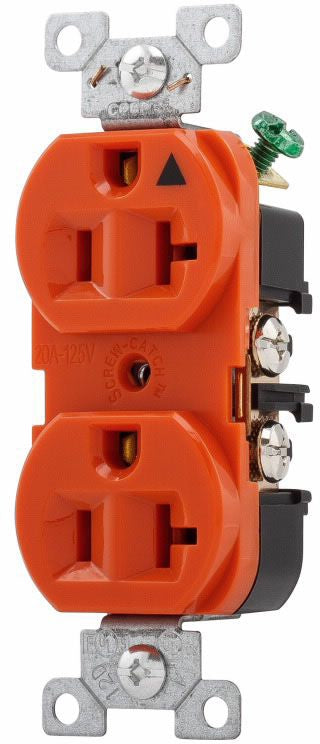

Eaton IG5362RN Straight Blade Receptacle 20A 125V

Product Description

The EATON IG5362RN is a construction specification grade straight blade receptacle engineered for safe, reliable performance. This duplex grounding isolated receptacle is rated for 20A at 125 VAC and is NEMA 5-20R compliant. It provides maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time. Ideal for industrial and commercial applications.

• High impact and chemical resistant nylon face maintains receptacle integrity
• All terminal and mounting screws triple combination (Slot/Phillips/Robertson) head for maximum installer flexibility
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures

Product Highlights

The IG5362RN receptacle features a nylon construction, screw terminals, and an automatic grounding system.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: IG5362RN
• Country of Origin: CHN

Technical Specifications

• Grade: Construction/Industrial
• Material: Nylon
• NEMA Rating: NEMA 5-20R
• Series: IG5362
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Screw
• Type: Duplex Grounding Isolated
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Application: To provide a consistent, reliable means of connectivity in a wide variety of environments including commercial office spaces
• Standards/Approvals: cULus Listed|UL 498|UL File No. E15058|Federal Specification WC596G|CSA C22.2 File No. 42|NOM Certified|UL94 V-2 Flammability Rating
• Wiring method: Back and side
• Mounting method: Flush
• Allowable wire size: #14-10 AWG
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Glass-filled nylon base High-impact nylon face
• Receptacle type: Duplex
• Compliances: RoHS Compliant
• Certifications: UL NOM Federal Specification Classification 6233 01
• Device type: Receptacle
• Features: Isolated ground
• Device grade: Heavy-duty industrial specification grade
• Style type: Standard
• Connection type: Screw
• NEMA configuration: 5-20R
