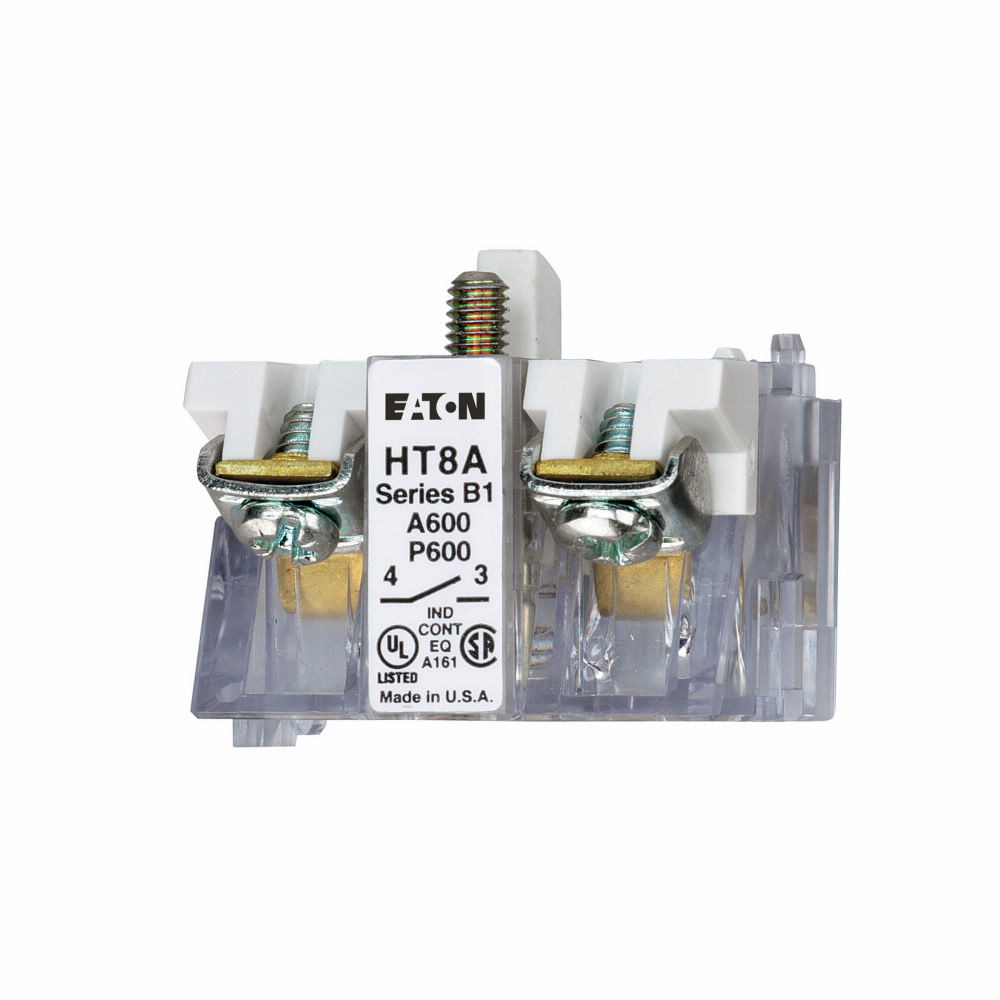

Eaton HT8A 30.5 mm 600 VAC 10 Amp 1NO Standard Push Button Contact Block

Product Description

Eaton HT8A is a contact block designed for industrial applications. This component is part of Eaton's HT800 series, featuring watertight and oiltight capabilities. It supports one normally open (NO) contact configuration, operating up to twelve amps at six hundred volts alternating current. Suitable for use in electrical assemblies, this device offers reliable performance in harsh conditions.

• Watertight and oiltight design
• Designed for twelve amps at six hundred volts
• Easily replaces 30.5 mm pushbutton devices from other manufacturers

Product Highlights

This contact block is ideal for automation and logic control equipment applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: HT8A

Technical Specifications

• Size: 30.5 mm
• Contact Configuration: 1NO
• Contact Rating: 12 A at 600 VAC
• Material: Gold Plated
• Dimensions: 1.9 in L x 1.3 in W x 2.2 in H
• Type: Oil/Watertight
• Mounting Type: 4-Stack
• Standards/Approvals: UL Listed, CSA Certified
