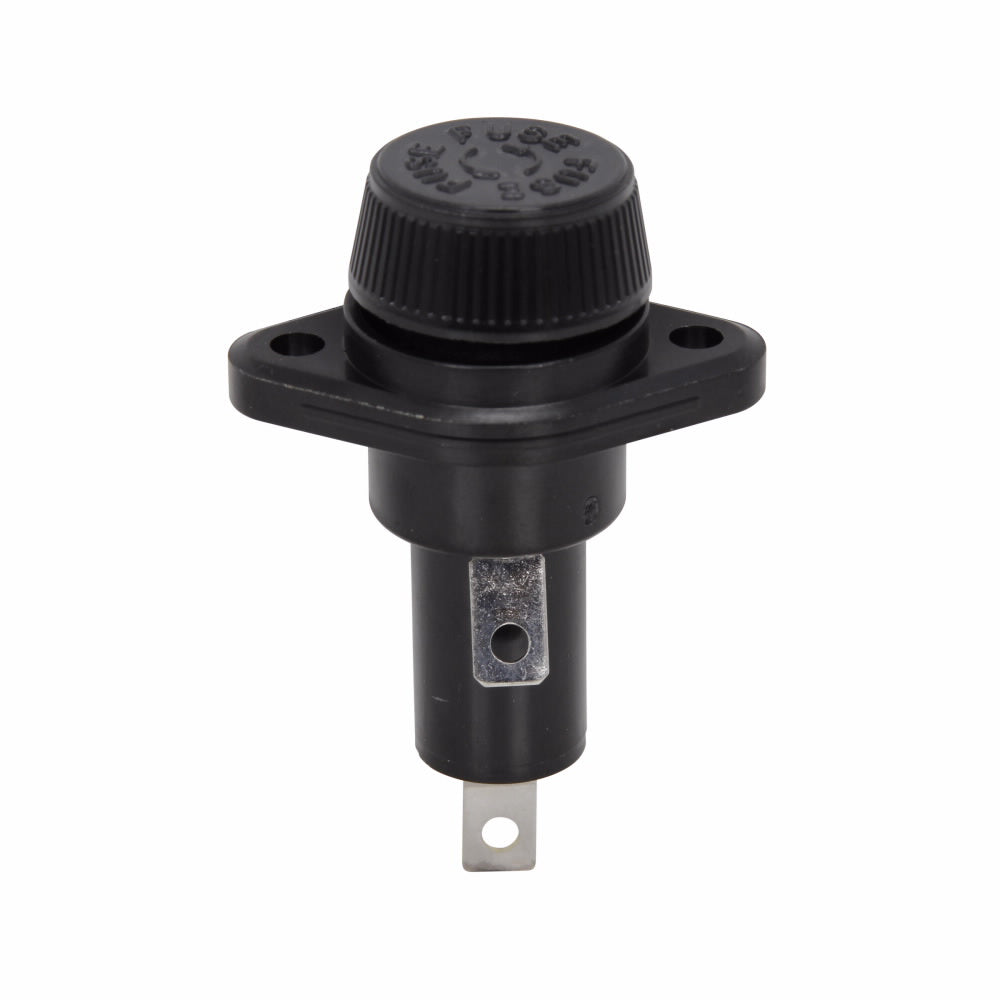

Eaton HPS-EE Buss Fuseholder (10)

Product Description

Eaton HPS-EE Buss Fuseholder is a reliable electrical component designed for use in various electrical assemblies and protection applications. It features a voltage rating of six hundred volts and supports an amperage of fifteen amps. The fuse holder is panel-mounted and compatible with SC series fuses. This product is ideal for OEM applications and branch circuit protection.

• Designed for SC Series Fuse
• Voltage rating: 600 V
• Amperage rating: 15 A

Product Highlights

The Buss Fuseholder simplifies installation with its one-piece side terminal and threaded insert, reducing the complexity of soldering.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171274040

Technical Specifications

• Class: J
• Connection Type: 1/4 in Quick-Connect Terminal
• Dimensions: 1.78 in Dia x 2.41 in L
• Fuse Length: 1-5/16 in
• Fuse Diameter: 13/32 in
• Mounting Type: Panel
• Standards/Approvals: CE Certified, CSA 6225-01, RoHS Compliant, UL Recognized
• Suitable For Use With: SC Series Fuse
• Voltage Rating: 600 V
• Amperage Rating: 15 A
