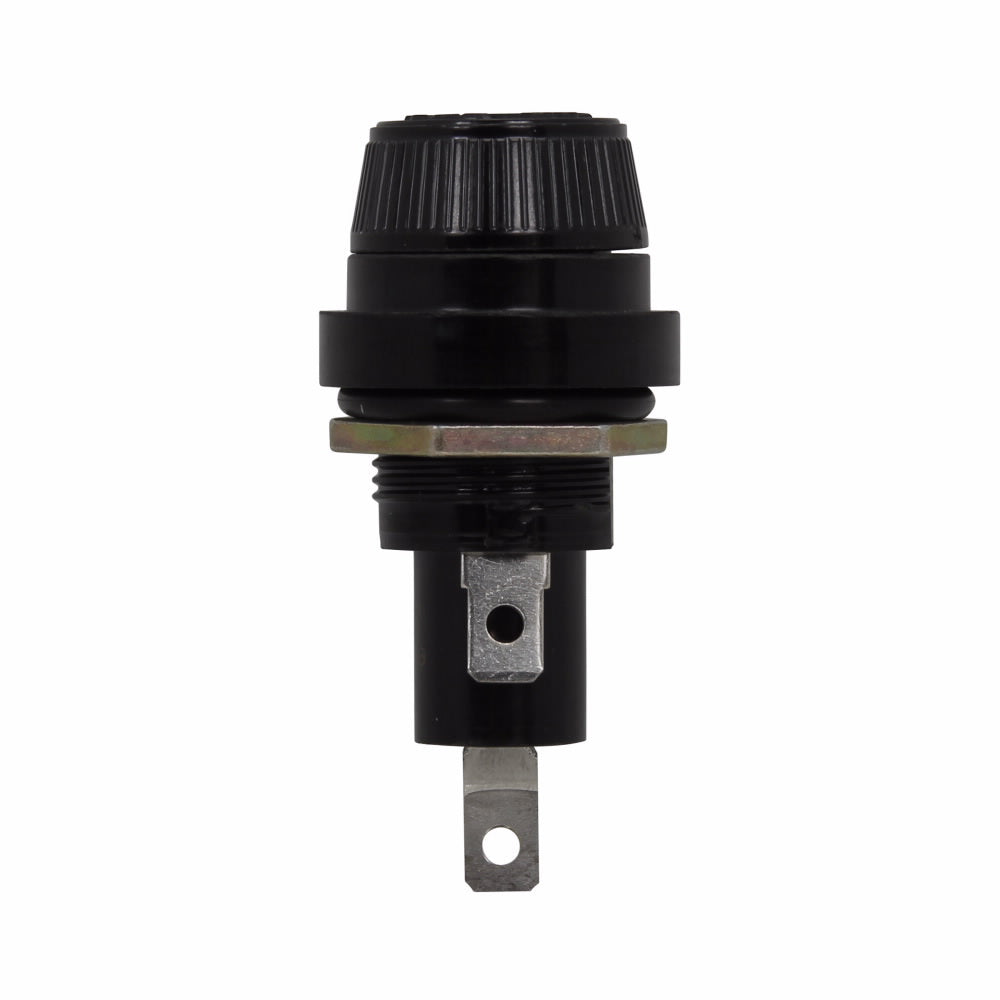

Eaton HPM Buss Fuseholder (10)

Product Description

The Eaton HPM Buss Fuseholder is designed for use in electrical assemblies and panels. This fuseholder operates at a voltage of six hundred volts and supports a current rating of twenty amperes. It features a one pole, screw type knob for easy operation and installation.

• Rated for six hundred volts
• Amperage rating of twenty amperes
• Designed for one-quarter inch quick-connect terminals

Product Highlights

This fuseholder is suitable for use with thirteen thirty-seconds by one and a half inch fuses. It is compact with dimensions of one point four one inches in diameter and two point seven three inches in length.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: HPM

Technical Specifications

• Amperage Rating: 20 A
• Application: Electrical Assemblies, Panels and EOEMs, Supplementary Protection of Transformers, Relays, Ballasts and Small Motors Applications
• Connection Type: 1/4 in Quick-Connect Terminal
• Dimensions: 1.41 in Dia x 2.73 in L
• Fuse Diameter: 13/32 in
• Fuse Length: 1-1/2 in
• Mounting Type: Panel
• Number of Poles: 1
• Standards/Approvals: CE Certified, CSA File No.47235, RoHS Compliant, UL File No.E14853 Guide IZLT2, UL 94HB Flammability Rating
• Suitable For Use With: 13/32 x 1-1/2 in Fuse
• Voltage Rating: 600 V
