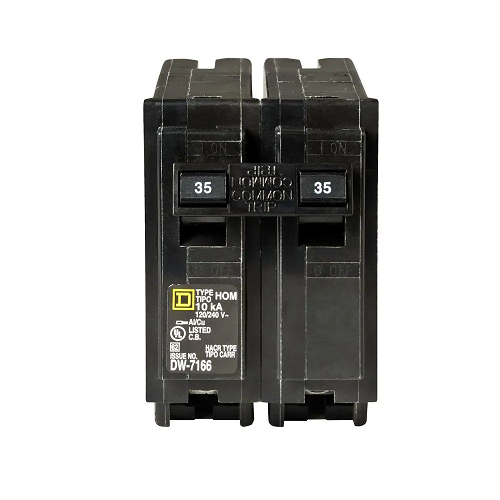

Eaton HOM235 Square D 2 Pole 35 Amp Circuit Breaker

Product Description

The EATON HOM235 Square D Mini Plug-On Circuit Breaker is a 2-pole, 35 Amp breaker with a 120/240 VAC voltage rating and a 10 kA AIR rating. It allows for rapid replacement without touching base connections and enables future circuit additions. It also isolates power circuits when mounted on a panel, acting as a barrier for plug-on base connections.

• Extract and/or rapidly replace the Mini Plug-On Circuit Breaker without having to touch the connections on the base
• Allow for the addition of future circuits by installing bases that will be equipped with a Mini Plug-On Circuit Breaker at a later date
• Isolate the power circuits when the Mini Plug-On Circuit Breaker is mounted on or through a panel

Product Highlights

Mini Plug-On Circuit Breaker with 120/240 VAC, 10 kA AIR rating, and plug-on base.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HOM235

Technical Specifications

• AIR Rating: 10 kA
• Voltage Rating: 120/240 VAC
• Amp Rating: 35
• Wire Size: 8 to 2 AWG for 1 Cable (Copper, Aluminum)
• Operating Temperature: 104 °F (40 °C)
• Standards: UL Listed, CSA Certified, HACR
