Eaton hom230 30A Double Pole Circuit Breaker 120/240V

Product Description

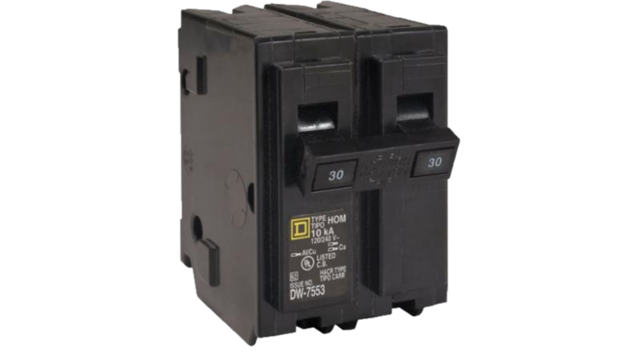

The EATON hom230 is a double-pole, plug-in miniature circuit breaker rated for 30 amps at 120/240 volts AC. It uses thermal-magnetic trip technology to protect residential branch circuits from overloads and short circuits. The breaker features a common-trip mechanism, meaning both poles open simultaneously on a fault. A trip indicator window provides a clear visual signal when the breaker has tripped, making troubleshooting faster during service calls. Licensed electricians install this breaker in residential load centers and panelboards as a direct plug-on component.

The hom230 is designed for residential applications in single-family and multi-family housing. It is suited for 240-volt branch circuits such as dryer outlets, water heaters, and similar double-pole loads. The plug-on mounting style allows fast installation in compatible load centers and panelboards without additional hardware. It is rated for use at 50/60 Hz and accepts copper or aluminum conductors in the range of 14 to 8 AWG, or two copper conductors from 14 to 10 AWG.

Key Features

• Double-pole, common-trip design opens both poles simultaneously on a fault
• Thermal-magnetic trip mechanism protects against overloads and short circuits
• Trip indicator window gives immediate visual confirmation of a tripped breaker
• Plug-on mounting for fast installation in compatible load centers
• Accepts aluminum or copper conductors 14 to 8 AWG, or two copper conductors 14 to 10 AWG
• Interrupting rating of 10 kiloamperes at 120/240 volts AC (UL/CSA listed)

Compatibility

Designed for use in HOM-series residential load centers and HOM panelboards that accept plug-on style breakers. Verify panel compatibility before installation, as breaker mounting styles are not universally interchangeable across manufacturer lines.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the main breaker and verify the panel is de-energized before handling internal components. Torque wire terminations to the value specified on the breaker label. Do not install this breaker in a panel that requires a different mounting style or a breaker with a higher interrupting rating than this unit provides.

Technical Specifications

• Voltage Rating: 120/240 volts AC
• Amperage: 30 amps
• Poles: 2
• Trip Type: Thermal-Magnetic, Common Trip
• Interrupting Rating: 10 kiloamperes at 120/240 volts AC; 5 kiloamperes at 48 volts DC
• DC Voltage Rating: 48 volts DC
• Frequency: 50/60 Hz
• Wire Range: 14 to 8 AWG aluminum or copper; two conductors 14 to 10 AWG copper
• Mounting: Plug-On
• Dimensions: 2.25 inches W x 2.91 inches D x 3 inches H
• Certifications: UL Listed, CSA
• Application: Residential

Standard Information

• Brand: EATON
• Manufacturer Part Number: hom230
