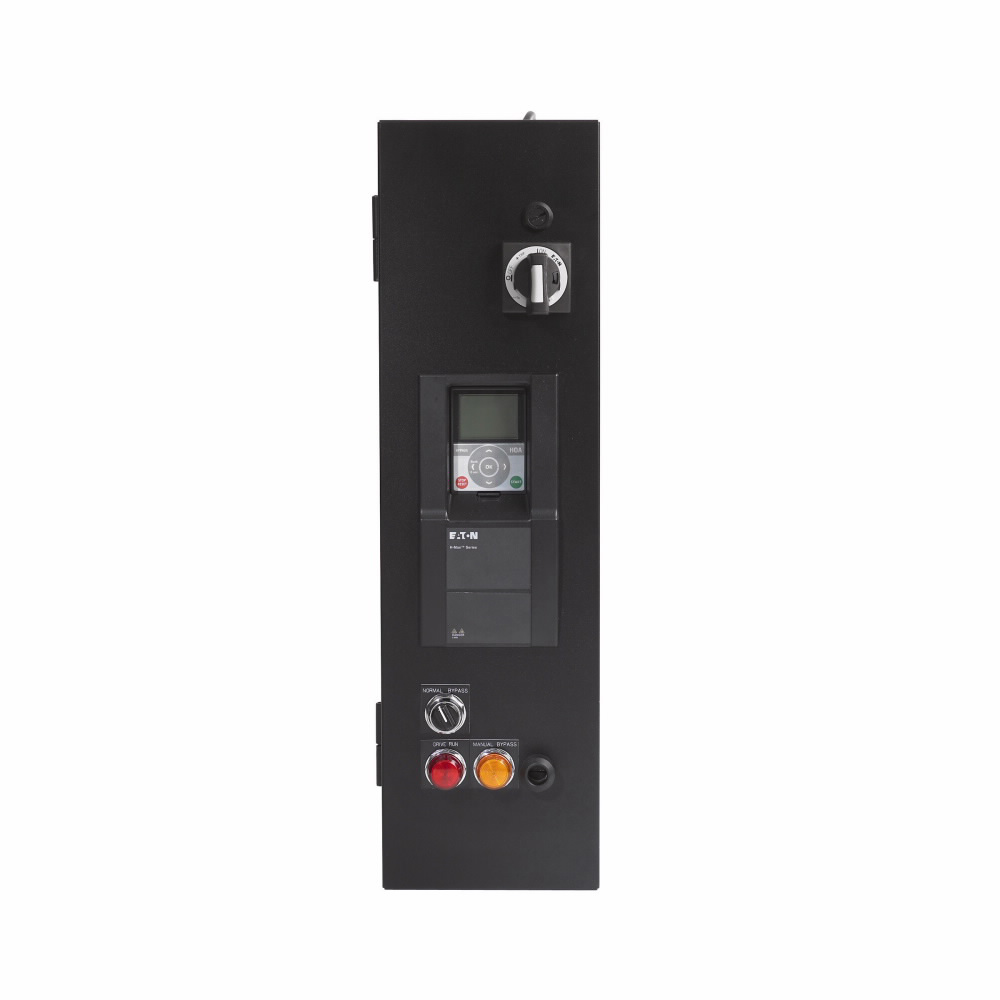

Eaton HMX34AG9D621-N H-Max Drive 5 hp 380-480V

Product Description

Eaton H-Max Drive HMX34AG9D621-N is designed for HVAC and pump applications. This variable frequency drive, rated at five horsepower, operates efficiently between three hundred eighty and four hundred eighty volts, with a current rating of nine point six amps. The unit features an open NEMA Type 1 enclosure with an IP21 rating, ensuring durability and resistance to dust and moisture.

• Contemporary graphical panel keypad for easy operation.
• Equipped with removable terminal blocks for user-friendly wiring.
• Built-in RS-485 and Ethernet communication capability.

Product Highlights

This drive is ideal for stationary machinery and equipment outside factory settings, particularly for HVAC and pump management in commercial buildings.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Horsepower: 5 hp
• Current Rating: 9.60 Amp
• Voltage Input: 380-480 Volt
• Number of Phases: 3 Phase
• Frame Size: FR4
• Enclosure Type: Open NEMA Type 1 IP21
• Length: 16 inches
• Width: 7.5 inches
• Height: 9.75 inches
• Weight: 16 lb
