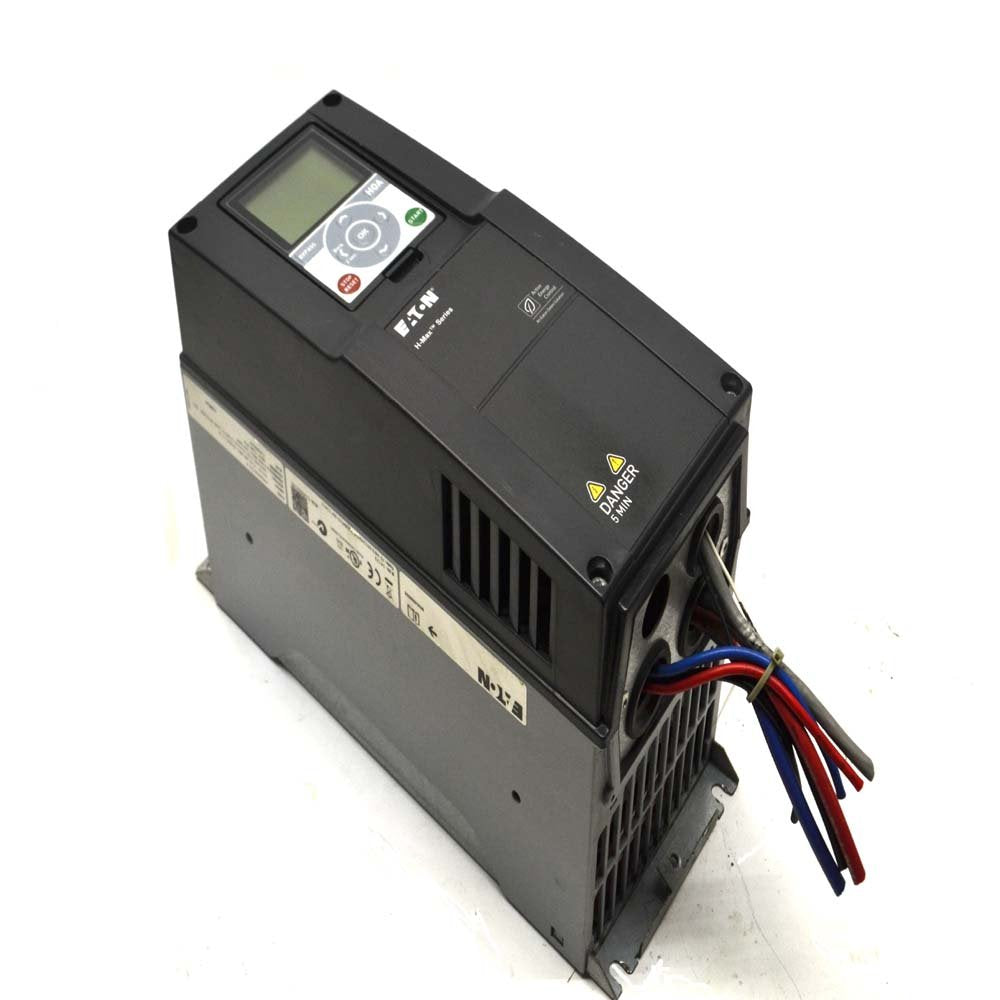

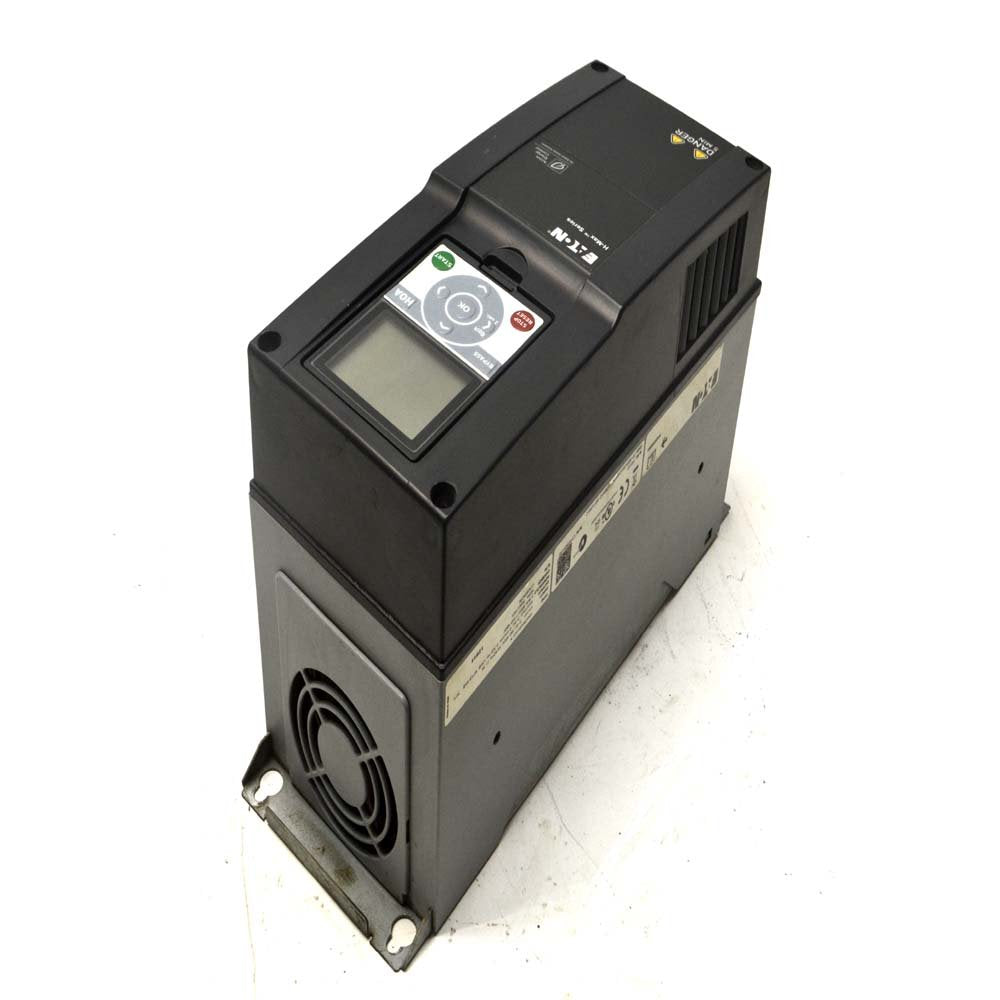

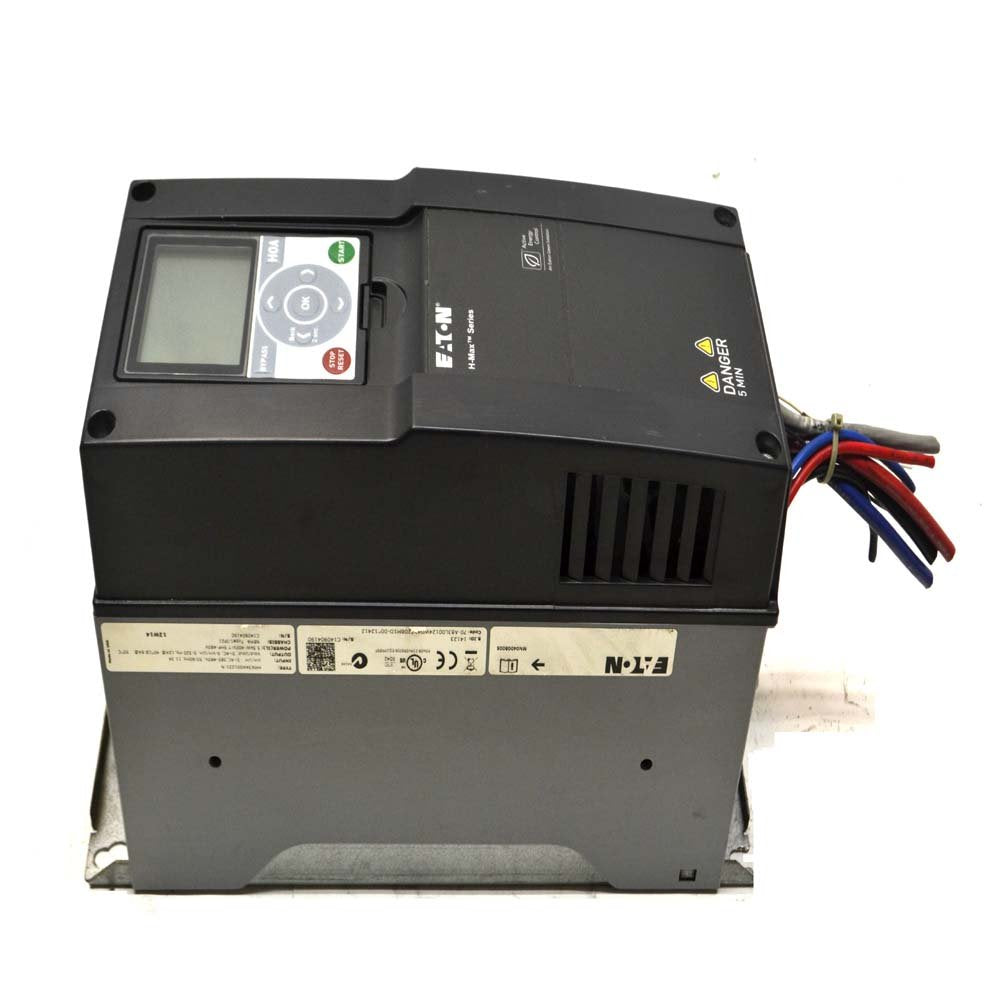

Eaton HMX34AG01221-N H-Max 3-Phase Type 1 Variable Frequency Drive, 380/480 VAC, 12 A, 7-1/2 hp

Product Description

The Eaton HMX34AG01221-N H-Max Series VFD features software and hardware designed for the HVAC and pump industry. It consumes less energy with its ultra-efficient DC capacitor and power structure. The I/O configuration includes removable terminal blocks and a main control board with built-in RS-485 and Ethernet communication. This 3-Phase Type 1 drive operates at 380/480 VAC with a 12 A amperage rating and 7-1/2 hp.

• Ultra-efficient DC capacitor and power structure reduces energy consumption.
• Removable terminal blocks for wiring ergonomics.
• Built-in RS-485 and Ethernet communication.

Product Highlights

Eaton's H-Max VFD delivers robust performance with enhanced features, offering an energy-efficient solution for motor control applications. Ideal for HVAC and pump systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HMX34AG01221-N
• Country of Origin: China

Technical Specifications

• Display Type: LED
• Enclosure Type: NEMA 1/IP21/Open
• Height: 12.89 in
• Series: H-Max™
• Type: 3-Phase Type 1
• Voltage Rating: 380/480 VAC
• Amperage Rating: 12 A
• Horsepower: 7-1/2 hp
• Width: 5.04 in
• Depth: 7.77 in
• Product Length/Depth: 7.77 in
• Product Height: 12.89 in
• Product Width: 5.04 in
• Compliances: CE Marked
• Certifications: EN 61800-5-1 cUL Certified UL 508C IEC 61800-5-1
• Catalog Notes: All boards are varnished. Corrosion resistant. Battery included in all drives for real-time clock. Keypad kit includes HOA bypass. Keypad kit includes HOA, back reset for Europe application. EMI/RFI filters included. DC link choke included.
• Product Type: Variable frequency drive
• Brake chopper: No brake chopper
• Phase: Three-phase
• Frame size: FR4

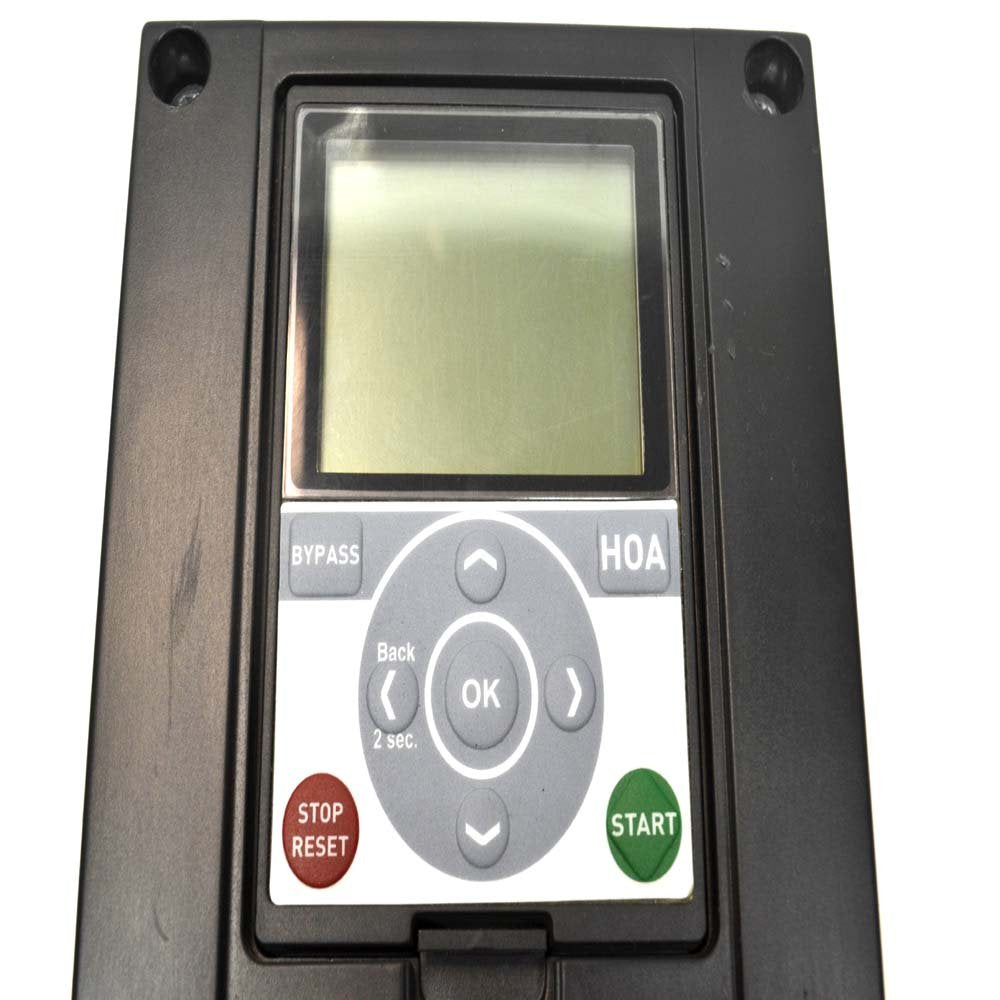

• Keypad: Graphical panel
• Input: EMC C2
• Software: Type A
• Number Of Phases: 3-Phase
• Rated Load: 7-1/2 HP
