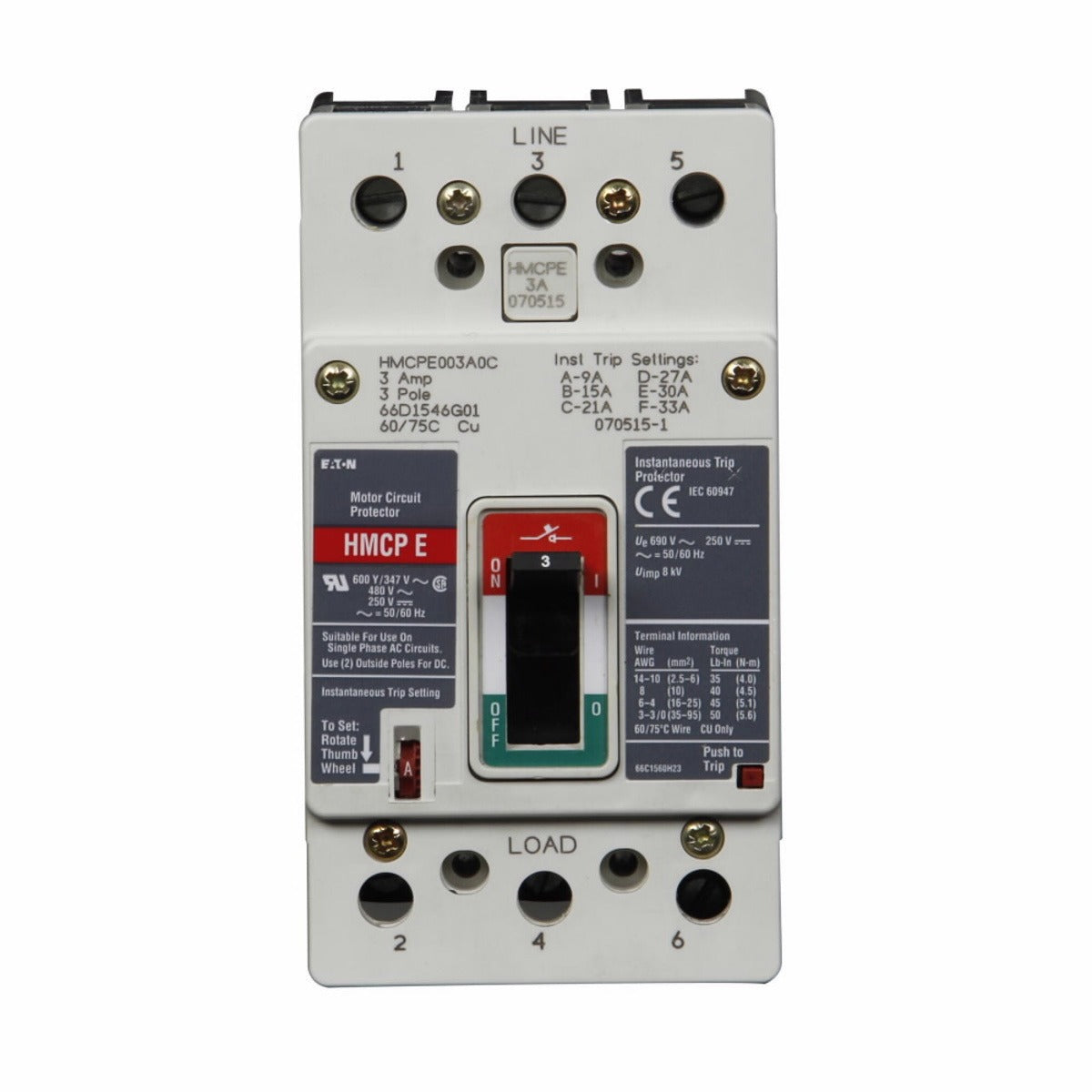

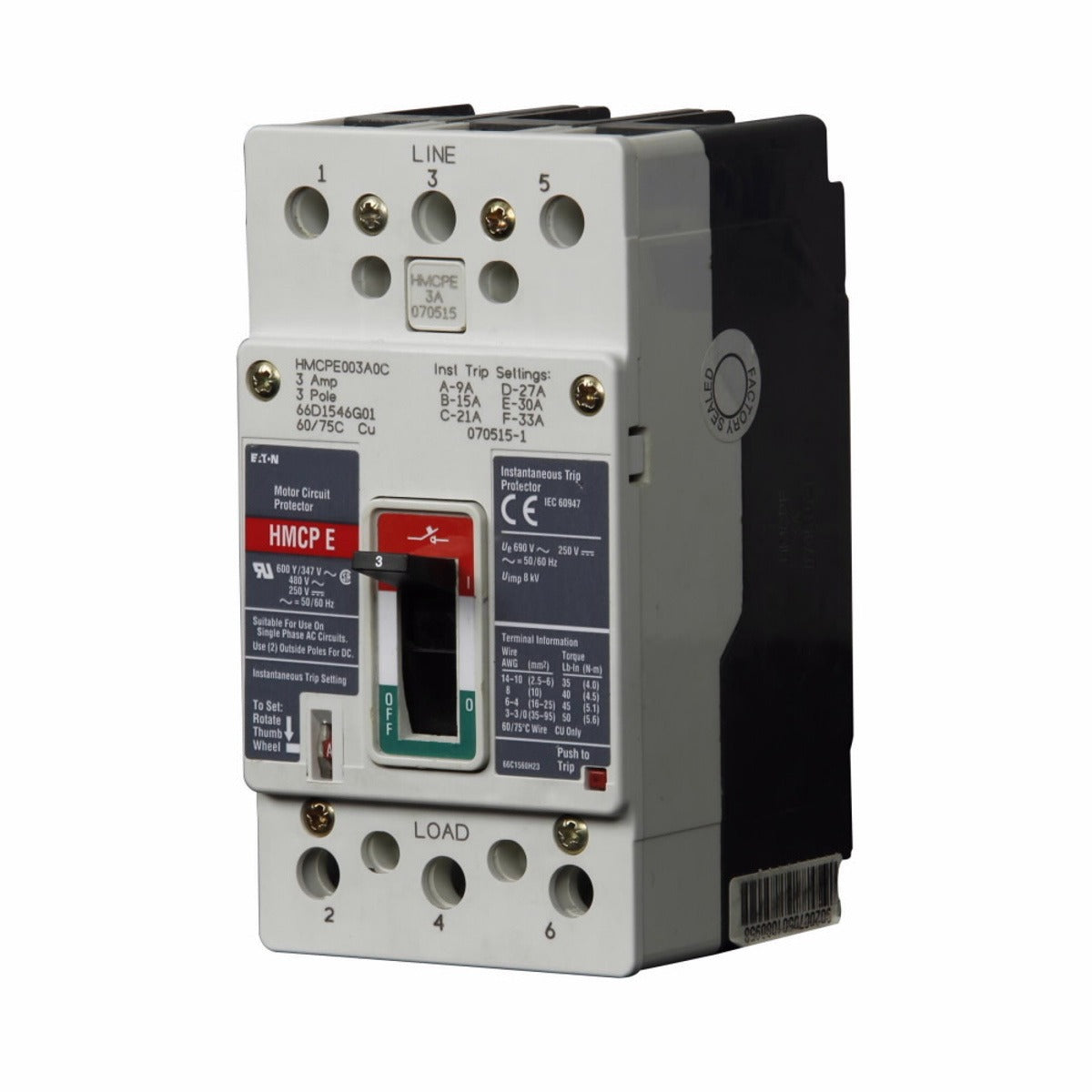

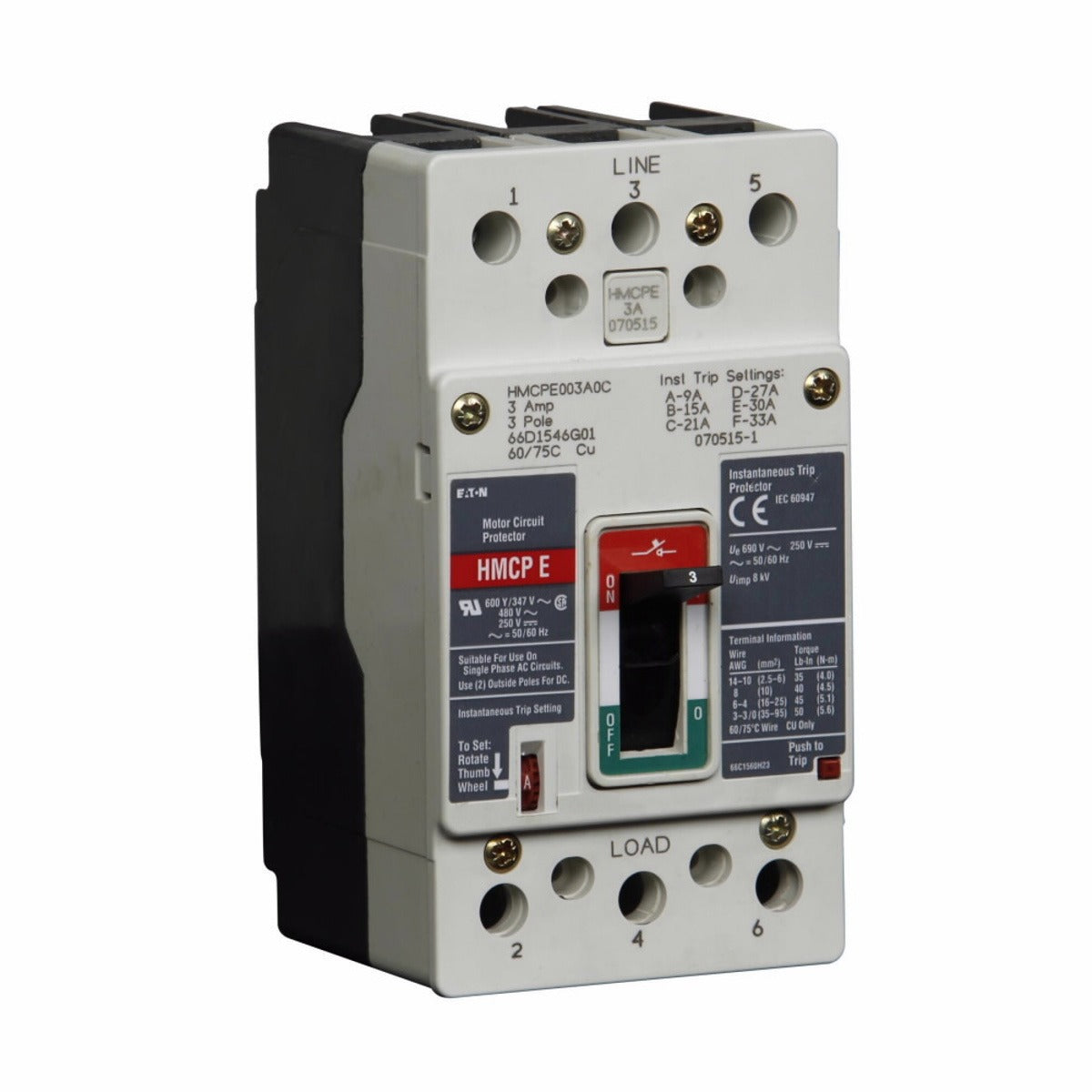

Eaton HMCPE015E0C Motor Circuit Protector 15 A (Frame J-K)

EATON
Brand: EATON
SKU: HMCPE015E0C
Availability: In Stock

Ships same day if ordered by 12 pm
$764.83
$764.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton HMCPE015E0C is a Type HMCP Series G motor circuit protector rated 15 A with a three-pole adjustable magnetic trip for motor protection in commercial and institutional applications. It is designed for 480 V systems and is rated to 600Y/347 V, with an adjustable magnetic trip range covering 45 to 150 A. The device is a molded case protector in a NEMA 0 enclosure.

  • Three-pole motor circuit protector, rated 15 A with adjustable magnetic trip (45–150 A)
  • Voltage rating: 480 V; maximum/rated 600Y/347 V; Series G, Frame J-K
  • Dimensions 2.99 in L x 3 in W x 5.5 in H; weight 3 lb; non-aluminum terminals

Product Highlights

15 A three-pole motor protector with 45–150 A adjustable magnetic trip

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: HMCPE015E0C
  • Country of Origin: Dominican Republic
Technical Specifications
Brand
Eaton
Manufacturer Part Number
HMCPE015E0C
Type
Motor circuit protector (Type HMCP)
Series
G Series
Frame
J-K
Rated Amperage
15 A
Adjustable Trip Range
45-150 A
Number of Poles
3
Trip Type
Adjustable magnetic
Voltage Rating
480 V
Maximum Voltage Rating
600Y/347 V
Enclosure Type
NEMA 0
Terminal Material
Non-aluminum
Certifications
UL Listed; CSA Certified
Applications
Motor protection for commercial and institutional buildings
GTIN/UPC
00786679113653 / 786679113653
