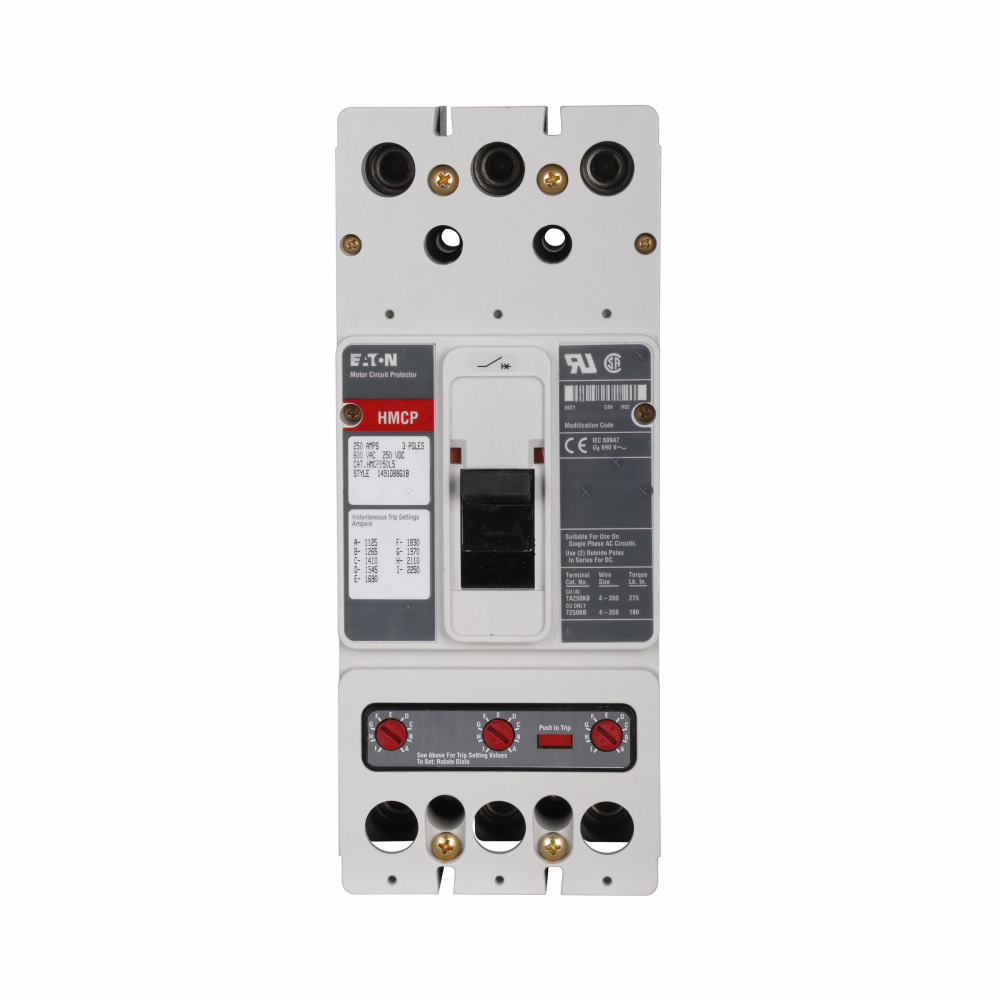

Eaton HMCP250W5C 600 VAC 250 VDC 250 Amp 3-Pole Magnetic Molded Case Circuit Breaker

Product Description

The Eaton HMCP250W5C is a molded case circuit breaker. It is rated for 600 VAC and 250 VDC at a current of 250 Amps. This three-pole circuit breaker offers reliable protection for commercial and institutional buildings. It features a magnetic trip function for enhanced safety.

• Rated for 250 Amps
• Three-pole configuration
• Designed for 600 VAC and 250 VDC

Product Highlights

The Eaton HMCP250W5C is suitable for various applications including motor protection and circuit safety. Its three-pole design allows it to manage multiple circuits effectively. The magnetic trip feature provides instant protection from overload situations.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: HMCP250W5C
• Current Rating: 250 A
• Number of Poles: 3
• Maximum Voltage: 600 VAC
• DC Voltage: 250 VDC
• Frame: J-K
• Weight: 12.5 lb
• Dimensions: 4.06 in L x 4.13 in W x 10 in H
