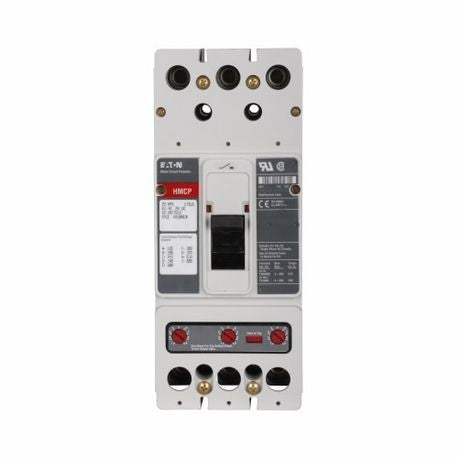

EATON HMCP250C5WD01 C Series Type HMCP Motor Circuit Protector, 600 VAC, 250 VDC, 250 A, 3 Poles, Magnetic Trip

Product Description

The EATON HMCP250C5WD01 is a C Series Type HMCP Motor Circuit Protector designed for use in electrical applications. This model provides reliable short-circuit protection for motors, operating at up to six hundred volts alternating current (VAC) and two hundred fifty volts direct current (VDC).

• UL Recognized instantaneous-only breaker for motor protection
• High short-circuit current ratings, reaching up to one hundred thousand amperes
• Available in current ratings from three to twelve hundred amperes

Product Highlights

This device is ideal for maintaining the integrity and functionality of electric motors while minimizing the risk of overloads and short circuits.

Product Information

Standard Information

• Brand: EATON
• Part Number: C-HHMCP250C5WD01

Technical Specifications

• Type: HMCP
• GTIN: 00786679014479
• Dimensions: 4.06 inches L x 4.13 inches W x 1 inch H
• Number Of Poles: 3
• Voltage Rating: 600 VAC, 250 VDC
• Frame: J
• Connection Type: Line/Load
• Amperage Rating: 250 A
• Series: C Series
• Trip Range: 450 to 900
• Trip Type: Magnetic
• Enclosure Type: NEMA 5
• Minimum Order Qty: 1
• UPC: 786679014479
• UNSPSC: 39121616
• Order Interval: 1
• Compliance: ARRA, Buy American Act, RoHS Compliant, CSA Certified, UL Listed
• Application: Circuit Protection
• Manufacturer: EATON
