Eaton HMCP007C0C C Series Type HMCP Motor Circuit Protector 600 VAC 250 VDC 7 A 3 Poles Magnetic Trip

Product Description

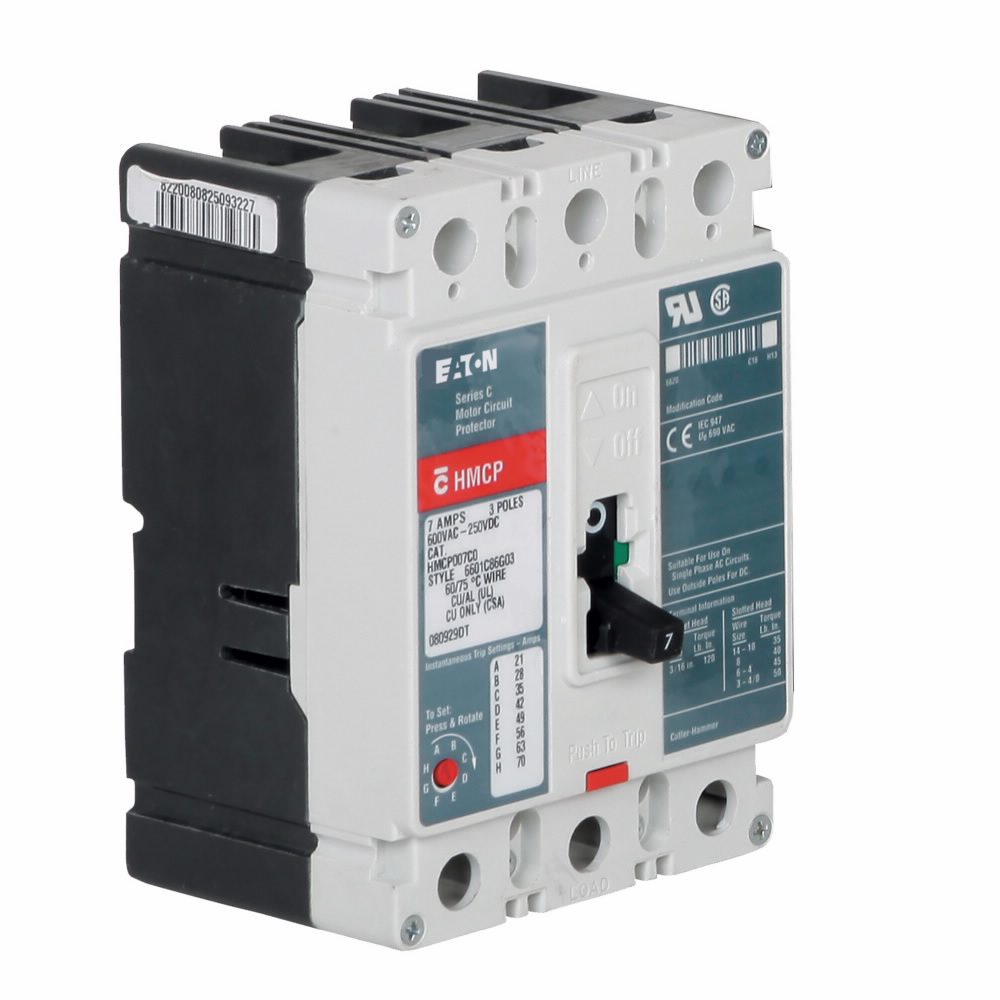

The Eaton HMCP007C0C is a molded case circuit breaker with a current rating of seven amps. This type of motor circuit protector is designed for both AC and DC applications, covering voltage ratings of six hundred volts alternating current and two hundred fifty volts direct current. The device features a three-pole configuration and is suitable for installations requiring reliable overload and short-circuit protection.

• Current Rating: 7 A
• Voltage Rating: 600 VAC, 250 VDC
• Application: Electrical assemblies and panels

Product Highlights

This breaker is designed to provide reliable protection for motors and other electrical equipment. Its magnetic trip mechanism reacts quickly to overloads, helping to prevent equipment damage.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: HMCP007C0C
• GTIN: 00786679150801
• UPC: 786679150801
• Number of Poles: 3
• Trip Type: Magnetic
• Dimensions: 8 inches length x 5 inches width x 5 inches height
• Standards: UL 489, CE Certified, CSA C22.2 No. 5.1, IEC 157-1
• Country of Origin: Dominican Republic
