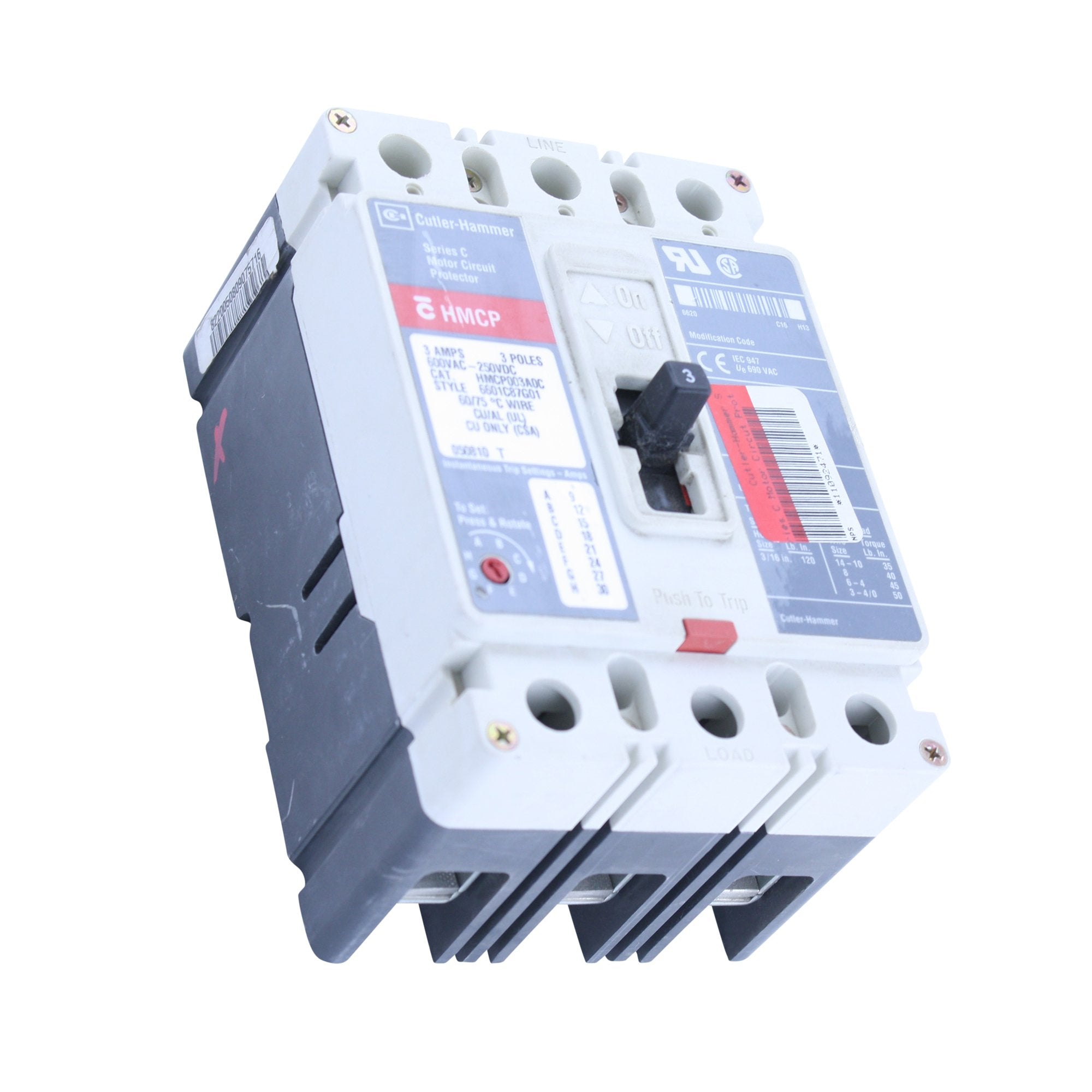

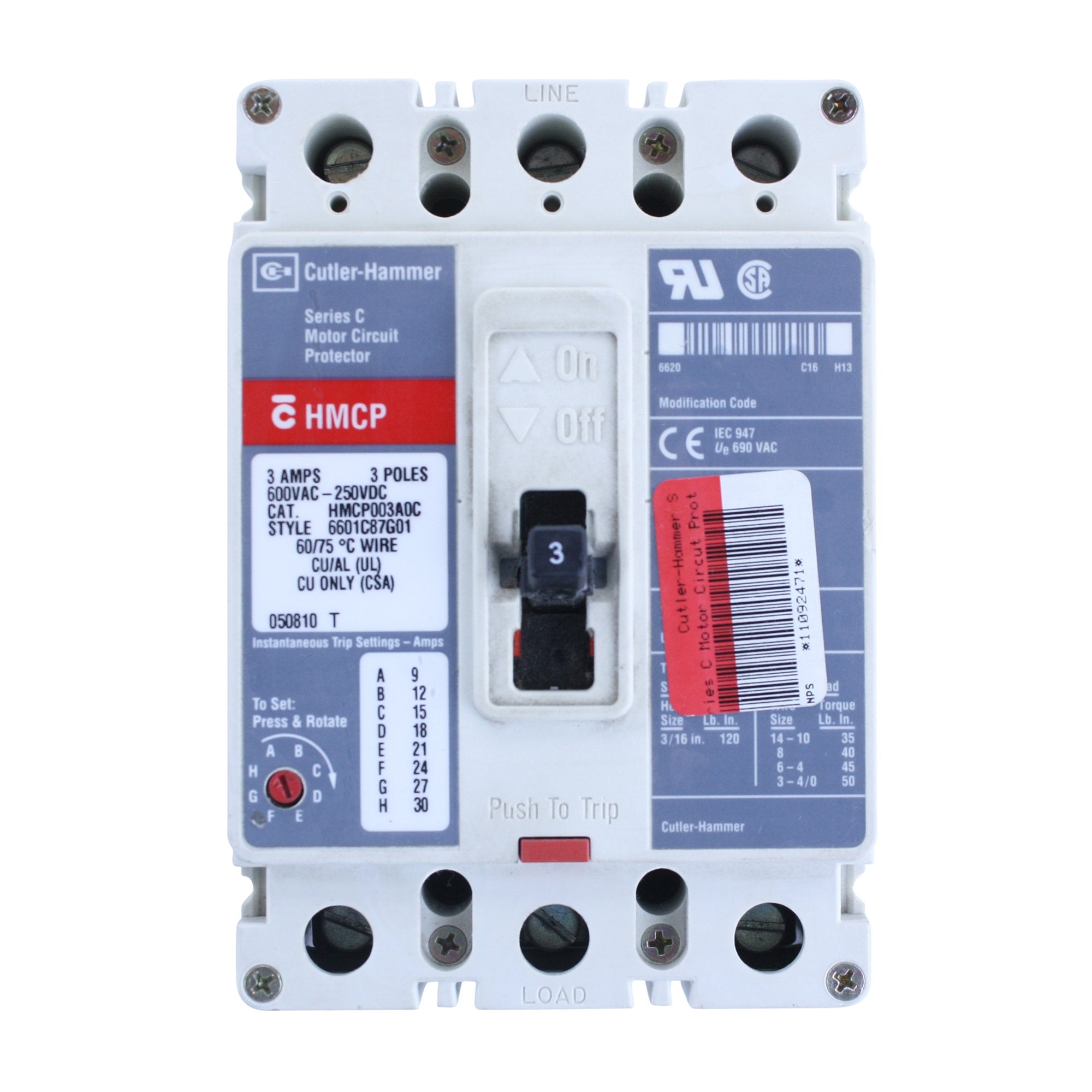

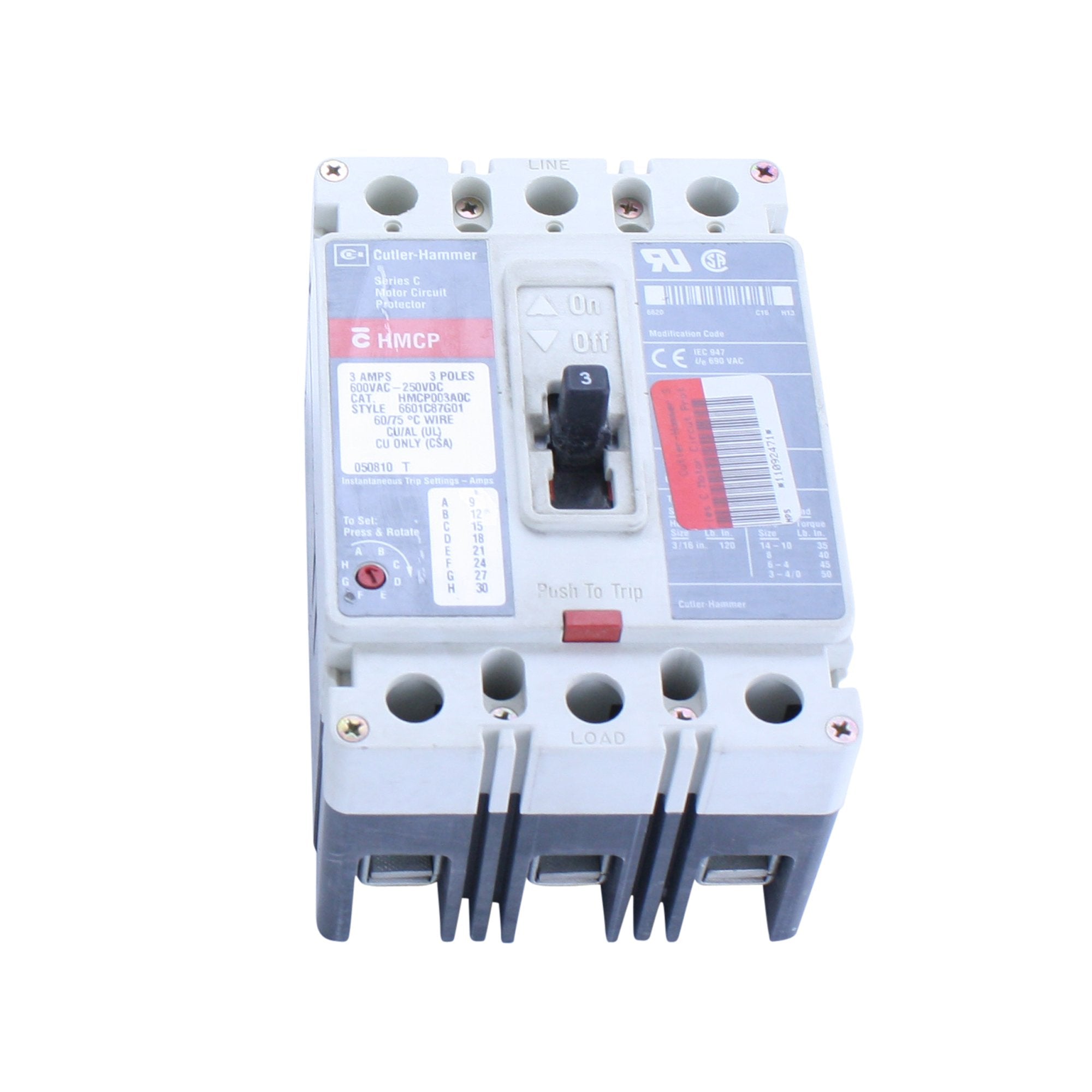

Eaton HMCP003A0C Molded Case Circuit Breaker Accessory Motor Circuit Protector 3 A

Product Description

The Eaton HMCP003A0C molded case circuit breaker accessory motor circuit protector is designed for electrical and machinery OEMs. This three-pole, 3 A motor circuit protector from the Series C family incorporates innovation with high reliability. It provides motor protection when used with a contactor.

• Provides phase loss and phase unbalance protection
• Thermal memory prevents immediate restart after trip
• High load alarm LED status indicator provides early warning

Product Highlights

This Eaton motor circuit protector offers reliable branch circuit and motor protection, eliminating the need for a motor overload relay.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HMCP003A0C
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: HMCP003A0C
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Current Rating: 3 A
• Number of Poles: 3
• Standard: UL Listed,CSA Certified,Contact Manufacturer
• UPC: 786679150795
• GTIN: 00786679150795
• Item Type: Molded case circuit breaker accessory
• Connection Type: Line/Load Terminal
• Enclosure Type: NEMA 0
• Frame: F
• Series: C Series
• Trip Range: 9 to 30 A
• Type: Type HMCP
• Voltage Rating: 600 VAC, 250 VDC
• Trip Type: Magnetic
• Amperage: 3 A
• Poles: Three-pole
• Voltage: 600 VAC 250 VDC
• Product Length/Depth: 8 in
• Product Height: 5 in
• Product Width: 5 in
• Certifications: UL Listed CSA Certified
• Global Catalog: HMCP003A0C
• Frame size: Frame J-K
• Magnetic trip range: 9-30 A
• Terminal material: Non-aluminum
• Mounting: Panel
• Volts DC: 250
• Amps: 3
• Volts AC: 600
• Product Type: CIRCUIT_BREAKER
• Model / MPN: HMCP003A0C
• UL Standard: 489
• Approvals: CE, CSA, UL
