Product Description

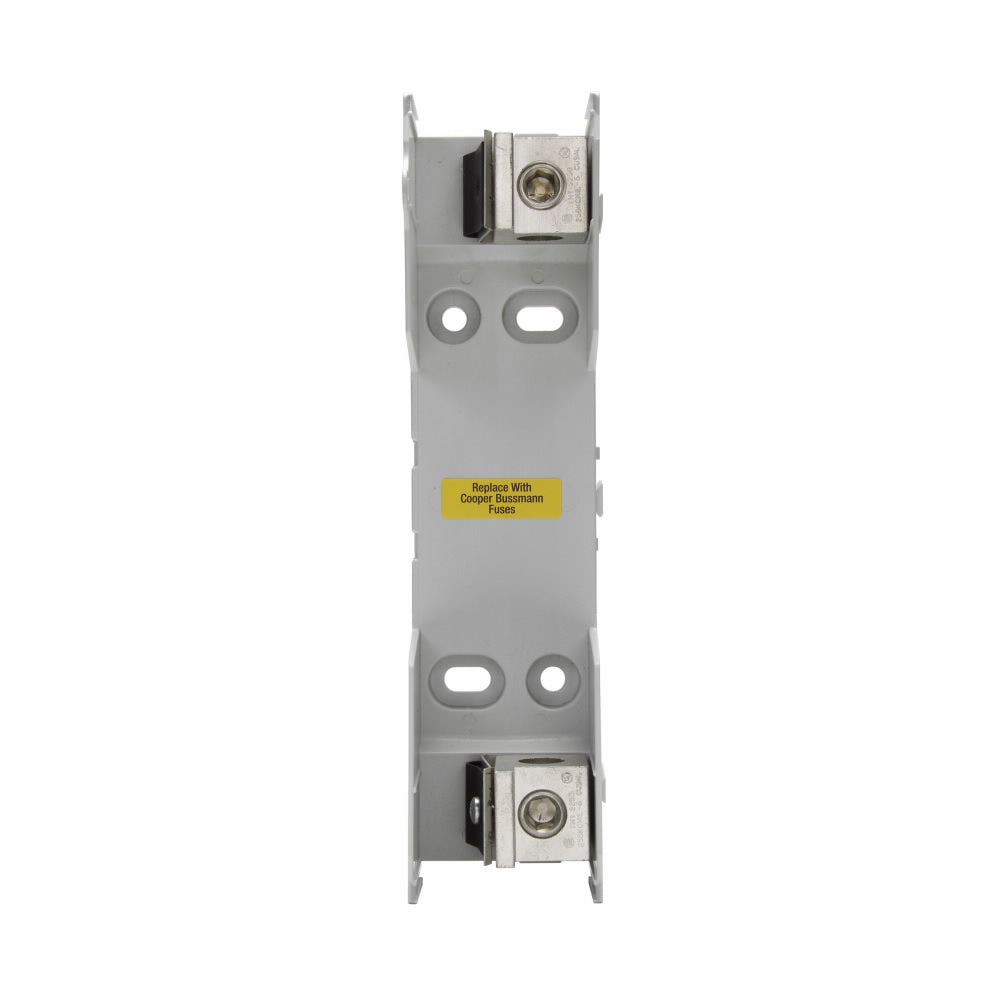

The Eaton HM60200-1CR is a Bussmann fuse block designed for modular applications. This fuse holder accommodates a voltage rating of six hundred volts and an amperage rating between one hundred ten and two hundred amps. It is essential for managing electrical assemblies and panels. The product offers significant space savings in panel layouts while simplifying installation processes.
- Modular design for simplified assembly
- Compatible with knife blade cartridge fuses
- Temperature rating from negative forty to one hundred twenty degrees Celsius
Product Highlights
The Bussmann HM60200-1CR modular fuse block features integral dovetails that allow for assembly of multiple poles, enhancing application flexibility.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171238729
Technical Specifications
-
Amperage Rating: 110 to 200 A
-
Voltage Rating: 600 V
-
Temperature Rating: -40 to 120 deg C
-
Dimensions: 7.3 in L x 2.6 in W x 3.8 in H
-
Material: Thermoplastic
-
Mounting Type: Hole
-
Series: HM Series
-
Number of Poles: 1
-
Class: H/K
