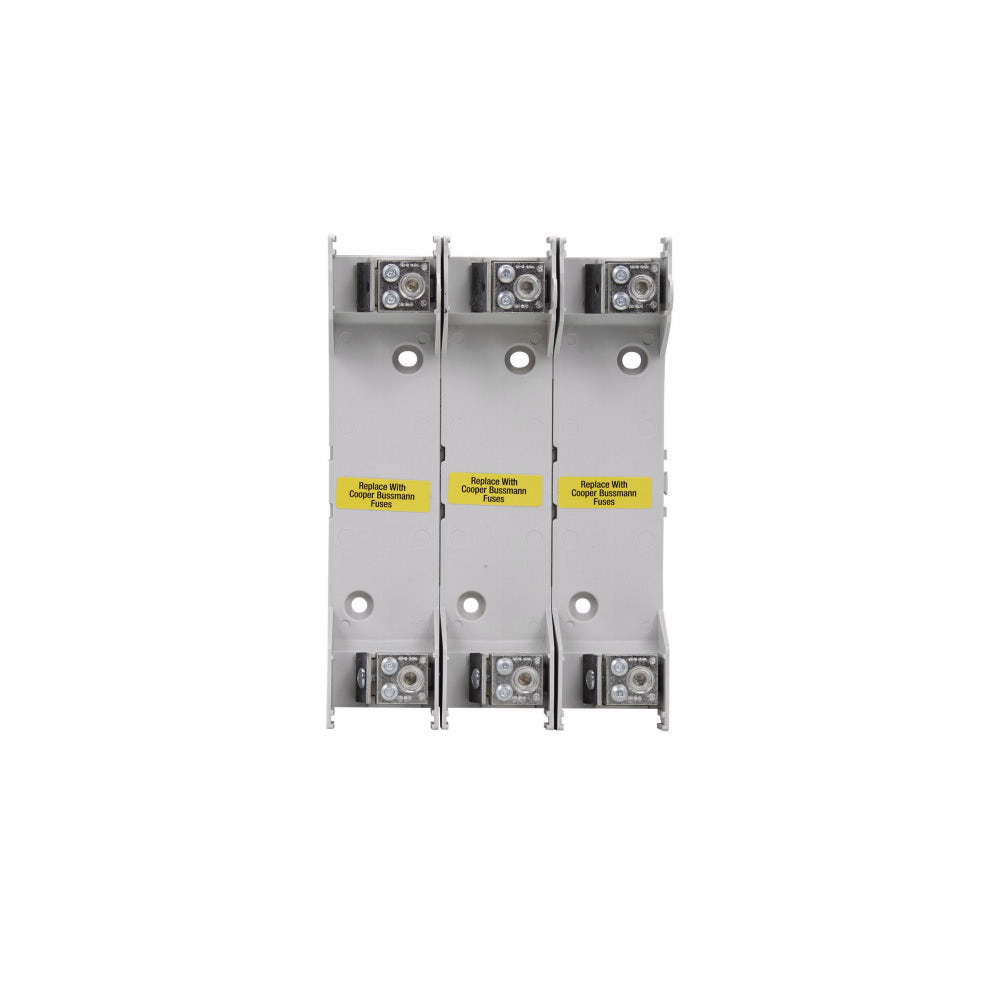

Eaton HM60100-3CR Busmann 100 Amp Class H Fuse Holder 600V -3 Pole

Product Description

The Eaton HM60100-3CR is a modular fuse block designed for use in electrical assemblies. This fuse holder supports a voltage rating of six hundred volts and an amperage range from seventy to one hundred amps.

• Three-pole design for reliable connections.
• Compatible with knife blade cartridge fuses.
• Temperature rating spans from negative forty to one hundred twenty degrees Celsius.

Product Highlights

This modular fuse block simplifies panel layouts and enhances installation efficiency.

Product Information

Standard Information

• Manufacturer: Eaton
• Class: H/K

Technical Specifications

• Amperage Rating: 70 to 100 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Dimensions: 6 inches L x 6 inches W x 2.8 inches H
• Material: Thermoplastic
• Mounting Type: Hole
• Number of Poles: 3
• Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant, UL 94-V-0 Flammability Rating
• Suitable For Use With: Knife Blade Cartridge Fuse
• Temperature Rating: -40 to 120 degrees Celsius
• Voltage Rating: 600 V
