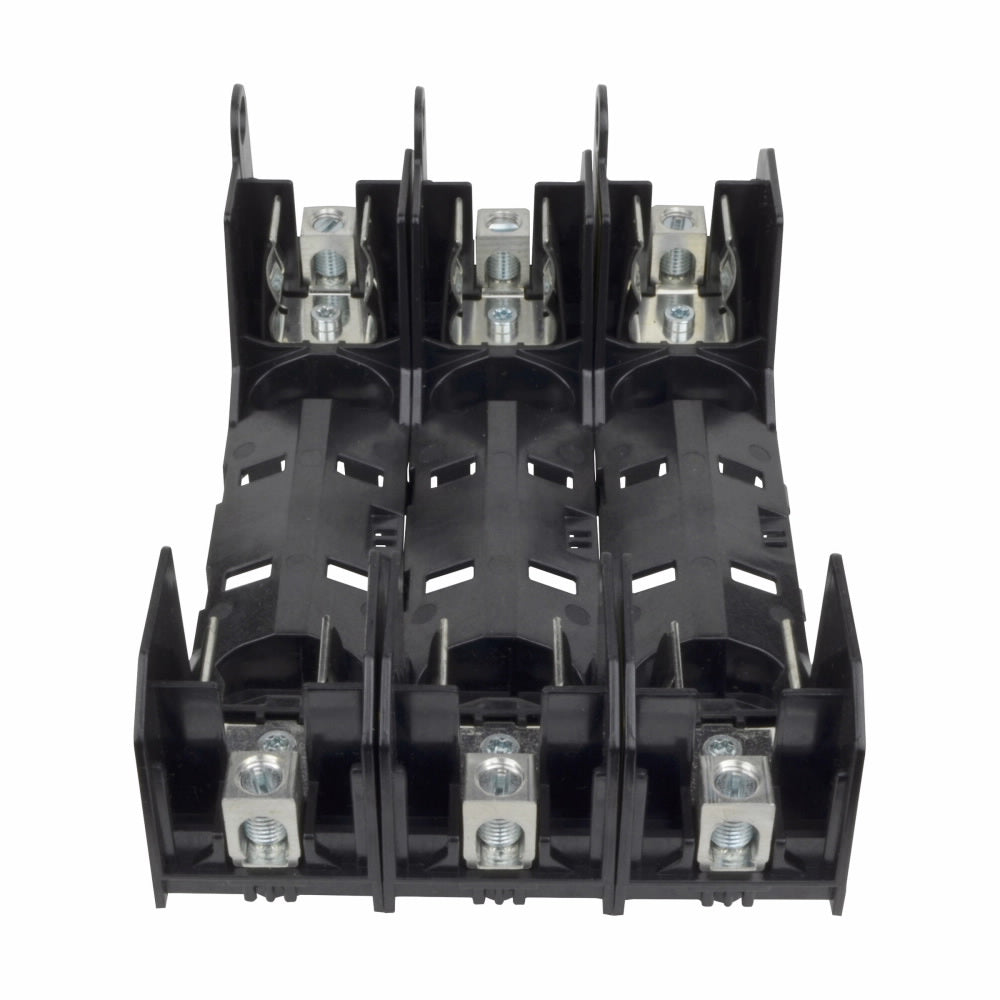

Eaton HM60060-3CR Bus Fuse Block Class H, 600V 60A, 3 Pole

Product Description

The Eaton HM60060-3CR bus fuse block is designed to provide reliable fuse protection in electrical applications. This modular fuse block supports 600 volts and an amperage range from thirty-five to sixty amps. It features three poles for better circuit management.

• Supports wire sizes from fourteen to two AWG copper and eight to two AWG aluminum.
• DIN rail or panel mounting options provide flexibility for different setups.
• Designed to operate in temperatures from negative forty to one hundred twenty degrees Celsius.

Product Highlights

Efficiently reduce inventory and assembly time with the modular design. Ideal for panel installations and electrical assembly projects.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: HM60060-3CR

Technical Specifications

• Amperage Rating: 35 to 60 A
• Voltage Rating: 600 V
• Number of Poles: 3
• Connection Type: Box Lug
• Dimensions: 6.8 in L x 4.5 in W x 2.6 in H
• Fuse Length: 5-1/2 in
• Fuse Diameter: 1.06 in
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Temperature Rating: -40 to 120 deg C
• Class: H/K
• Suitable For Use With: NOS Series Fuse
• Standards/Approvals: CE Certified, CSA File No.47235-6225-01, RoHS Compliant, UL File No.E1485 Guide IZLT
