Eaton HM2R24 Handle Mechanism Rotary Handle 24 in

Product Description

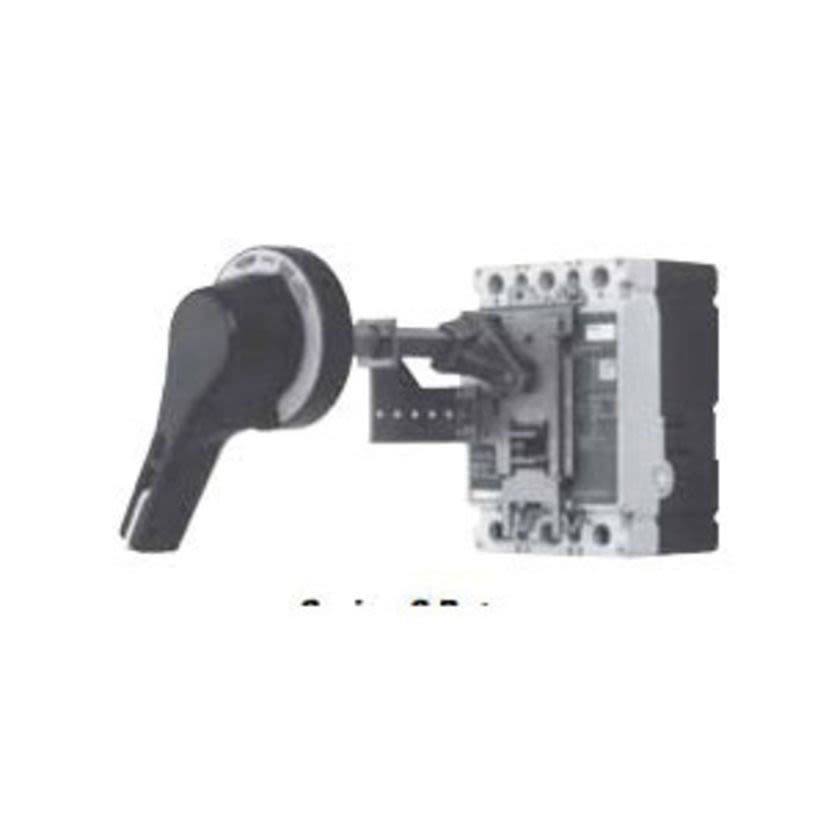

The EATON HM2R24 handle mechanism is a rotary handle designed for through-the-door mounting. It is suitable for use with C Series J Frame molded case circuit breakers. It has proven user acceptance for over 20 years and meet or exceed North American standards. It includes a handle "lock off" to prevent turning the breaker on while in the Off position.

• All rotary handle mechanisms include a handle "lock off" to prevent turning the breaker on while in the Off position and indicate on/Off/tripped/reset positions

Product Highlights

The EATON HM2R24 handle mechanism is designed for use with C Series J Frame molded case circuit breakers.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HM2R24
• Country of Origin: USA

Technical Specifications

• UNSPSC: 39121616
• Application: Circuit Protection Applications
• Shaft Length: 24
• Suitable For Use With: C Series J Frame Molded Case Circuit Breaker
• Manufacturer: Eaton
• Component: Handle Mechanism
• IP/NEMA Rating: NEMA 1, NEMA 3R, NEMA 12
• Main function: Handle
• Product series / family name: Handle Mechanisms
• Functions: Through-the-Door Handle Mechanism 24inch / 609.6mm
• Technical compatibility with: J-Frame 6648C22G01 6648C23G21 4217B37G07 WHM2R24 WHM2R24X
• Manufacturer product status: Commercialized
• Brand: EATON
• MFG #: HM2R24
• Werner Part #: 3803526
• UPC: 786679165140
