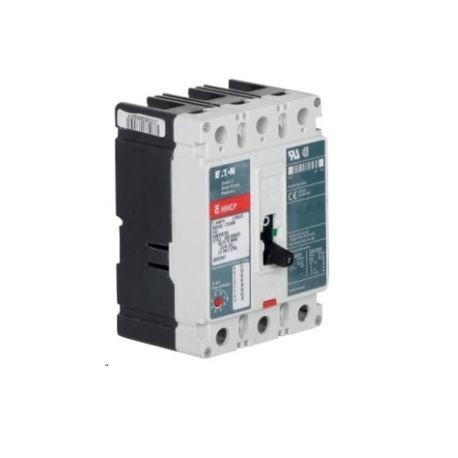

EATON HM2P400D5 C Series HM2P Motor Circuit Protector, 600 VAC, 250 VDC, 400 A, 2 Poles, Magnetic Trip

Product Description

The EATON HM2P400D5 is a C Series Motor Circuit Protector. This device is designed for use in electrical systems requiring connectivity at high voltages. It operates at six hundred volts alternating current (VAC) and two hundred fifty volts direct current (VDC) with a maximum current rating of four hundred amperes.

• Two poles for dual circuit protection
• Magnetic trip mechanism for overload protection
• Durable NEMA 5 enclosure for a variety of environments

Product Highlights

This motor circuit protector ensures safe operation in demanding electrical applications.

Product Information

Standard Information

• Brand: EATON
• MPN: HM2P400D5

Technical Specifications

• Amperage Rating: 400 A
• Number Of Poles: 2
• Connection Type: Line/Load
• Dimensions: 4.1 in L x 5.5 in W x 10.13 in H
• Enclosure Type: NEMA 5
• Voltage Rating: 600 VAC, 250 VDC
• GTIN: 00786679034361
• Type: HM2P
• Frame: K
• Series: C Series
• Trip Type: Magnetic
• Trip Range: 500 to 1000
• Order Interval: 1
• UNSPSC: 39121616
• UPC: 786679034361
• Minimum Order Qty: 1
• Standard & Approvals: ARRA, BuyAmerican Act, RoHS Compliant, CSA Certified, UL Listed
• Manufacturer: EATON
