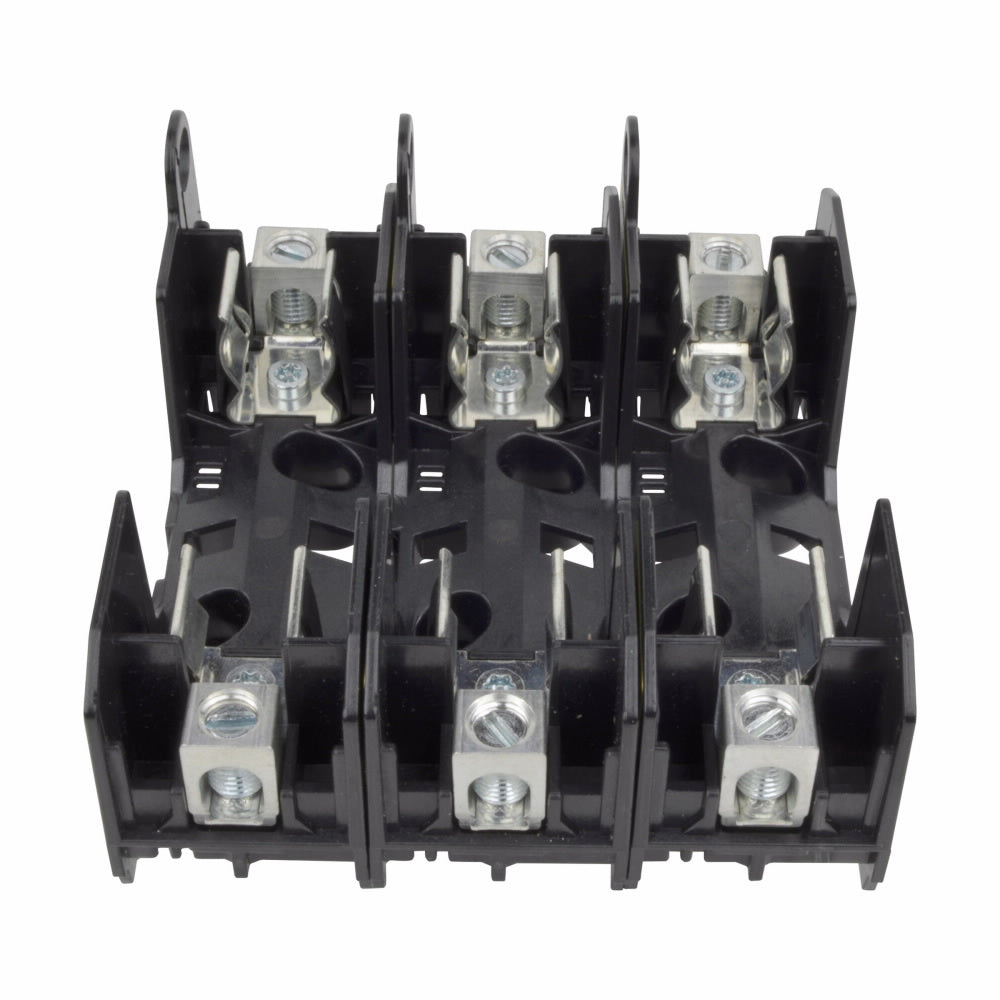

Eaton HM25060-3CR BUS FUSE BLOCK CLASS-H, 250V 60A, 3-POLE

Product Description

The Eaton HM25060-3CR is a Bussmann bus fuse block designed for modular applications. This 250 volt, 60 amp, three-pole fuse block is suitable for various electrical assemblies and panel uses. It combines a fuse block and power distribution functions in one unit, offering space-saving benefits and ease of installation.

• Modular design for easy assembly without tools
• DIN rail and panel mount compatible
• Suitable for H/K class fuses

Product Highlights

The Eaton HM25060-3CR allows for quick assembly with snapped together blocks, reducing installation time and labor. It supports a wide temperature range and can manage significant amperage ratings, making it useful in various industrial settings.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171251135

Technical Specifications

• Amperage Rating: 35 to 60 A
• Voltage Rating: 250 V
• Class: H/K
• Connection Type: Box Lug
• Number of Poles: 3
• Dimensions: 4.2 in L x 4 in H
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Temperature Rating: -40 to 120 deg C
• Suitable For Use With: NON, NOS Series Fuse
• Standards/Approvals: CE Certified, CSA File No.47235/622501, RoHS Compliant, UL File No.E14853 Guide IZLT
