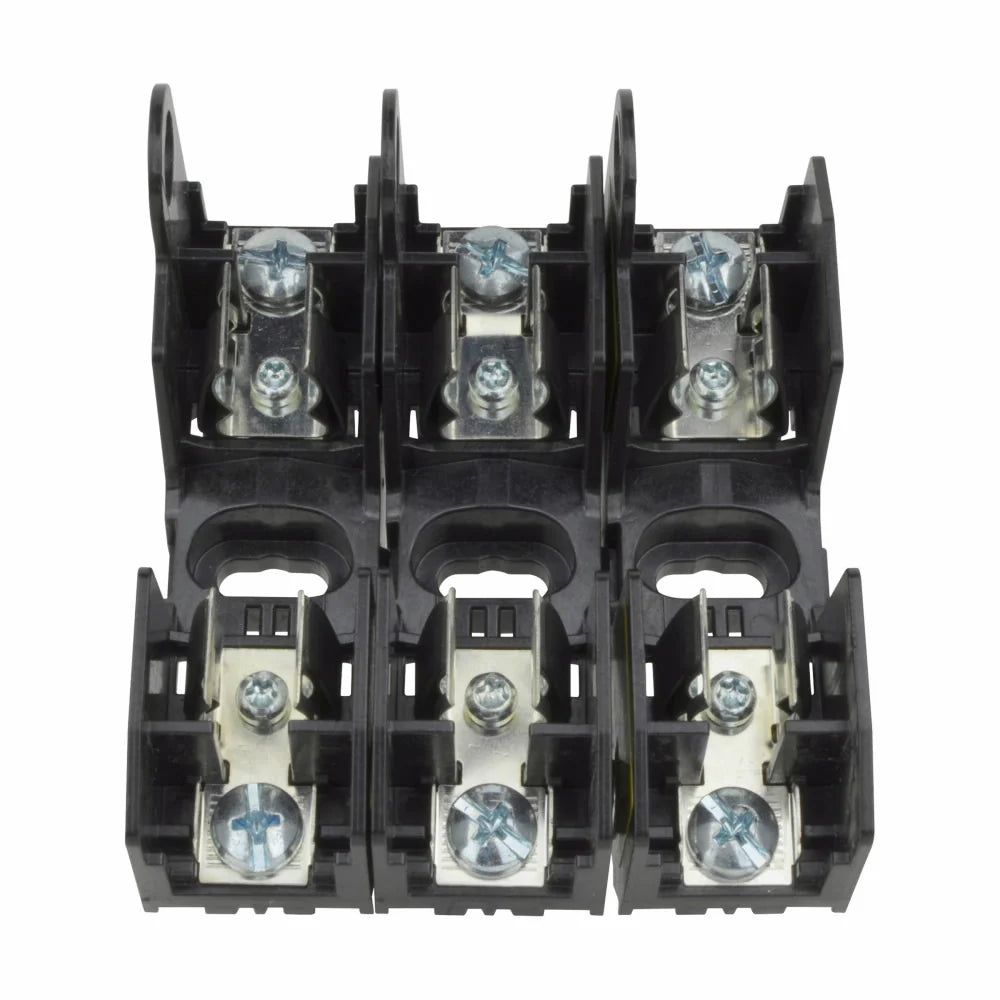

Eaton HM25030-3SR BUS Fuse Block Class H, 250V 30A, 3 Pole (4)

Product Description

Eaton HM25030-3SR is a modular BUS fuse block designed for electrical systems. This fuse block operates at a voltage of two hundred fifty volts and an amperage rating of zero to thirty amps. It has three poles and is classified as a Class H/K device.

• Suitable for use with NON series fuses
• Designed for mounting on DIN rails or panels
• Temperature rating from negative forty to one hundred twenty degrees Celsius

Product Highlights

This product offers versatile and tool-less assembly, making it ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171251273

Technical Specifications

• Amperage Rating: 0 to 30 A
• Application: Electrical Assemblies, Panels, and EOEMs Applications
• Class: H/K
• Dimensions: 3.2 in L x 2.9 in W x 1.4 in H
• Fuse Diameter: 0.56 in
• Fuse Length: 2 in
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Number of Poles: 3
• Voltage Rating: 250 V
• Temperature Rating: -40 to 120 deg C
• Standards/Approvals: CE Certified, CSA File No.47235-6225-01, RoHS Compliant, UL File No.E1485 Guide IZLT
