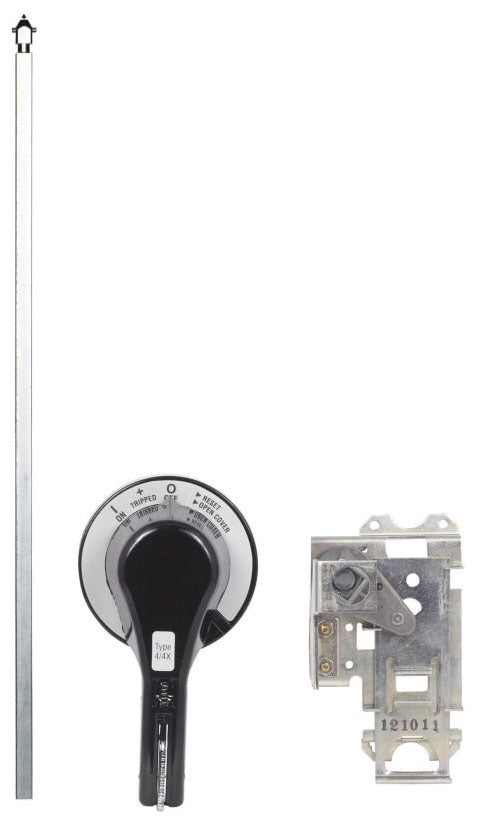

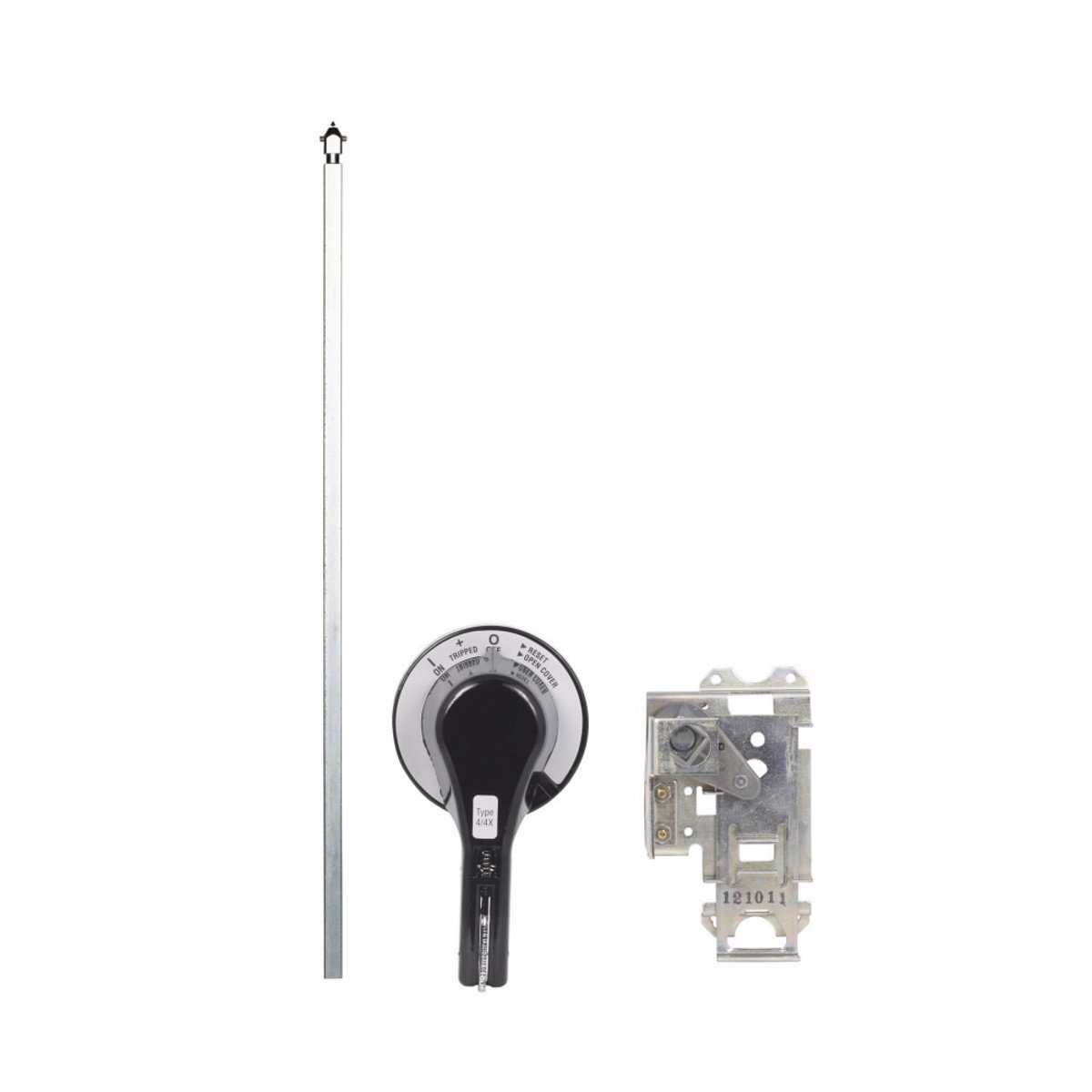

Eaton HM1R24 Handle Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle, Through-The-Door Handle Mounting, For Use With C Series F-Frame Molded Case Circuit Breaker

Product Description

Eaton HM1R24 is a handle mechanism designed for molded case circuit breakers. This product features a NEMA one, three R, and twelve rating, suitable for various commercial and institutional applications.

• Includes a handle lock-off to prevent accidental operation.
• Compatible with C series F-frame molded case circuit breakers.
• Dimensions are four and one-fourth inches by twenty-eight and one-half inches by nine inches.

Product Highlights

The Eaton HM1R24 provides a reliable solution for accessing circuit breakers through a door while ensuring safety during operation.

Product Information

Standard Information

• Brand: Eaton
• Application: Circuit Protection Applications

Technical Specifications

• Catalog Number: HM1R24
• NEMA Rating: NEMA 1/3R/12
• Handle Operation: Rotary Handle
• Shaft Length: Twenty-four inches
• Manufacturer Part Number: HM1R24
• Standards/Approvals: CSA Certified, UL File No. E64983
• Suitable For Use With: C Series F-Frame Molded Case Circuit Breaker
• Country of Origin: United States
