Eaton HM1R16X F Frame Series C Rotary Handle 16 in

Product Description

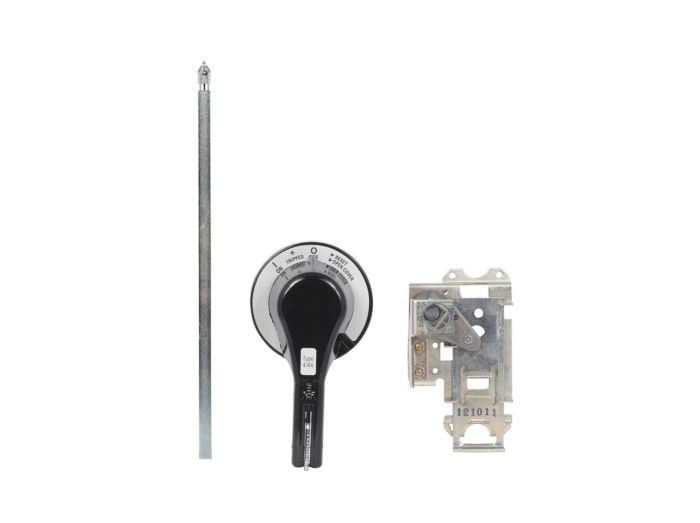

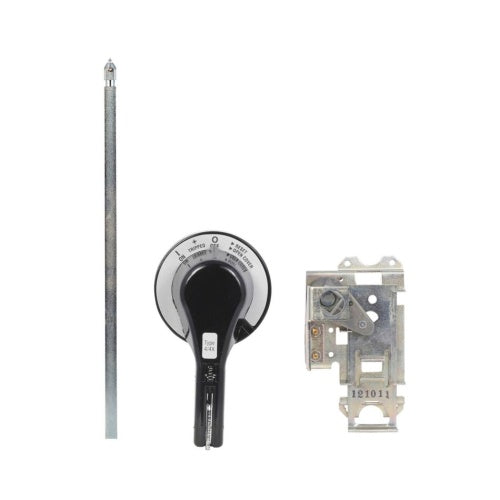

The Eaton HM1R16X is a Series C rotary handle mechanism with a 16 inch shaft length, designed for F-frame breakers. It is a through-the-door handle mechanism. This rotary handle kit includes the handle, shaft, and operating mechanism.

• NEMA Type 4/4x rated
• 16 in shaft length
• For F-frame breakers

Product Highlights

The Eaton HM1R16X rotary handle is suitable for disconnect operating and NEMA 4X enclosure applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: HM1R16X
• Country of Origin: USA

Technical Specifications

• IP/NEMA Rating: NEMA 4X, NEMA 4
• Manufacturer: Eaton
• Component: Handle Mechanism
• Mechanism Type: Disconnect Operating
• Enclosure Application: NEMA 4X
• Handle/Operation: Rotary Lever
• Handle Included: Included
• Handle Mounting Position: Through-Door
• For Breaker Type: F Frame Breaker
• Handle to Device Connection: Rigid Shaft
• Shaft Length: 16 in.
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: HM1R16X
• Family Series: Eaton Circuit Breakers
• Accessory Type: Handle Mechanism
