Eaton HM1R16 Molded Case Circuit Breaker Accessory Handle Mechanism Through-the-Door Handle Mechanism F-Frame Frame J-K Rotary Series C 16 in

Product Description

The Eaton HM1R16 is a handle mechanism designed for molded case circuit breakers. This product offers a through-the-door mounting feature for easy access and control. It is suitable for use with C Series F-Frame molded case circuit breakers, ensuring safety and reliability.

• Designed for C Series F-Frame circuit breakers
• Through-the-door handle mounting for convenient operation
• Metal construction for durability

Product Highlights

The Eaton HM1R16 handle mechanism is ideal for commercial and institutional buildings. It enhances the operation of circuit breakers while maintaining safety protocols.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: HM1R16

Technical Specifications

• Dimensions: 4-1/2 inches x 19 inches x 9-1/4 inches
• Shaft Length: 16 inches
• Material: Metal
• NEMA Rating: NEMA 1/3R/12
• Handle Operation: Rotary Handle

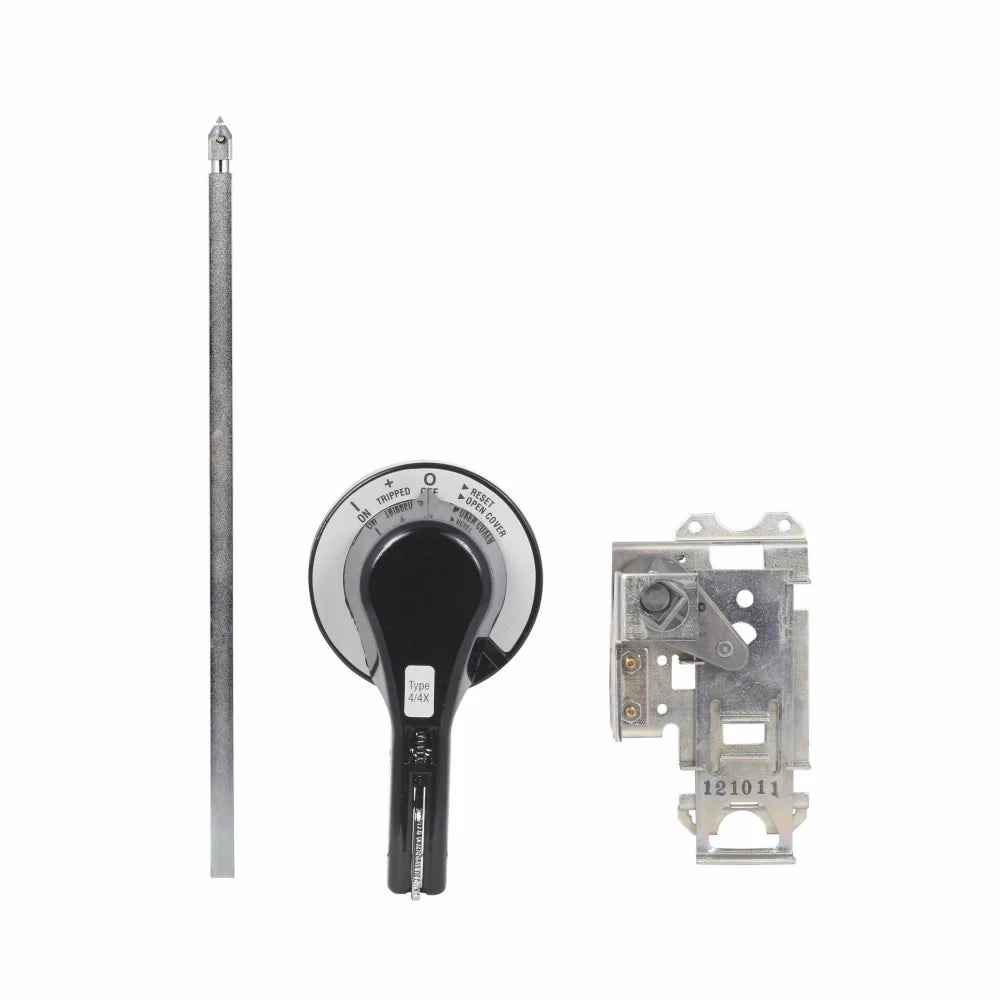

• Includes: Black Rotary Lever Handle, Shaft Support, 16 inch Rigid Shaft
• Standards/Approvals: CSA Certified, UL Listed
• Suitable For Use With: C Series F-Frame Molded Case Circuit Breaker, Molded Case Switch and Motor Circuit Protector
