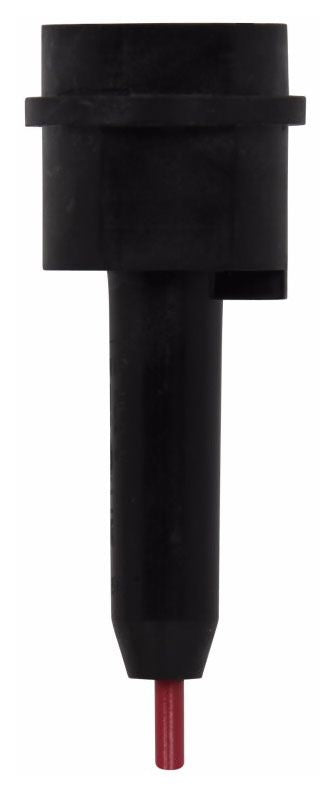

Eaton HLQ-3-2/10 Fuse Holder

Product Description

The EATON HLQ-3-2/10 is a compact fuse holder designed to secure and protect cartridge fuses in low-voltage electrical circuits. It provides a reliable termination point for overcurrent protection devices in panel boards, control cabinets, and distribution equipment. Weighing 0.038 pounds, the HLQ-3-2/10 is a lightweight component suited for space-constrained installations. Licensed electricians and industrial control technicians typically specify this type of holder when building or servicing fused disconnect and branch circuit assemblies.

This fuse holder is intended for use in residential, commercial, and light industrial electrical applications where cartridge-style fuse protection is required. It is commonly installed inside control panels, motor control centers, and electrical enclosures. The compact form factor makes it well suited for retrofit and new-construction panel work where mounting space is limited.

Key Features

• Compact, lightweight construction at 0.038 pounds for space-constrained panel installations
• Designed to accept cartridge-style fuses for overcurrent protection
• Suitable for use in control panels, motor control centers, and distribution enclosures
• OEM-style form factor supports straightforward replacement and retrofit work

Compatibility

Designed as an OEM-style replacement fuse holder for cartridge fuse applications in electrical control and distribution equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lockout/tagout the circuit before removing or installing the fuse holder. Verify that the replacement holder matches the fuse size and ampere rating required by the circuit design. Do not install or remove fuses while the circuit is energized.

Technical Specifications

• Weight: 0.038 pounds
• UPC: 05171274017

Standard Information

• Brand: EATON
• Manufacturer Part Number: HLQ-3-2/10
