Eaton HKD3400 HKD CB Comp. 3P 400A 60

Product Description

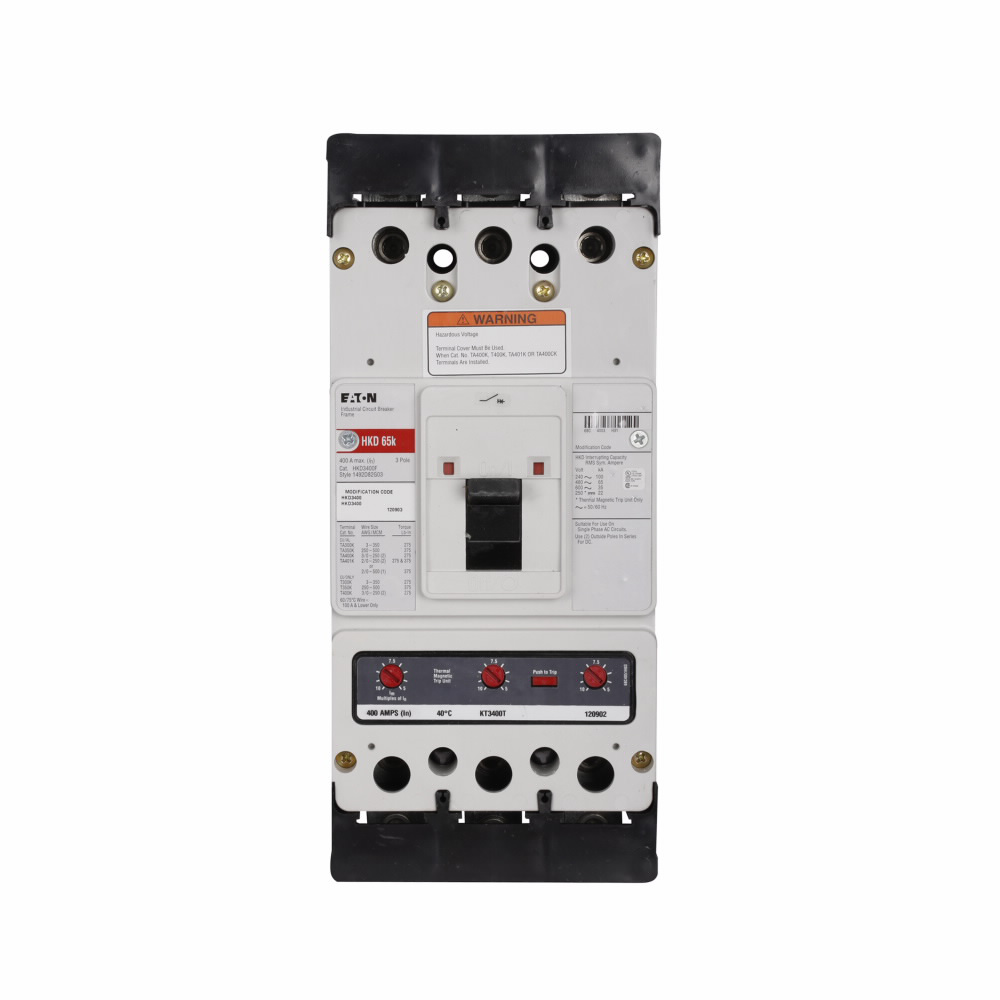

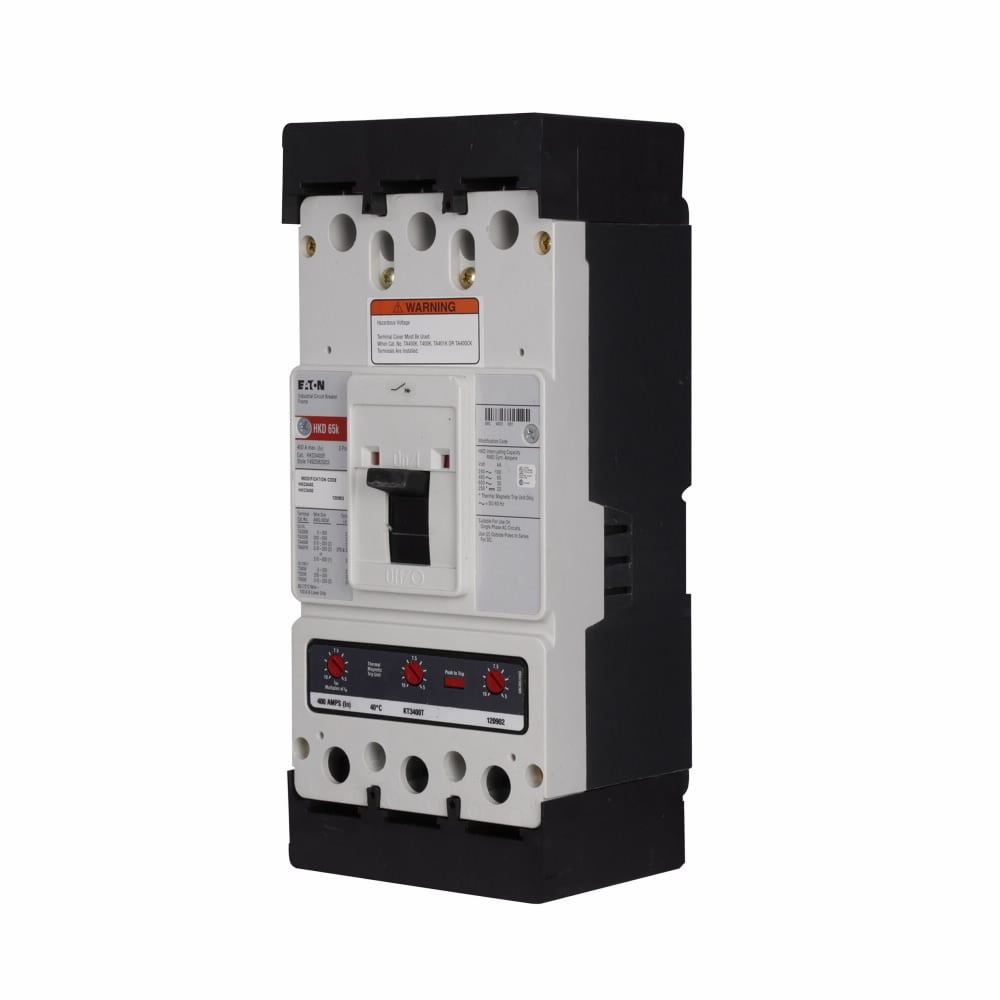

The Eaton HKD3400 is a three-pole molded case circuit breaker with a current rating of four hundred amps. It operates at six hundred volts alternating current or two hundred fifty volts direct current. This breaker features both fixed thermal and fixed magnetic trip technologies, ensuring reliable operation in electrical assemblies, panels, and motor control centers.

• Three-pole design for versatile applications
• Current rating of four hundred amps
• High interrupting capacity of sixty-five kAIC at four hundred eighty volts and one hundred kAIC at two hundred forty volts

Product Highlights

The Eaton HKD3400 breaker is ideal for protecting electrical circuits. It meets UL standards and is suitable for a range of applications including panelboards and switchboards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer/Eaton

Technical Specifications

• Catalog Number: HKD3400
• Voltage Rating: 600 Vac, 250 Vdc
• Current Rating: 400 A
• Interrupt Rating: 65 kAIC at 480 Vac, 100 kAIC at 240 Vac
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Frame: K
• Dimensions: 4.1 x 5.5 x 5.5 inches
• Weight: 11.5 lbs
