Eaton HGLL5 1 1/2IN Grounding Bushing Insulated 150C 4-14 AL Lug

Product Description

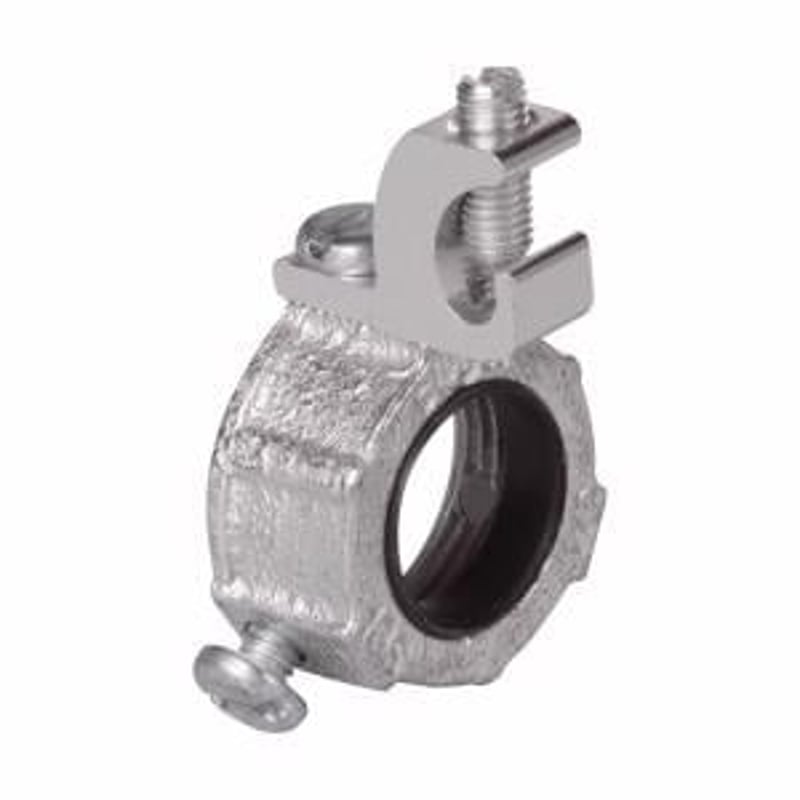

The Eaton HGLL5 is a 1 1/2 inch grounding bushing designed for use with rigid and IMC conduit systems. This insulating bushing features an aluminum lug suitable for wire sizes from #4 to 14 AWG. The malleable iron construction ensures durability, while its temperature rating reaches up to 150 degrees Celsius.

• Meets UL and cUL standards
• Threaded for easy installation
• Includes a resilient plastic liner for added protection

Product Highlights

This grounding bushing is ideal for grounding conduit in commercial and institutional buildings. It provides a reliable connection point for grounding conductors, ensuring safety and compliance with electrical codes.

Product Information

Standard Information

• Brand: Eaton
• MPN: HGLL5

Technical Specifications

• Type: Grounding Bushing
• Size: 1 1/2 inch
• Material: Malleable Iron Body, Plastic Throat Liner
• Temperature Rating: 150 degrees Celsius
• Connection Type: Threaded, Set Screw
• Dimensions: 2.3100 inches x 2.3100 inches x 0.8100 inches
• Applications: Suitable for commercial and institutional buildings
• Product Feature: Corrosion and temperature resistant, suitable for #4-14 AWG wire
