Product Description

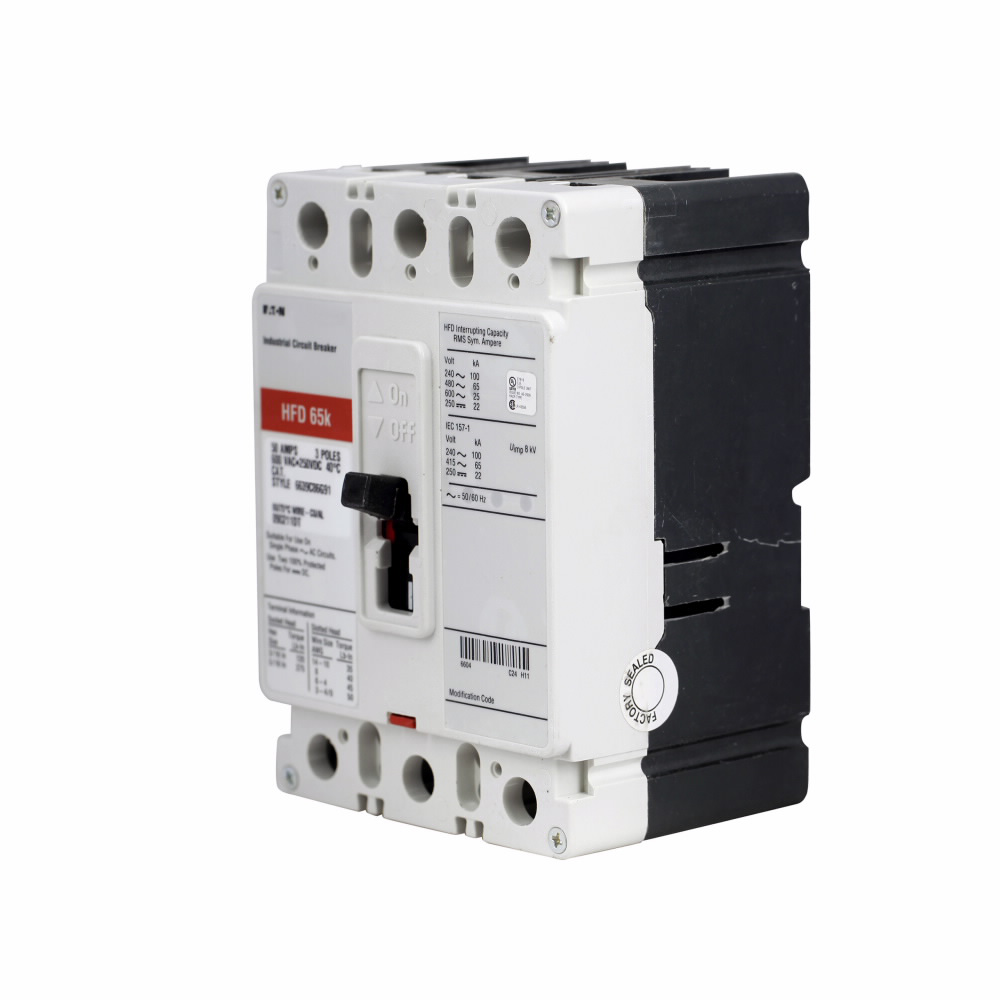

The Eaton HFD3015 is a series C molded case circuit breaker with a fixed thermal and magnetic trip system. It is designed for use in various applications, including panelboards and motor control centers. This three-pole circuit breaker operates at a current of fifteen amps and can handle voltage up to six hundred volts AC or two hundred fifty volts DC.
- Suitable for 50/60 hertz systems
- UL listed for safety and reliability
- Designed for load side terminal connections
Product Highlights
This circuit breaker provides dependable branch circuit protection and meets or exceeds industry standards for performance.
Product Information
Standard Information
-
Catalog Number: HFD3015
-
Manufacturer: Eaton
Technical Specifications
-
Type: Molded case circuit breaker
-
Frame Type: F
-
Height: 6 inches
-
Length: 3.38 inches
-
Weight: 4.33 pounds
-
Current Rating: 15 Amps
-
Voltage Rating: 600/250 VAC/VDC
-
Number of Poles: 3
-
Interrupt Rating: 65 kAIC
-
Frequency Rating: 50 Hz
-
Trip Type: Fixed Magnetic, Fixed Thermal
-
Applications: Electrical Assemblies and OEMs
-
Country of Origin: Dominican Republic
