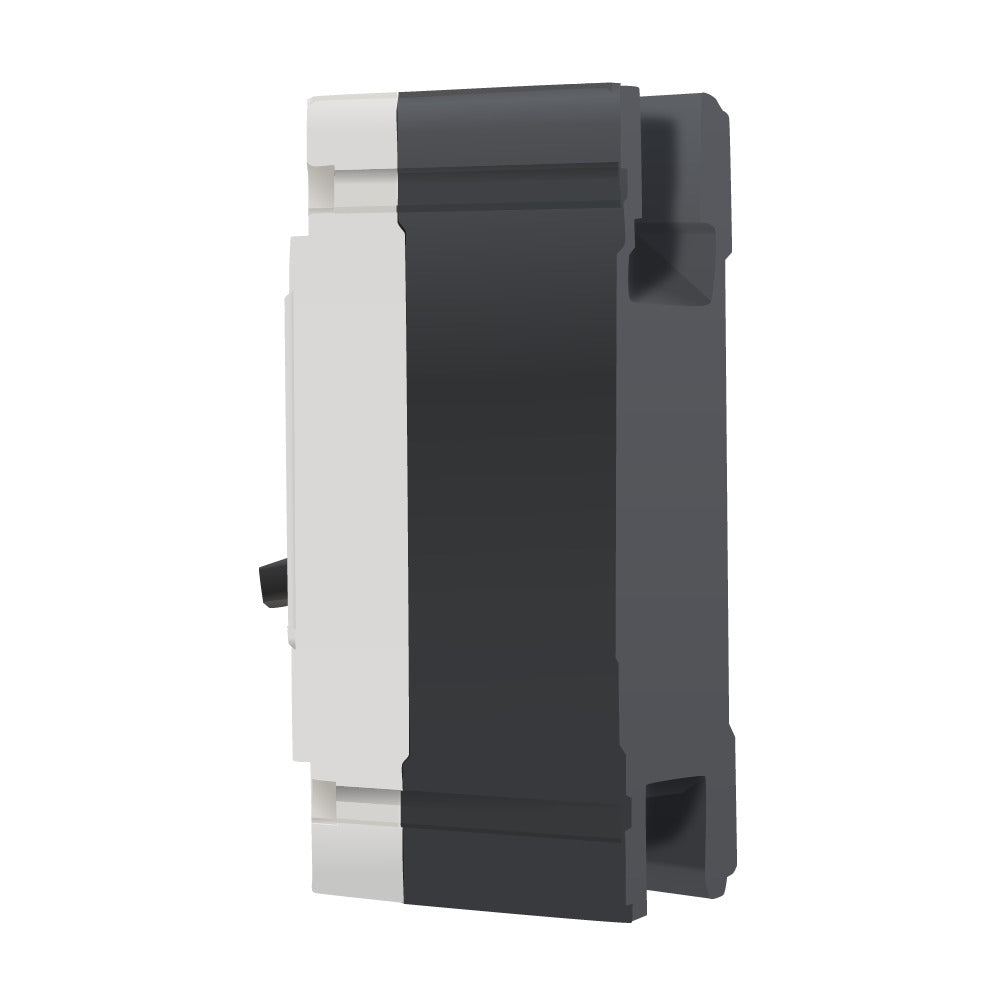

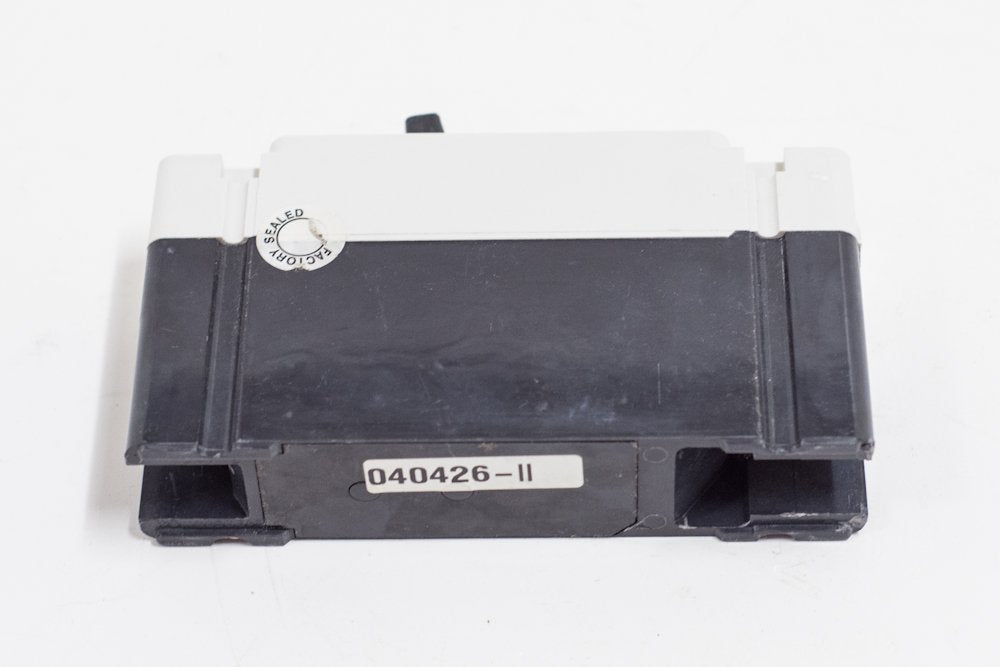

Product Description
The EATON HFD1030 Series C molded case circuit breaker is designed for dependable branch circuit protection in panelboards, switchboards, motor control centers, and busway applications. It is suitable for systems up to 347 VAC or 125 VDC. This thermal-magnetic breaker delivers reliable overcurrent protection and minimizes let-through energy during faults.
- Patented contact design features high speed blow-open action
- Suitable for reverse feed applications
- Fixed thermal, fixed magnetic trip type
Product Highlights
The Eaton HFD1030 circuit breaker is a 30A, single-pole breaker with a fixed thermal/fixed magnetic trip, ideal for electrical assemblies and OEM applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: HFD1030
-
Country of Origin: Dominican Republic
Technical Specifications
-
Catalog Number: HFD1030
-
Manufacturer: Eaton
-
Brand: Eaton / Cutler-Hammer
-
Country of Origin: Dominican Republic
-
Made in USA: No
-
Application: Panelboard, Switchboard, Motor Control Center, Busway, Electrical Assemblies and OEMs Applications
-
Current Rating: 30 A
-
Frame: F
-
Frequency Rating: 50/60 Hz
-
Interrupt Rating: 100 kAIC at 240 Vac
-
Number of Poles: 1
-
Standard: UL Listed
-
Item Type: Molded case circuit breaker
-
Trip Type: Fixed thermal, fixed magnetic
-
Voltage Rating: 347 Vac, 125 Vdc
-
Actuator Type: Handle
-
Connection Type: Load
-
Series: C Series
-
Temperature Rating: 40 deg C
-
Type: Type HFD
-
Wire Size: 14 to 1/0 AWG
-
AIC Rating: 65kA@277V
-
Mounting Style: Bolt-On
-

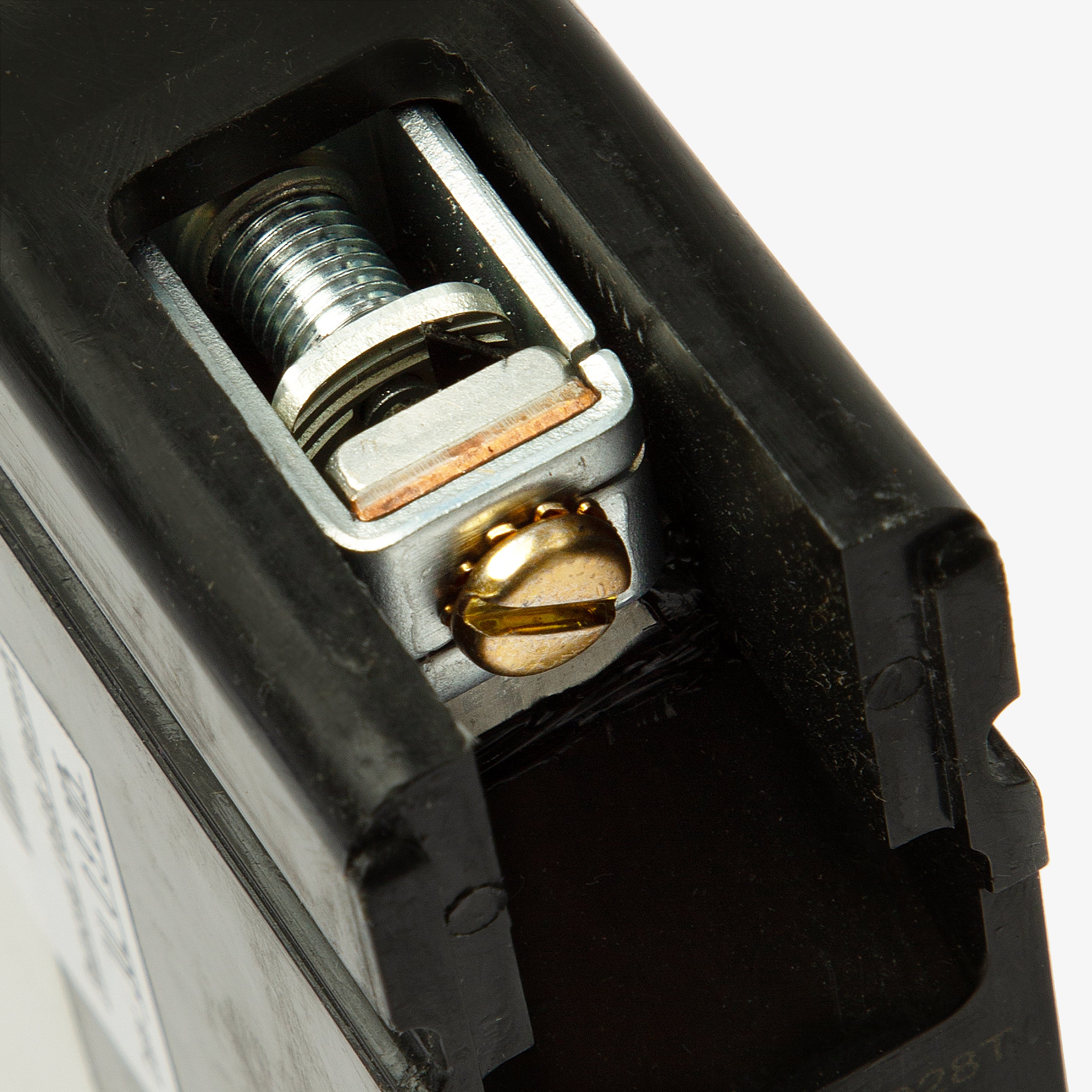

Terminal Type: Lugs
-
For Use With: Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-1/0 AWG (Cu/Al)
-
Max Wire: 1/0 AWG
-
Min Wire: 14 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock
-
Accessories: Load Side Lug
-
Standards: HACR, HID, NEMA AB-1, UL 489
-
Approval: CE, CSA, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, HID Rated, Non-Interchangeable Trip
-
Product Length/Depth: 3.38 in
-
Product Height: 6 in
-
Product Width: 1.38 in
-
Circuit breaker type: HFD
-
Circuit breaker frame type: Complete breaker
-
Terminals: Load side
-
Standards/Approvals: AS 2184|BS 4752|CSA C22.2/5|Federal Specification WC-375B|HACR Rated|IEC 60947-2|SABS 156|SEV 157-1|UL 489|VDE 0660
-
UPC: 786679175286
-
Phase: 1
