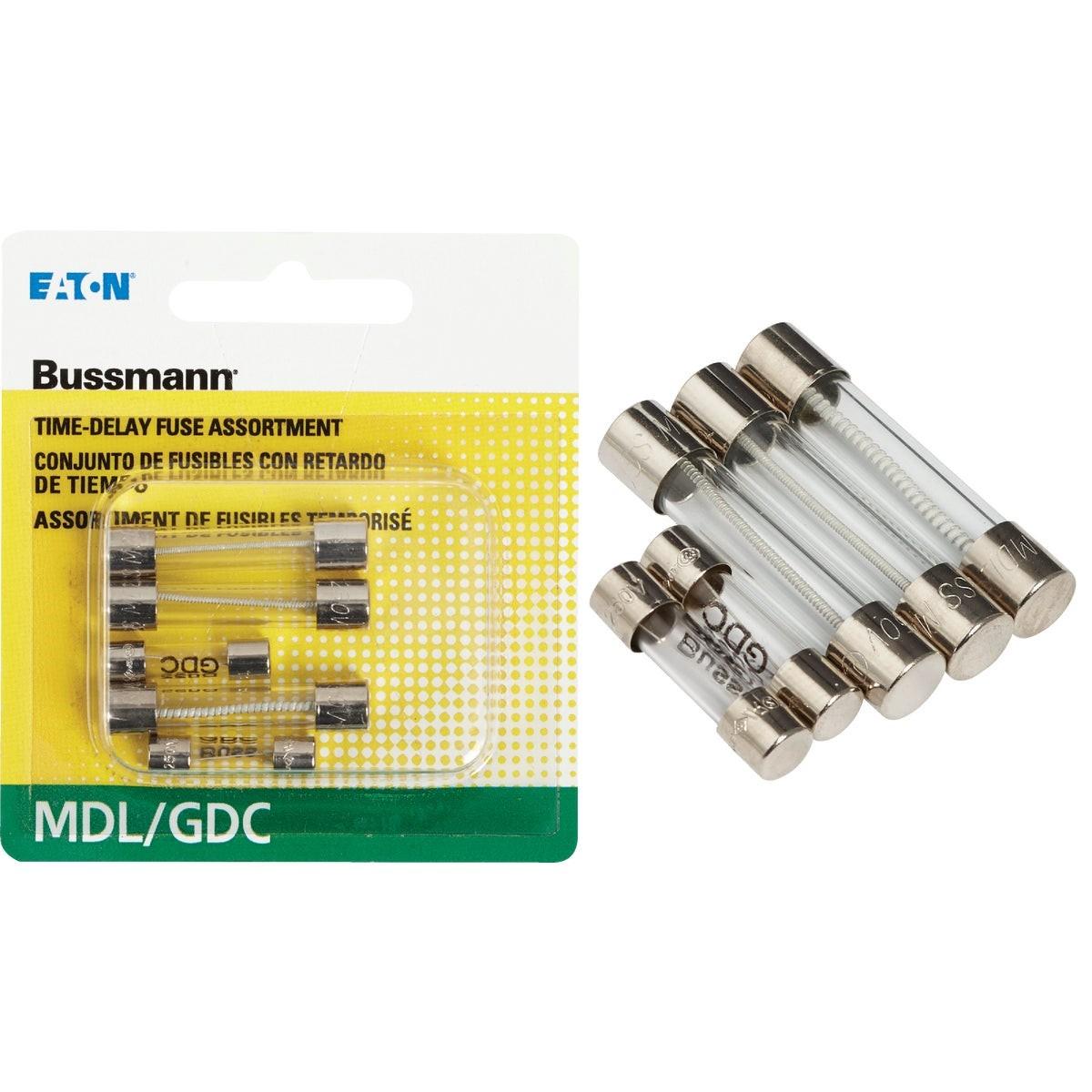

Eaton HEF-2 Electronic Fuse Kit 5-pack Mdl Gdc

Product Description

The EATON HEF-2 is an assorted time delay electronic fuse kit containing five glass tube fuses commonly used in low-voltage electronic equipment. The kit covers two physical standards: the U.S. standard size at 0.25 inches diameter by 1.25 inches length, and the European standard size at 5mm diameter by 20mm length. Time delay fuses in these form factors are the standard choice for protecting sensitive electronics from transient inrush currents without nuisance tripping. Electricians and electronics technicians keep this kit on hand to address the most frequently needed fuse replacements across a range of light commercial and consumer electronic devices.

This kit is suited for service and maintenance work on personal computers, peripherals, cash registers, and similar low-voltage electronic equipment that uses MDL-series or GDC-series glass tube fuses. The assortment covers three amperage ratings and both U.S. and European fuse body sizes, reducing the number of individual SKUs a technician needs to stock for routine service calls. It is practical for electrical contractors, field service technicians, and facilities maintenance professionals.

Key Features

• Time delay (slow-blow) construction protects electronics from inrush current without nuisance tripping
• Covers U.S. standard glass tube size: 0.25 inches diameter by 1.25 inches length
• Covers European standard glass tube size: 5mm diameter by 20mm length
• Contains five fuses: MDL1/2, MDL1, MDL2, GDC1, and GDC2 — one each
• Addresses the most commonly needed amperage ratings in a single pack

Compatibility

Contains Model No. MDL1/2, Model No. MDL1, Model No. MDL2, Model No. GDC1, and Model No. GDC2. Designed for use in personal computers, peripherals, cash registers, and other equipment requiring MDL-series or GDC-series glass tube time delay fuses.

Installation Notes

Fuse replacement should be performed by a qualified electrician or trained technician. Always de-energize and unplug the equipment before replacing a fuse. Verify the replacement fuse amperage and physical size match the equipment manufacturer's specification before installation. NEC and equipment safety standards require that fuses be replaced only with the correct type and rating.

Technical Specifications

• Fuse Type: Time delay (MDL and GDC series)
• Amperage Ratings Included: 0.5A, 1A, 2A
• U.S. Standard Size: 0.25 inches diameter by 1.25 inches length
• European Standard Size: 5mm diameter by 20mm length
• Quantity: 5-pack (one of each model)
• Weight: 0.035 pounds
• UPC: 00051712161022

Standard Information

• Brand: EATON
• Manufacturer Part Number: HEF-2
