Eaton HEB-JW-RYC Buss Fuseholder 600 V 30 A 1 Pole

Product Description

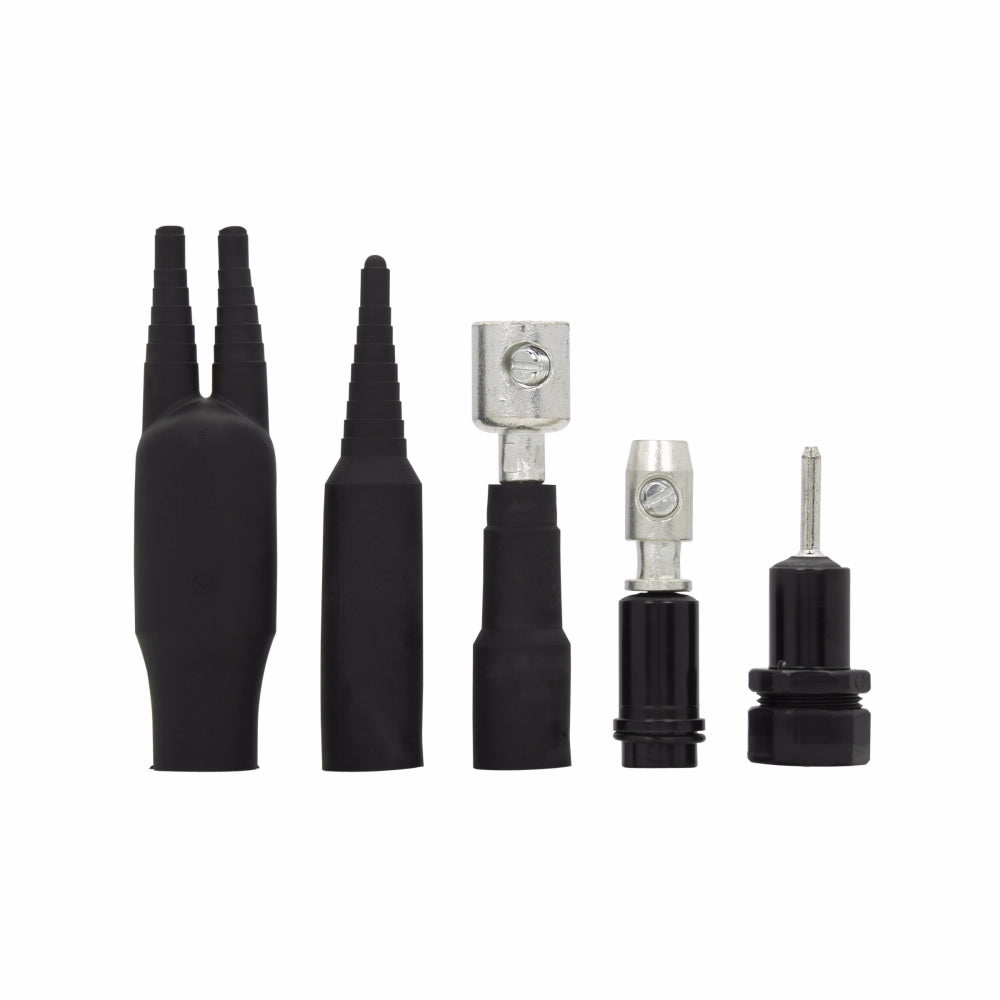

The Eaton HEB-JW-RYC Buss Fuseholder is a reliable solution for electrical applications with a voltage rating of 600 volts and a current rating of 30 amps. This breakaway in-line submersible fuseholder is designed for easy installation and maintenance. It accommodates line wires from two to twelve AWG and load wires from three to eight AWG.

• Breakaway in-line design
• Compatible with 13/32 x 1-1/2 inch fuses
• Temperature range from negative forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

The Eaton Buss Fuseholder is suitable for stationary machine equipment in factory and robotics applications. It is equipped with a copper setscrew for line and load connections, ensuring solid and secure electrical contact.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171271862

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Number of Poles: 1
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Temperature Rating: -40 to 221 deg F
• Connection Type: Copper Setscrew Line/Load
• Application: Stationary Machine Equipment in Factory and Robotics Applications
• Standards/Approvals: CE Certified, RoHS Compliant, UL File No. E14853 Guide IZLT2
• Suitable For Use With: 13/32 x 1-1/2 in BAF, FNM, FNQ, KTK Series Fuse
