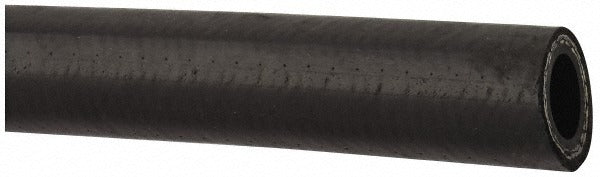

Eaton H90012-500R Lpg Hose 350 Psi 1-15/64 Inch Od

Product Description

The EATON H90012-500R is a black nitrile LPG hose rated for a maximum working pressure of 350 psi. Designed for liquefied petroleum gas service, this hose features a 1-15/64 inch outside diameter and meets RMA Class B standards. It is sold in 1-foot increments with a 5-foot minimum cut length and is available in a 500-foot coil. HVAC technicians, plumbers, and gas service professionals install this hose in systems where reliable, pressure-rated LPG transfer is required. The nitrile construction provides resistance to petroleum-based fuels, making it a dependable choice for gas distribution applications.

This hose is suited for residential and light commercial LPG applications where a flexible, pressure-rated connection is needed. Common installation scenarios include connection runs from supply lines to gas appliances, temporary service hookups, and gas distribution systems operating on propane or other liquefied petroleum gases. The 500-foot coil length makes it practical for contractors managing multiple cuts on a job site. Sold individually per foot increment with a 5-foot minimum cut requirement.

Key Features

• 350 psi maximum working pressure for LPG service
• 1-15/64 inch outside diameter nitrile hose construction
• Black color with RMA Class B rating
• Available in 1-foot increments with a 5-foot minimum cut length
• 500-foot total coil length for high-volume job site use
• Male fitting type for straightforward connection

Compatibility

Designed for use with liquefied petroleum gas (LPG) systems. Suitable for propane and other LPG applications requiring a flexible nitrile hose rated to 350 psi and conforming to RMA Class B standards.

Installation Notes

Installation should be performed by a licensed gas fitter or qualified HVAC technician in accordance with local codes and IFGC requirements. Shut off the gas supply completely before cutting, connecting, or replacing any section of LPG hose. Inspect all fittings and connection points for leaks using an approved leak-detection solution after installation. Do not exceed the rated working pressure of 350 psi during service or testing.
