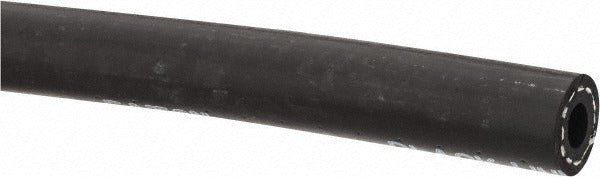

Eaton H90004-500R Lpg Hose 37/64 in Od 350 Psi Nitrile

Product Description

The EATON H90004-500R is a liquefied petroleum gas (LPG) hose designed for low-pressure gas distribution applications in residential, commercial, and light industrial settings. Constructed from black nitrile rubber, this hose maintains flexibility and resists degradation when exposed to LPG fuel service. It carries a maximum working pressure of 350 psi and features a 37/64 inch outside diameter. The hose terminates with a male fitting configuration and meets RMA Class B standards. Licensed plumbers and gas fitters are the typical installers for this type of hose. It is sold in one-foot increments and is cut from a 500-foot coil, with a 25-foot minimum cut length per order.

This hose is suited for LPG service lines in residential appliance connections, commercial kitchen gas supply, and light industrial propane distribution systems. Its nitrile construction is appropriate for use with liquefied petroleum gases including propane and butane. It is commonly used by plumbers, gas line contractors, and service technicians who need a field-cut hose solution for custom-length runs in both new construction and retrofit applications.

Key Features

• Nitrile rubber construction rated for direct LPG fuel contact
• 350 psi maximum working pressure
• 37/64 inch outside diameter for standard LPG fitting compatibility
• Male fitting type included
• Meets RMA Class B standards for LPG hose service
• Sold by the foot from a 500-foot coil with a 25-foot minimum cut length

Compatibility

Designed for use with liquefied petroleum gas (LPG) systems. Meets RMA Class B standards for LPG hose applications.

Installation Notes

Installation of LPG gas hose should be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the source and verify zero pressure before cutting or connecting the hose. Inspect all connections for leaks using an approved gas leak detection solution after pressurizing the system. Do not use thread sealants or compounds unless they are specifically rated for LPG service.
