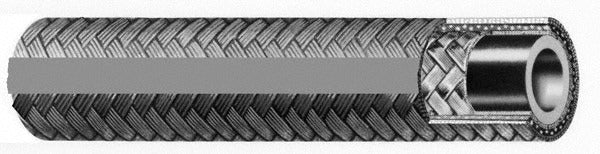

Eaton H54508-500R Hydraulic Hose 0.5 in Id 3000 Psi 500 Ft Coil

Product Description

The EATON H54508-500R is a bulk hydraulic hose designed for high-pressure fluid conveyance in industrial and mobile hydraulic systems. With a 0.5 inch inner diameter and a 13/16 inch outer diameter, this hose handles a maximum working pressure of 3,000 psi. The nitrile construction provides resistance to petroleum-based hydraulic fluids across a wide temperature range of -40 degrees F to 250 degrees F. The coil ships at 500 feet total length and is sold in 1-foot increments with a 10-foot minimum cut length, making it suitable for custom hose assembly shops and field service operations. Licensed hydraulic technicians and fluid power specialists are the primary installers.

This hose is suited for residential, commercial, and industrial hydraulic applications where a 0.5 inch ID, high-pressure line is required. Typical installation scenarios include mobile equipment, agricultural machinery, construction equipment, and industrial presses or power units that operate petroleum-based hydraulic fluid circuits. The 3-1/2 inch minimum bend radius must be observed during routing to maintain pressure integrity and hose service life. The black nitrile tube and cover resist degradation from standard hydraulic oils.

Key Features

• 0.5 inch inner diameter and 13/16 inch outer diameter for standard hydraulic line sizing
• 3,000 psi maximum working pressure for high-demand hydraulic circuits
• Nitrile construction compatible with petroleum-based hydraulic fluids
• Wide temperature range from -40 degrees F to 250 degrees F
• 3-1/2 inch minimum bend radius for flexible routing in tight installations
• 500-foot coil sold in 1-foot cut increments with a 10-foot minimum order quantity

Compatibility

Designed as an OEM-style replacement or bulk supply hose for industrial and mobile hydraulic systems requiring a 0.5 inch ID hose rated to 3,000 psi with nitrile tube construction.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic hose assembler. Depressurize and lock out the hydraulic system completely before cutting or connecting any hose. Confirm that all fittings, couplings, and adapters are rated at or above the 3,000 psi working pressure of the hose. Do not exceed the 3-1/2 inch minimum bend radius during routing, as overbending can cause internal damage and premature failure.
