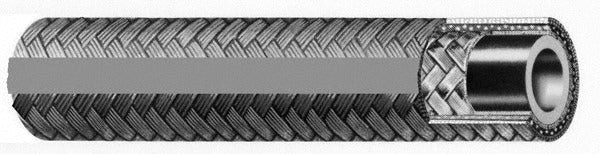

Eaton H54504-500R Hydraulic Hose 3000 Psi Nitrile

Product Description

The EATON H54504-500R is a hydraulic hose rated for 3,000 psi working pressure with an inside diameter of 0.25 inches and an outside diameter of 17/32 inches (approximately 0.53 inches). Constructed from nitrile, this hose handles petroleum-based hydraulic fluids in demanding industrial and mobile equipment applications. It operates across a temperature range of -40 degrees F to 250 degrees F, making it suitable for environments with wide thermal variation. The hose is black and ships in a 500-foot coil, priced and cut in 1-foot increments with a 20-foot minimum cut length. A licensed hydraulic or fluid power specialist typically handles specification and installation.

This hose is used in hydraulic circuits on mobile equipment, industrial machinery, and fluid power systems where moderate high-pressure lines are required. The nitrile construction resists petroleum-based oils and is a common material choice for general hydraulic service. The 2-inch minimum bend radius supports routing in tight spaces without kinking. It is sold from a 500-foot coil and cut to length, making it well suited for shops that fabricate hose assemblies in volume.

Key Features

• 3,000 psi maximum working pressure for general hydraulic service
• Inside diameter of 0.25 inches; outside diameter of 17/32 inches
• Nitrile construction resists petroleum-based hydraulic fluids
• Operating temperature range: -40 degrees F to 250 degrees F
• Minimum bend radius of 2 inches for routing in confined spaces
• 500-foot coil length, cut in 1-foot increments with a 20-foot minimum order quantity

Compatibility

Designed for use in general hydraulic fluid power systems requiring a 0.25-inch ID hose rated at 3,000 psi working pressure with nitrile-compatible petroleum-based fluids.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before cutting or connecting hose sections. Use proper hose cutting and crimping equipment to ensure clean ends and leak-free fittings. Verify that the selected fittings are rated to match or exceed the 3,000 psi working pressure of the hose assembly.
