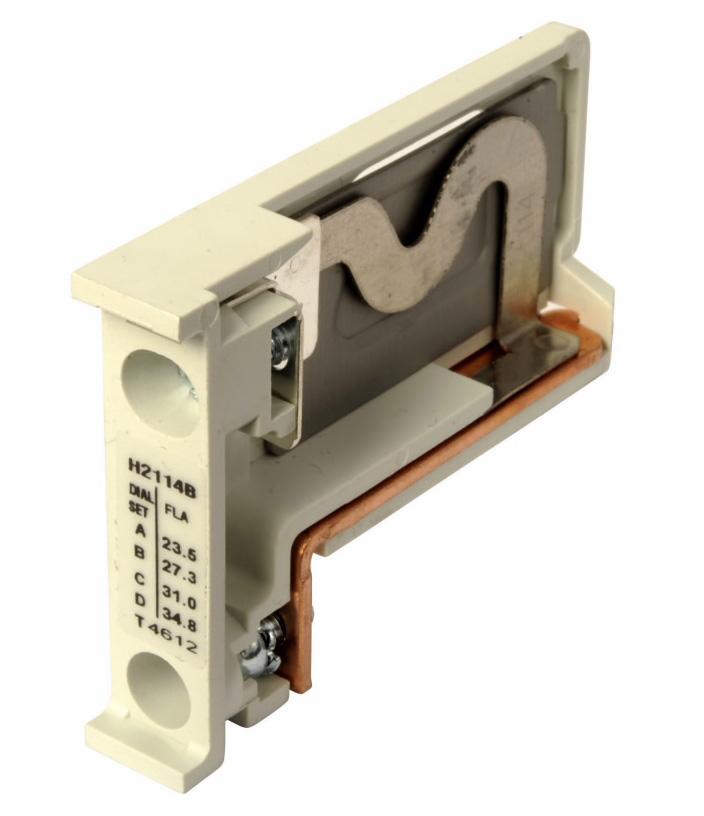

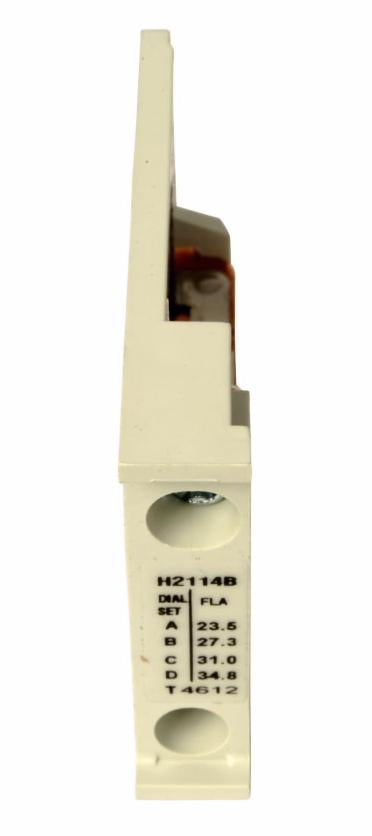

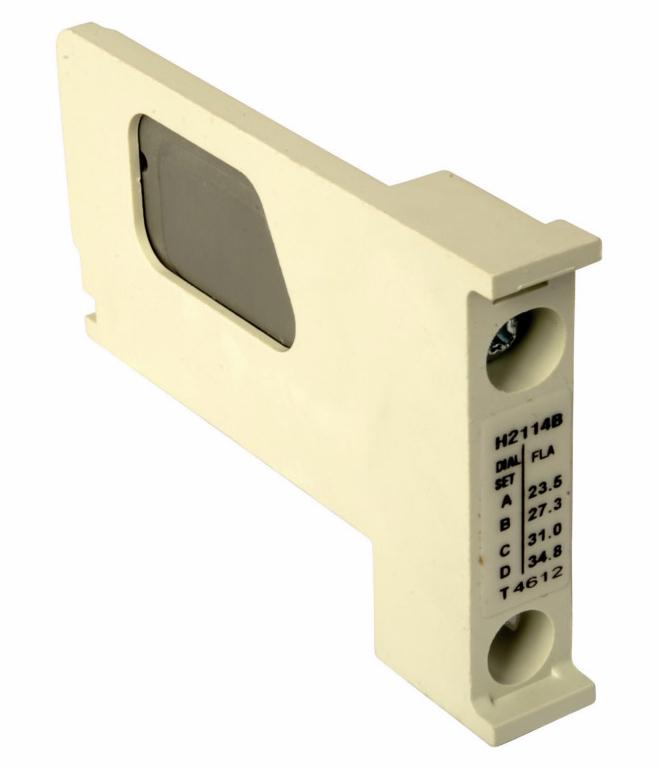

Eaton H2114B-3 Freedom NEMA heater coil

Product Description

The Eaton H2114B-3 Freedom NEMA heater coil is a fast trip, class 10 heater pack. It is NEMA and IEC certified and has a full load range of 23.5A 27.3A 31A 34.8A with dial positions A B C D respectively. It is compatible with overload relays 32 or 75A.

• Freedom/Definite Purpose Heater Pack
• Fast Trip, Class 10
• Full load range 23.5A 27.3A 31A 34.8A Dial positions A B C D respectively

Product Highlights

This heater coil is suitable for use with thermal overload relays, magnetic motor starters and motor controls.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2114B-3

Technical Specifications

• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2114B-3
• UPC: 782113004853
• Product Length/Depth: 1.8 in
• Product Height: 3.3 in
• Product Width: 1.7 in
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 23.5A 27.3A 31A 34.8A Dial positions A B C D respectively
• Overload relay: 32 or 75A
• Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
• Trip Type: Fast Trip, Class 10
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Category: Heater Element
• fullLoadAmpsMin: 23.5
• fullLoadAmpsMax: 34.8
• Family Series: Eaton Overload Relays
• Approvals: IEC
• Comments: Class 10
• Applications: Industrial Facilities and Factories
• Standard: CSA,UL
• Brand: Eaton
• Condition: New
