Product Description

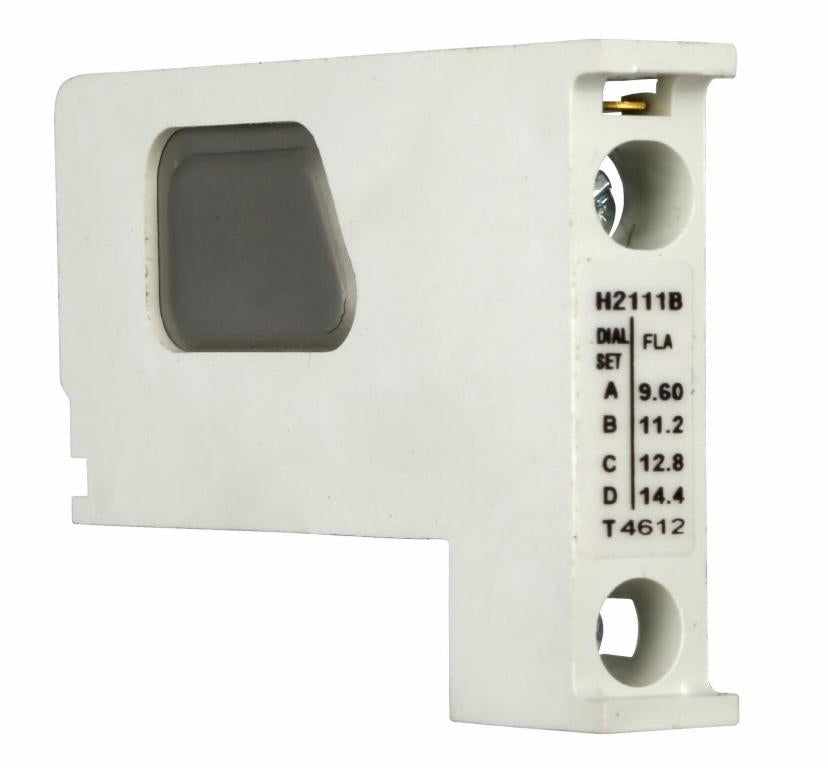

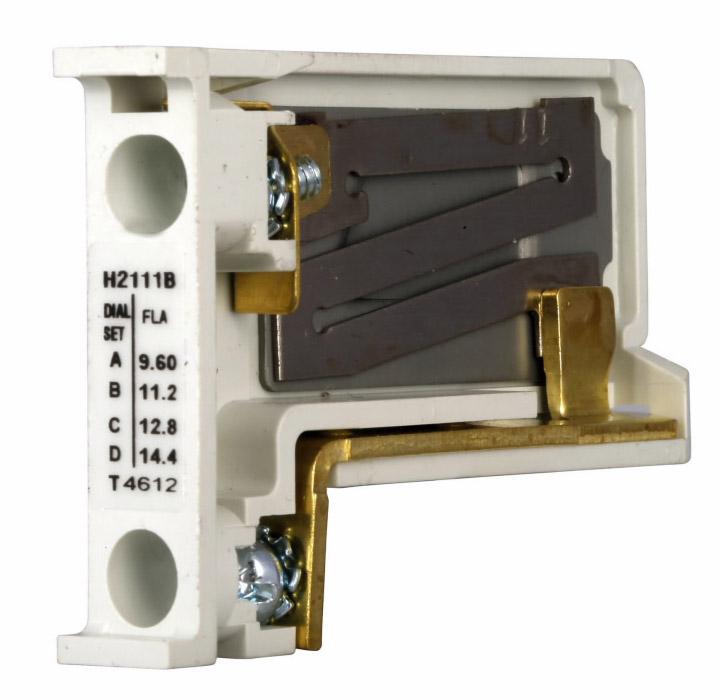

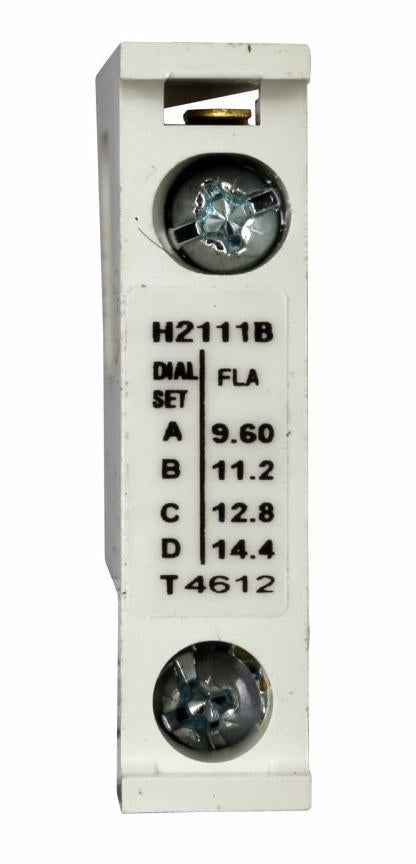

The Eaton H2111B-3 Freedom NEMA heater coil is a Freedom/Definite Purpose Heater Pack. It features Fast Trip, Class 10, NEMA, and IEC compliance. It has a full load range of 9.6A, 11.2A, 12.8A, and 14.4A at dial positions A, B, C, and D respectively, and an overload relay of 32 or 75A. This heater coil is suitable for use with thermal overload relays, magnetic motor starters & motor controls.
- Fast Trip, Class 10
- NEMA and IEC compliant
- Full load range 9.6A - 14.4A
Product Highlights
The Eaton H2111B-3 heater coil ensures reliable motor protection with its fast trip feature and wide current range.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: H2111B-3
-
Country of Origin: US
Technical Specifications
-
Product Name: Eaton Freedom NEMA heater coil
-
Catalog Number: H2111B-3
-
UPC: 782113004822
-
Product Length/Depth: 1.8 in
-
Product Height: 3.3 in
-
Product Width: 1.7 in
-
Certifications: CSA Certified UL Listed
-
Product Type: Heater coil
-
Design: NEMA, IEC
-
Full load current range: 9.6A 11.2A 12.8A 14.4A Dial positions A B C D respectively
-
Overload relay: 32 or 75A
-
Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
-
Trip Type: Fast Trip, Class 10
-
Type: Freedom/Definite Purpose Heater Pack
-
Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
-
Manufacturer: Eaton
-
Family: Freedom Series
-
Category: Heater Element
-
fullLoadAmpsMin: 9.6
-
fullLoadAmpsMax: 14.4
-
Dimensions (HxWxD): 3.3" x 1.7" x 1.8"
-
Alternate Mfr Part Number: H2111B-3
-
Brand: Eaton - Cutler Hammer
-
Manufacturer Part Number: H2111B-3
-
Overview: Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10 , NEMA, IEC , full load range 9.6A 11.2A 12.8A 14.4A Dial positions A B C D respectively, overload relay 32 or 75A
-
MPN: H2111B-3
-
Family Series: Eaton Overload Relays
-
Approvals: IEC
-
Comments: Class 10
-
Net Weight: 0.2 lbs
-
Gross Weight: 0.2 lbs
-
Item Number: H2111B-3
