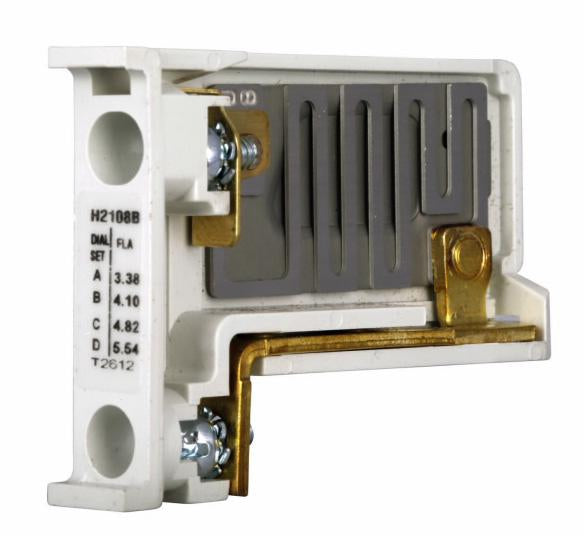

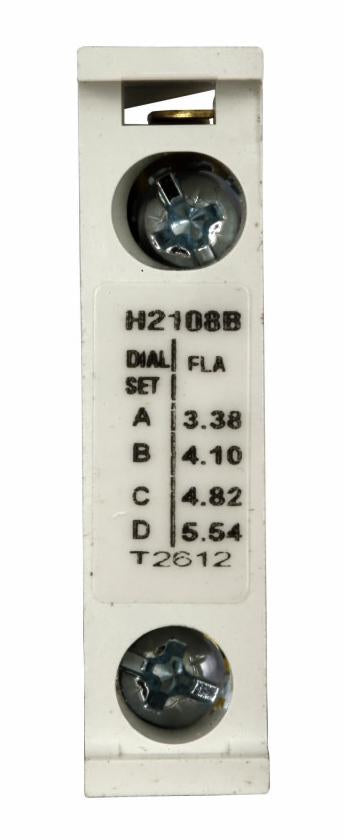

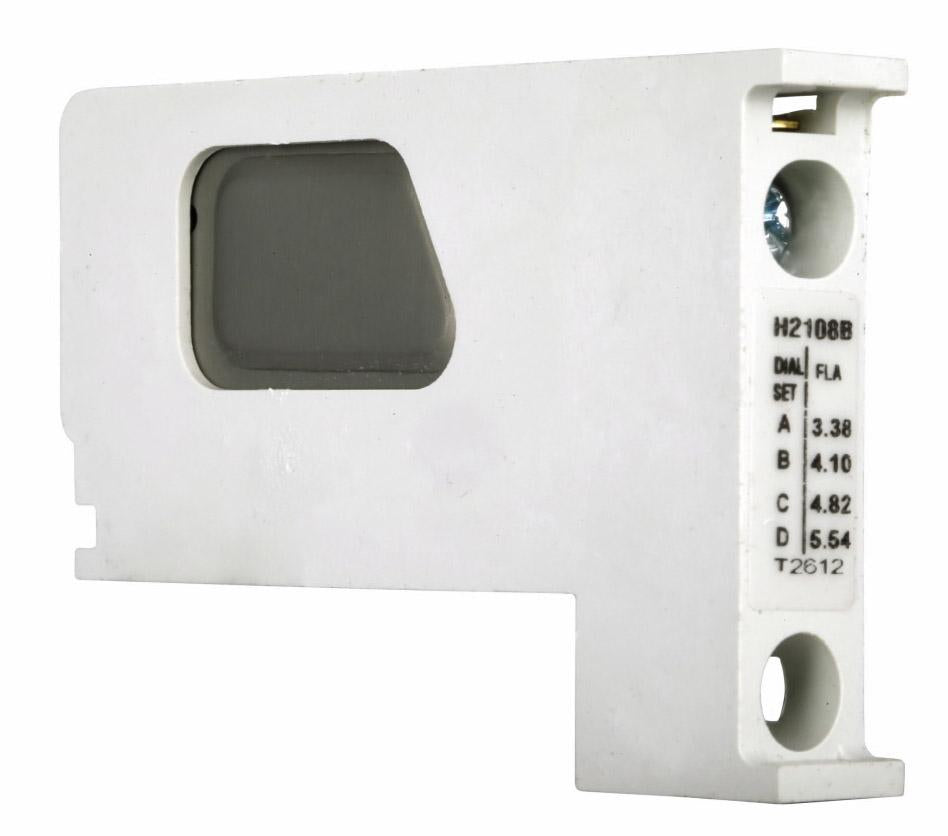

Eaton H2108B-3 Freedom NEMA heater coil (3 pack)

Product Description

The Eaton H2108B-3 Freedom NEMA heater coil is a Freedom/Definite Purpose Heater Pack with Fast Trip, Class 10, NEMA, and IEC compliance. It features a full load range of 3.38A, 4.1A, 4.82A, and 5.54A at dial positions A, B, C, and D respectively, and an overload relay of 32 or 75A. It is suitable for use with thermal overload relays, magnetic motor starters & motor controls.

• Freedom/Definite Purpose Heater Pack
• Fast Trip, Class 10
• Full load range 3.38A 4.1A 4.82A 5.54A Dial positions A B C D respectively
• Overload relay 32 or 75A

Product Highlights

Eaton's H2108B-3 heater coil ensures reliable overload protection in various industrial applications. It is designed for use with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2108B-3
• Country of Origin: India

Technical Specifications

• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2108B-3
• UPC: 782113004792
• Product Length/Depth: 1.8 in
• Product Height: 3.3 in
• Product Width: 1.8 in
• Certifications: CSA Certified UL Listed
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 3.38A 4.1A 4.82A 5.54A Dial positions A B C D respectively
• Overload relay: 32 or 75A
• Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z
• Trip Type: Fast Trip, Class 10
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z
• Manufacturer: Eaton
• Family: Freedom Series
• Category: Heater Element
• fullLoadAmpsMin: 3.38
• fullLoadAmpsMax: 5.54
• Application: For series C size 00-0, series B sizes 1 to 2, 5 to 8, series C IEC sizes A to F, series B IEC sizes G to K, IEC sizes P to X, Z starter, industrial facilities and factories facility applications
• Enclosure Type: NEMA 00/0/1/2/5/8
• Size: 1.8 x 1.8 x 3.3
• Series: Freedom
• Current Rating: 3.38 4.1 4.82 5.54 Dial positions A B C D respectively A
• For Use With: Heater
• Manufacturer Part Number: H2108B-3
• Numeric ID: 4388640
• Country of Origin: India
