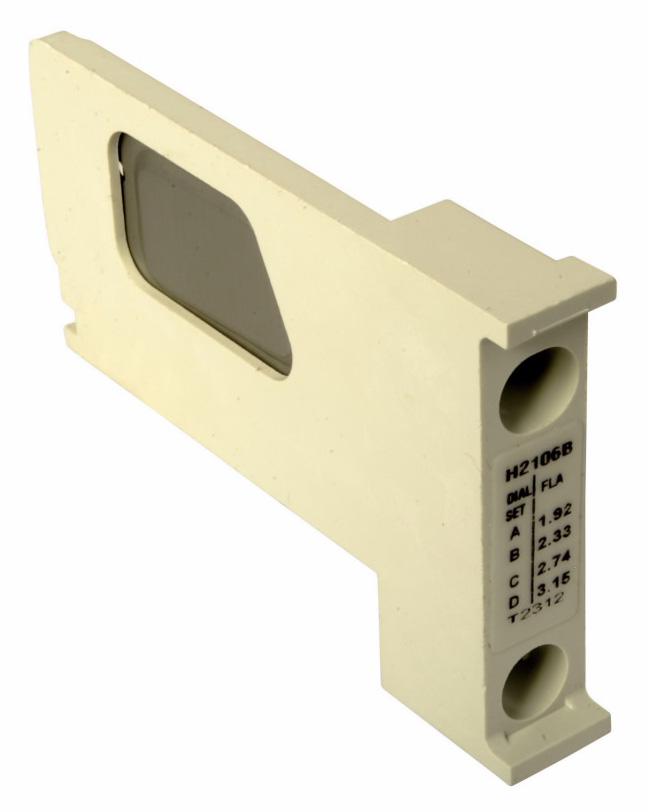

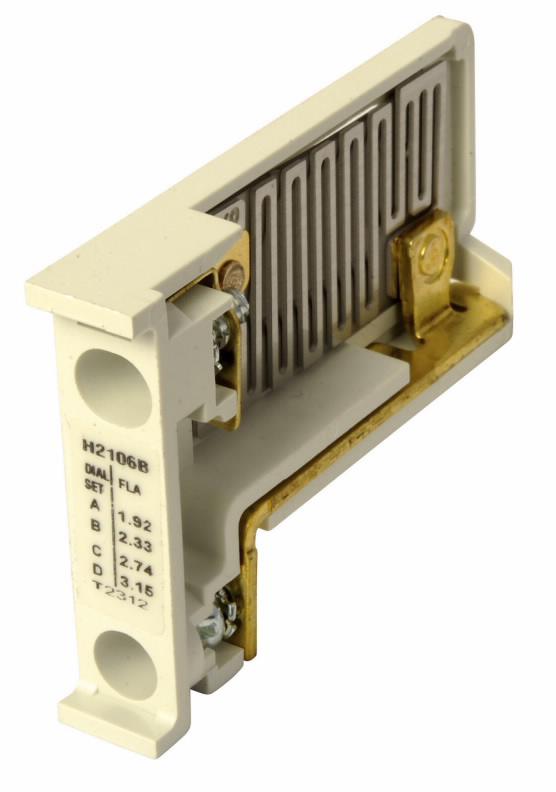

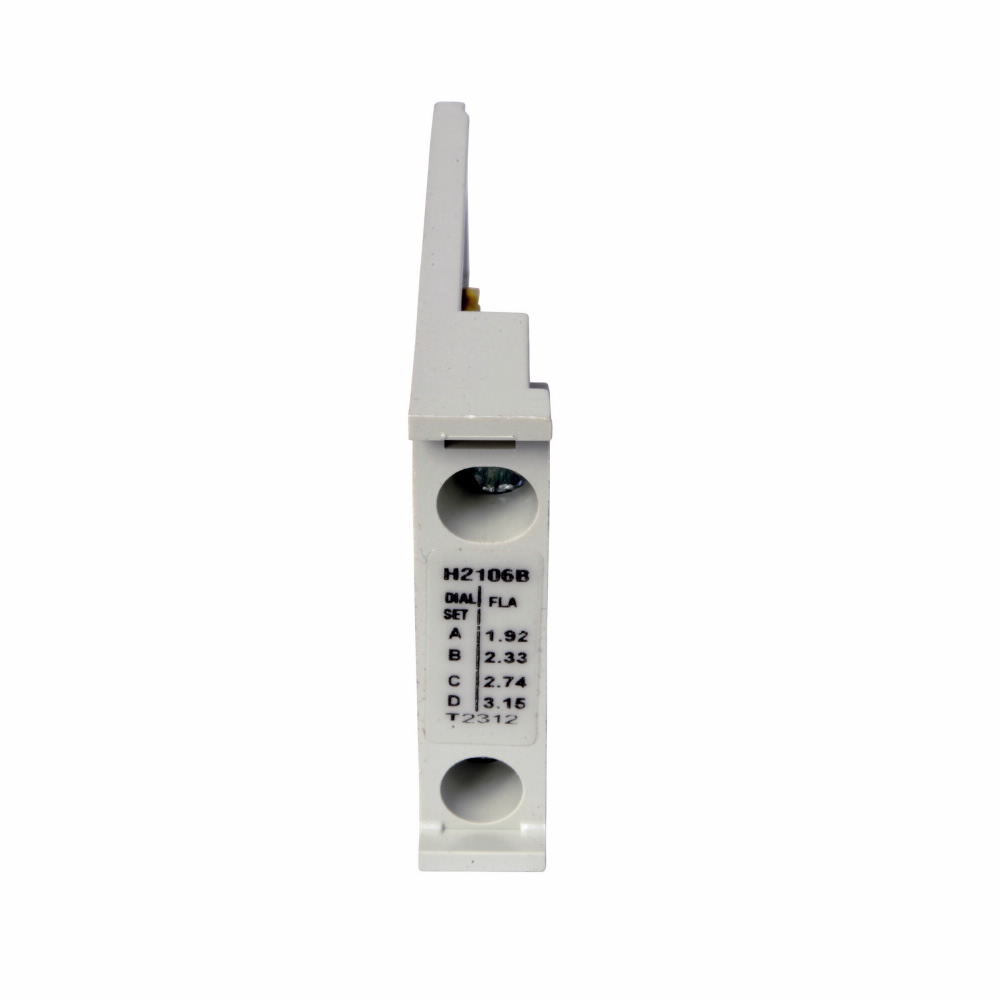

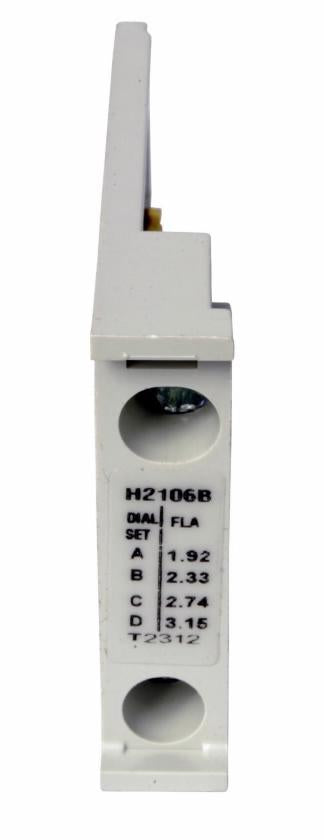

Eaton H2106B-3 Freedom Heater Coil Pack

Product Description

The EATON H2106B-3 freedom heater pack is a fast trip, class 10, NEMA, and IEC compliant heater pack. It has a full load range of 1.92A 2.33A 2.74A 3.15A at dial positions A B C D respectively, and an overload relay of 32 or 75A. It is suitable for use with thermal overload relays, magnetic motor starters & motor controls.

• Freedom/Definite Purpose Heater Pack
• Fast Trip, Class 10
• NEMA, IEC

Product Highlights

The H2106B-3 heater coil pack is designed for overload protection up to 144 A and is compatible with CE or CN non-reversing and reversing contactors.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: H2106B-3
• Country of Origin: United States

Technical Specifications

• GTiN: 00782113004778
• Type: H
• Brand: Eaton
• Height: 1.8 Inch
• Length: 3.3 Inch
• Trip Type: Class 10,Fast Trip
• Product UPC: 78211300477
• 12-Digit UPC: 782113004778
• Applications: Ind Facilities & Factories - Facility - Other
• Catalog Number: H2106B-3
• Product Length/Depth: 3.3 in
• Product Width: 1.6 in
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 1.92A 2.33A 2.74A 3.15A Dial positions A B C D respectively
• Overload relay: 32 or 75A
• Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z
• Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P-X, Z
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Category: Heater Element
• fullLoadAmpsMin: 1.92
• fullLoadAmpsMax: 3.15
• Dimensions (HxWxD): 3.3" x 1.6" x 1.8"
• Size: 3.3 x 1.6 x 1.8 in
• Enclosure Type: NEMA 00/0/1/2/5/8
• Country of Origin: United States
• Net Weight: 0.1 lbs
• Gross Weight: 0.15 lbs
